PRO washlight with 6in1 COB LEDs, color rendering index (CRI) >90 and very large zoom range
FUTURELIGHT EYE-19 HCL Zoom LED Moving Head Wash

PRO washlight with 6in1 COB LEDs, color rendering index (CRI) >90 and very large zoom range-MainBild

2 - 36°

PRO washlight with 6in1 COB LEDs, color rendering index (CRI) >90 and very large zoom range

FUTURELIGHT EYE-19 HCL Zoom LED Moving Head Wash

The article is no longer in our assortment.

No. 51841313

Print product

Product badge

Here you find the manual and downloads for
FUTURELIGHT EYE-19 HCL Zoom LED Moving Head Wash

Features

PRO washlight with 6in1 COB LEDs, color rendering index (CRI) >90 and very large zoom range

Compact design
The scenes can be modified via the Control Board or via an external controller and loaded into the memory
Number of scenes can be changed individually
19 powerful LEDs 17 W high-power 6in1 HCL RGBALC (homogenous color mix)
2 segments controlled separately
Positioning within 630° PAN, 265° TILT
Auto position correction (feedback)
Exact 16 bit resolution at Dimmer
Zoom motor driven
Pulse-width modulation variable; color selection; color blend stepless
Strobe effect
Integrated show programs
The device is cooled by temperature-controlled fan
Control via DMX; RDM; master/slave function; sound to light via microphone; W-DMX by wireless solution upgradeable
Preprogrammed in Light´J; LED PC-Control 512; Light Captain
Flicker-free
With a beam angle of 2° - 36°
Very high color rendering index (CRI)
Mains input and output for power linking up to 8 units
For application areas such as: Theater; clubs/dancing school; Trade fair and shop fitting; installation; stage; concerts/FoH's; rental
Very quiet working noise

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket, 1 x XLR cable, 1 x declaration of conformity

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	300 W
IP classification:	IP20
Power connection:	Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x PowerCON (gray), mounting version
Lamp type:	LED lamp
LED type:	19 x 17 W high-power 6in1 HCL RGBALC (homogenous color mix)
Max. TILT movement:	265° positioning auto position correction (feedback)
Max. PAN movement:	630° auto position correction (feedback)
Flash rate:	1 - 18 Hz
Equipment:	Zoom motor driven
DMX channels:	16; 19; 20; 33
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan
Control:	DMX; RDM; master/slave function; sound to light via microphone; W-DMX by wireless solution upgradeable
Preprogrammed in:	Light´J; LED PC-Control 512; Light Captain
Projection:	Flicker-free
Beam angle:	2° - 36°
Beam angle (1/2 peak):	2 - 15°
Beam angle (1/10 peak):	7 - 36°
Color rendering index (CRI):	90 Ra
Illuminance in Lux (lx):	Narrow red (R) 3m: 2300 lx, 6m: 617 lx Narrow green (G) 3m: 5241 lx, 6m: 1329 lx Narrow blue (B) 3m: 1118 lx, 6m: 285 lx Narrow amber (A) 3m: 10211 lx, 6m: 2665 lx Narrow lime 3m: 16696 lx, 6m: 4389 lx Narrow cyan 3m: 2453 lx, 6m: 652 lx Narrow all 3m: 34599 lx, 6m: 9025 lx Wide red (R) 3m: 201 lx, 6m: 57 lx Wide green (G) 3m: 469 lx, 6m: 132 lx Wide blue (B) 3m: 105 lx, 6m: 30 lx Wide amber (A) 3m: 877 lx, 6m: 245 lx Wide lime 3m: 1384 lx, 6m: 387 lx Wide cyan 3m: 228 lx, 6m: 64 lx Wide all 3m: 2969 lx, 6m: 827 lx
Housing color:	Black
Dimensions:	Width: 25,0 cm Depth: 34,2 cm Height: 45,8 cm
Weight:	14,40 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397659658	16,15 kg	52cm x 42cm x 33cm

Accessories

Loading accessories. Please wait...

Support

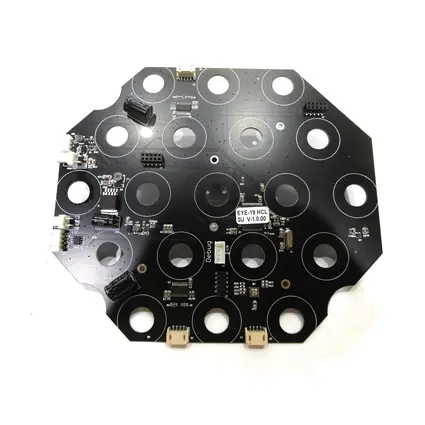

Spare parts

PCB (Light Sensor) DMH-90 (OP001B-HJ01)

PCB (Magnet Sensor) DMB (SC001B) right pins

timing belt 468-6.5mm-3M DMH (Tilt)

More 6 spare parts

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
