Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	230 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 3.15 A fuse replaceable
Lamp type:	LED lamp
LED type:	1 x 200 W COB (chip-on-board) warm white (WW)
Equipment:	Focus manual; zoom manual
Gobos:	Outside diameter 85mm Image diameter 60mm
DMX channels:	2; 1
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Cooling:	Low-noise cooling fan
Control:	DMX
Fixtures available for:	LED PC-Control 512; Light Captain
Projection:	Flicker-free
Beam angle:	15° - 28°
Beam angle (1/2 peak):	15 - 28°
Beam angle (1/10 peak):	15 - 28°
Color rendering index (CRI):	97 Ra
Housing color:	Black
Attachment system:	Mounting bracket
Dimensions:	Length: 74.5 cm Width: 27.6 cm Height: 27.7 cm
Weight:	12.00 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397625721	13,75 kg	79cm x 32,5cm x 33cm

Spare parts

LED COB 200W WW Profile 200 (GT-COB4246W)

Housing part (Filterframe holder) Profile 200 black

housing part (Bracket filter frame) Profile 200, black

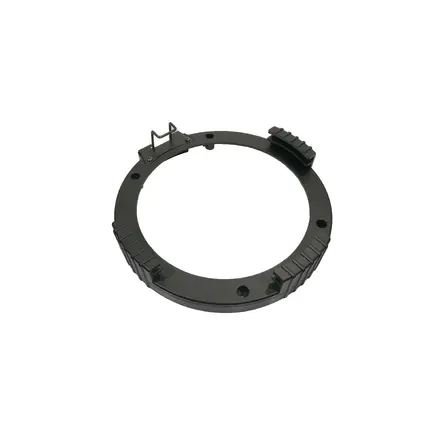

Housing part (shutter blade handle ring) Profile 200 black

Housing part (front cover) Profile 200, 15-28°

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
51840920-Support-124500-1.0000-51840915-LED-PC-Control-Fixtures-de.zip (2 KB)	1.0000	de
51840920-Support-136664-Fixture-fuer-Colorchief-V2X-de.zip (225 B)	0.0000	de

All images

Name	Version	Language
51840920-Images-.zip

Video link

https://www.youtube-nocookie.com/embed/1gH0tCGn08c

FUTURELIGHT Profile 200, 15-28°

Double tap or pinch to zoomHover to zoom

Bildergalerie öffnen

Detail images (7 overall)

FUTURELIGHT Profile 200, 15-28°

The article is no longer in our assortment.

No. 51840920

15 - 28°

PRO profile spotlight, warm white 200 W LED, zoom, CRI >90, extremely quiet

Glass front lens
1 LED 200 W COB (chip-on-board) warm white (WW)
Focus manual; zoom manual
Dimmer electronic; Dimmer speed (step response) adjustable
Strobe effect
The device is cooled by low-noise cooling fan
Control via DMX
Fixtures available for LED PC-Control 512; Light Captain
Flicker-free
With a beam angle of 15° - 28°
Very high color rendering index (CRI)
With mounting bracket
Mains input and output for power linking up to 8 units
For application areas such as: Stage; wedding/gala/events; Trade fair and shop fitting; theater; rental; video and photography
Application possibility: Suspended; on stand

Technical specifications

Spare parts

User manual

Downloads

Manufacturer information

Scope of delivery

Accessories

Loading accessories. Please wait...

Futurelight Profile-200 profile spotlight

LED spotlights for stages

Do you have high demands on your headlamps? You need a solution for your theatre or show stage? With the Futurelight Profile-200, you can combine the advantages of LEDs with your high expectations.

Excellent optical properties

Very high demands are often placed on profile headlights in particular. And often enough, LED versions could not meet expectations - but that is now a thing of the past. The Profile-200 is characterized by its excellent optical properties and very quiet operation. This makes it particularly suitable for use in the theatre or on show stages.

Very good color rendering

The warm white light is not only very bright due to a 200 watt LED. It also has excellent color rendering properties. The CRI value is over 90. The spot comes with a gobo frame and 4 profile sliders. Let this LED spotlight convince you!
