PRO Moving Head with two tiltable LED bars and six powerful, white beams

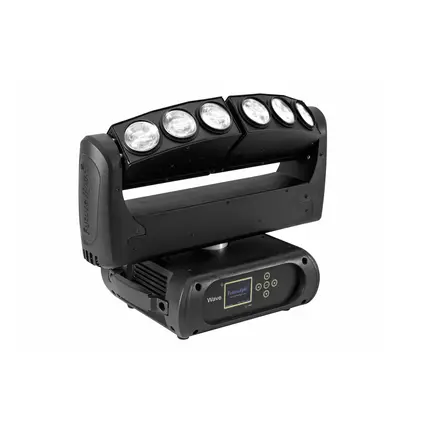

FUTURELIGHT Wave LED Moving Bar

FUTURELIGHT

PRO Moving Head with two tiltable LED bars and six powerful, white beams

FUTURELIGHT Wave LED Moving Bar

Stock for approx. 12 wk(s)
799,00
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 51839000

Features
  • TILT movement for each LED bar separately and steplessly adjustable
  • Equipped with six white 20 W LEDs
  • 14, 15, 17 or 18 DMX channels selectable
  • Each LED can be controlled individually
  • Perfect as beam effect into the audience
  • Narrow illumination angle
  • Supports RDM (Remote Device Management)
  • Functions: built-in programs, shutter sequences, dimmer, strobe effect with variable speed, sound-control, Master/Slave operation
  • Automatic position correction
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • PAN angle switchable between 540° and 630°
  • Random strobe effect
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
  • The scenes can be modified via the Control Board or via an external controller and loaded into the memory
  • Number of scenes can be changed individually
  • Software upload by optional accessories via DMX link
  • Switch-mode power supply for operation between 100 and 240 Volts
  • Power connection via Neutrik PowerCon jack and included power cable
  • Feed-through output allows to power up to 8 devices
  • DMX control via every standard DMX controller
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
DMX channels:14/15/17/18
DMX connection:5-pin and 3-pin XLR
Sound-control:via built-in microphone
Flash-rate:20 Hz
LED type:20 W, white
LED number:6
Maximum PAN-movement:630°
Maximum TILT-movement:240°
Beam angle:2.5°
Dimensions (L x W x H):250 x 468 x 325 mm
Color:Black
Weight:9.5 kg
Cooling fan:yes, temperature controlled
Power consumption:200 W
Beam angle:2.5 °
Lamp type:LED lamp
IP classification:IP20
Laser class:Without laser
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397513134 12,40 kg 54cm x 40cm x 34cm
Accessories
Loading accessories. Please wait...
Support

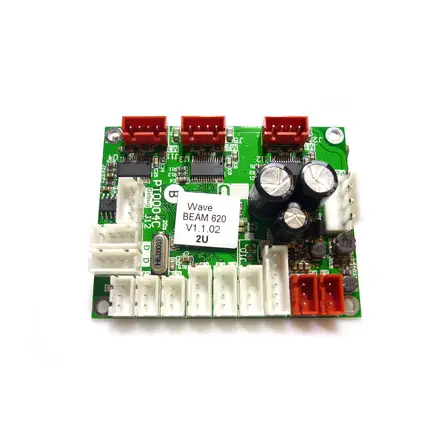

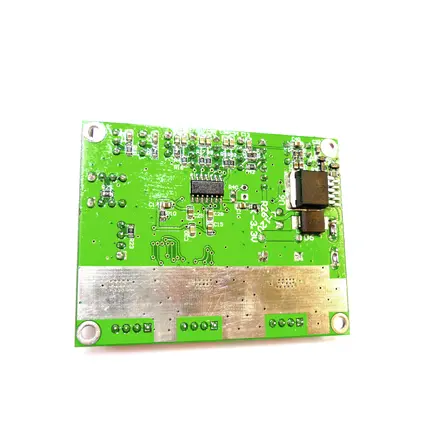

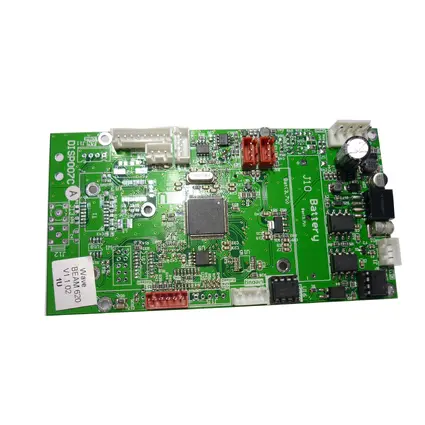

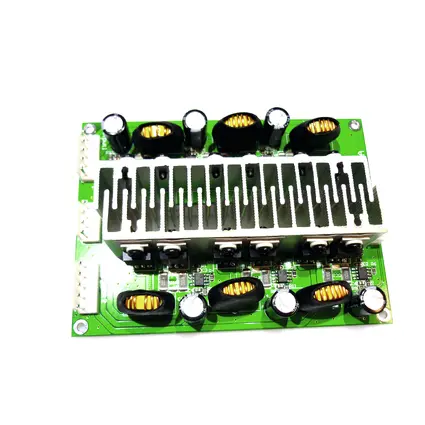

Spare parts
