Universal Moving Head
FUTURELIGHT PHS-210 PRO-Head Spot

FUTURELIGHT

Universal Moving Head

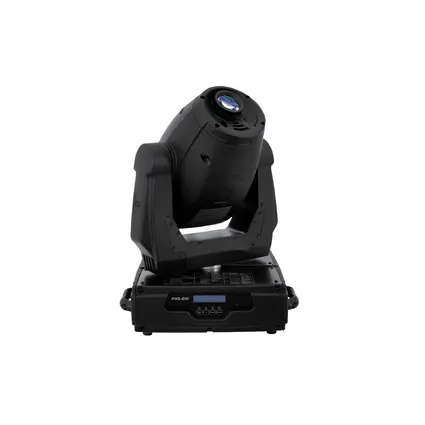

FUTURELIGHT PHS-210 PRO-Head Spot

Item no. 51838166

Features

Universal Moving Head

  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • 56 preprogrammed scenes in Program Run for stand-alone operation
  • Number of scenes in Program Run can be changed individually
  • The scenes in Program Run can be modified via the Control Board or via an external controller and loaded into the memory
  • 7 built-in programs can be called up via DMX controller
  • Sound-controlled via built-in microphone
  • Color-wheel with 7 different, dichroic color filters and white and additionally UV-filter
  • Switchable color change (mode 1: only full colors, mode 2: color-change at every position)
  • Rainbow effect with adjustable speed
  • Gobo-wheel with 7 rotating gobos plus open
  • With gobo-shake function
  • Manual focus
  • Strobe effect with 1-10 flashes per second
  • Mechanic dimmer
  • PAN-angle switchable between 630° and 540°
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Lightbeam with 13° radiation angle
  • Software-upload by optional FUTURELIGHT ULB-1 upload box via DMX link
  • Control-Board with LCD-display and foil-keyboard for adjusting the DMX-starting address, PAN/TILT-Reverse, Program, Reset, lamp on/off, operating hours
  • For MSD/HSD 250 or MSD 250/2 lamp
  • DMX control via every standard DMX controller
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:550,00 W
Weight:19,20 kg
DMX channels:11
DMX connection:3-pin XLR
Flash-rate:10 Hz
Color-wheel:7 dichroic filters, UV-filter plus open
Rotating gobo-wheel:7 gobos and open
Outside diameter of the gobos:27 mm
Image diameter of the gobos:22 mm
Maximum PAN-movement 630°:in 2.5 s
Maximum TILT-movement 265°:in 1.5 s
Length of base:400 mm
Width of yoke:350 mm
Height (head horizontal):445 mm
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397406894 22,00 kg 44cm x 43,5cm x 65cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
51838166-Manual-55830-1.100-de_en.pdf (17 MB) 1.100 de_en
DMX protocol
Name Version Language
51838166-DMX-53599-1.000-de_en_fr_es.xls (244 KB) 1.000 de_en_fr_es
Support
Name Version Language
51838166-Support-58386-1.000-de_en_fr_es.dsp (13 KB) 1.000 de_en_fr_es
Catalog pages
Service document
Name Version Language
51838166-Service-55858-1.000-en.pdf (3 MB) 1.000 en
Video file
Name Version Language
51838166-Video-55611-es_fr_en_de.flv (30 MB) 0.000 es_fr_en_de
All images
Name Version Language
51838166-Images.zip
