Prism effect
FUTURELIGHT EVO-5 effect-projector

FUTURELIGHT

Prism effect

FUTURELIGHT EVO-5 effect-projector

Item no. 51837558

Features
  • DMX-controlled operation or stand-alone operation with Master/Slave function (1 slave)
  • Multicolor color fan
  • Gobo-wheel with 5 rotating gobos
  • Rotating prism
  • For CDM 150 lamp
  • DMX control via every standard DMX controller
Technical specifications
Power supply:230 V AC, 50 Hz
Beam angle:20°
DMX channels:5
DMX connection:3-pin XLR
Sound-control:via built-in microphone
Dimensions (L x W x H):360 x 300 x 290 mm
Weight:9.5 kg
Beam angle:20 °
Power consumption:200 W
Number of DMX channels:5
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397185751 11,00 kg 50cm x 38cm x 33,5cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00015817.pdf 1.30 es/fr/en/de
DMX protocol
Name Version Language
00006924.xls 0.00 es/fr/en/de
Support
Name Version Language
00014137.dsp 0.00 es/fr/en/de
Data sheet
Name Version Language
00006009.pdf 0.00 en
00006106.pdf 8.00 fr
00006135.pdf 8.00 es
00006169.pdf 1.00 de
Press report
Name Version Language

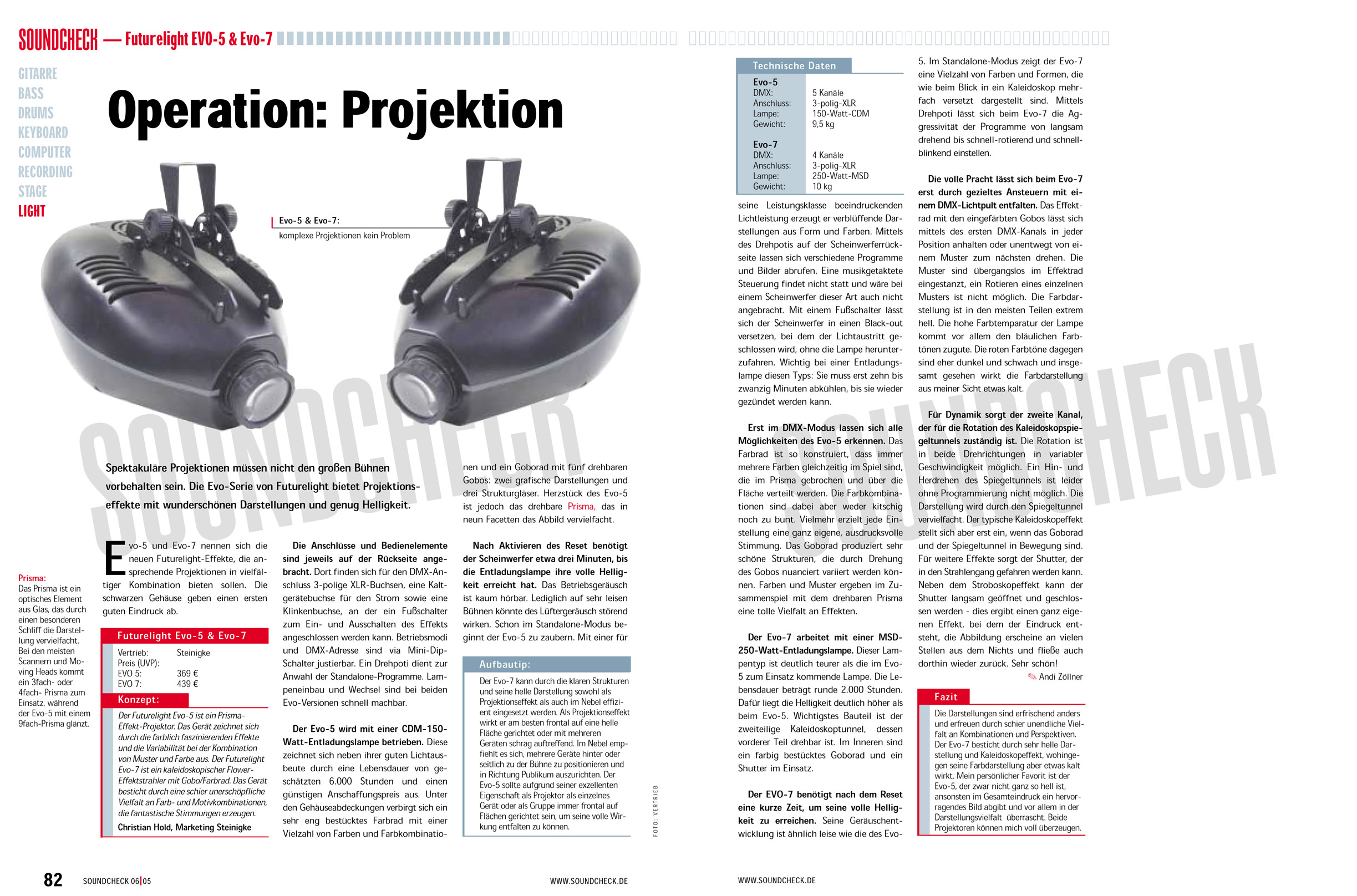

Soundcheck_06_05
0.00 de
Service document
Name Version Language
00006040.pdf 1.00 de
Video file
Name Version Language
00040122.flv 0.00 de/en/fr/es
All images
Name Version Language
51837558.zip
