Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	300 W
Gobos:	Gobo wheel with rotating gobos, 5 glass gobos an open Outside diameter 32mm Image diameter 27mm Shake effect
DMX channels:	4
Control:	Sound to light via microphone
Beam angle (1/2 peak):	19°
Dimensions:	Width: 30 cm Depth: 36 cm Height: 29 cm
Weight:	6.90 kg
Beam angle:	19°
DMX channels:	4
Rotating gobo-wheel:	5 gobos
Outside diameter of the gobos:	32 mm
Image diameter of the gobos:	27 mm
DMX connection:	3-pin XLR
Sound-control:	via built-in microphone
Dimensions (L x W x H):	360 x 300 x 290 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397235258	7,35 kg	50cm x 38cm x 33,5cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

DMX protocol

Name	Version	Language
51837515-DMX-15363-1.0000-de_en_es_fr.xls (28 KB)	1.0000	de_en_es_fr

Support

Name	Version	Language
51837515-Support-24238-1.0000-de_en_es_fr.dsp (7 KB)	1.0000	de_en_es_fr

Video file

Name	Version	Language
51837515-Video-40119-de_en_es_fr.flv (4 MB)	0.0000	de_en_es_fr

All images

Name	Version	Language
51837515-Images-.zip

Video link

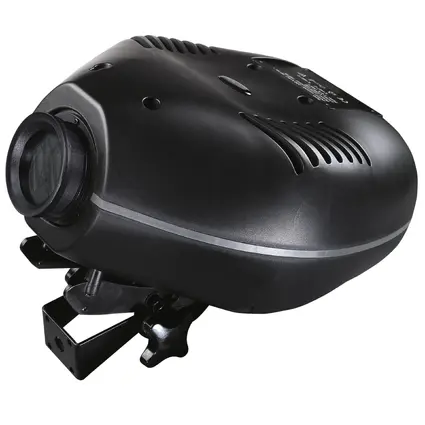

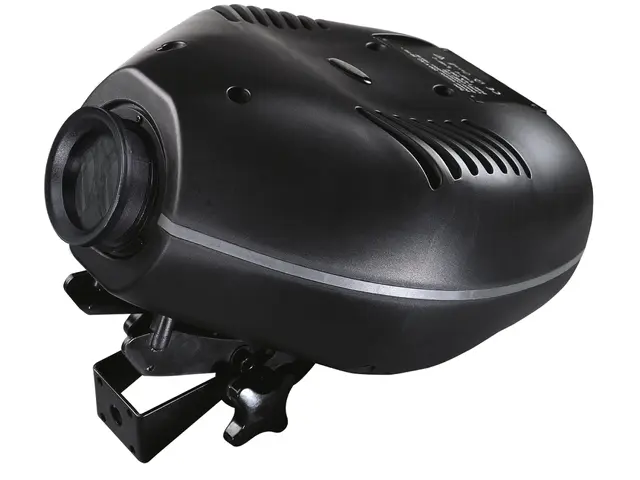

FUTURELIGHT EVO-1 gobo-projector

The article is no longer in our assortment.

No. 51837515

Gobo mood projector for powerful halogen lamp

DMX-controlled operation or stand-alone operation with Master/Slave function
Manual focus
Lightbeam with 20° or 25° radiation angle
Electronic dimmer
Sound-controlled via built-in microphone
Microphone-sensitivity adjustable via rotary-control
All settings via DIP switches
8 built-in programs can be called up via DMX controller
Blackout-socket
Blackout applicable in Stand Alone mode via optional FUTURELIGHT Easy-1 remote control
For EHJ 24 V/250 W G-6.35 lamp
DMX control via every standard DMX controller
Gobo wheel with rotating gobos, 5 glass gobos an open
shake effect
Control via sound to light via microphone
