Compact RDM interface

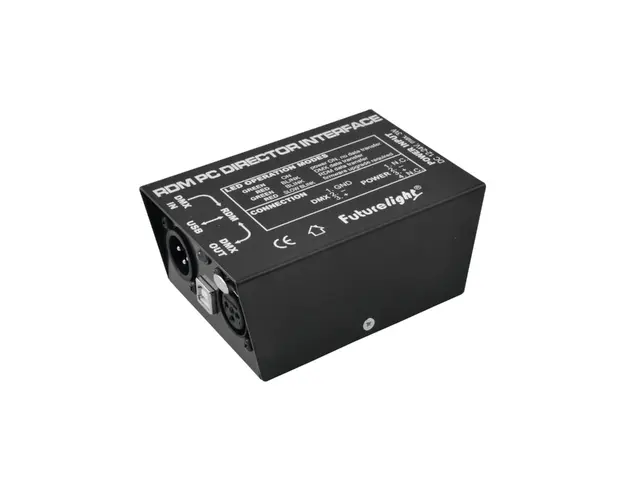

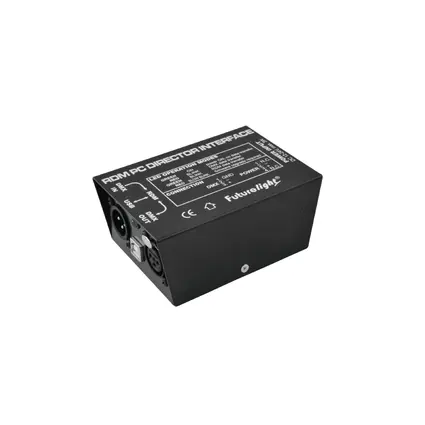

FUTURELIGHT RDM PC Director USB Interface

FUTURELIGHT

Compact RDM interface

FUTURELIGHT RDM PC Director USB Interface

only a few items available
209,00 €
149,00
-29%
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 51834860

RDM stands for "Remote Device Management" and makes remote control of devices connected to the DMX-bus possible. ANSI E1.20-2006 by ESTA specifies the RDM standard as an extension of the DMX512 protocol.

Manual settings like adjusting the DMX starting address are no longer needed. This is especially useful when the device is installed in a remote area.

RDM is integrated in the DMX-protocol without influencing the connections. The RDM-data is transmitted via the standard XLR-line - new DMX-cables are not necessary. RDM ready and conventional DMX devices can be operated in one DMX line. The RDM protocol sends own packages in the DMX512 data feed and does not influence conventional devices.

If DMX splitters are used and RDM control is to be used, these splitters must support RDM.
Features
  • RDM interface for monitoring and remote control of DMX fixtures compliant with RDM (Remote Device Management)
  • Easy-to-use PC software for quick analysis and configuration of fixture parameters, i.e. DMX start address, DMX mode, lamp hour count, fixture status
  • 1 DMX universe
  • USB 2.0, 3-pin XLR connectors
  • PC software and user manual in the manufacturer's download section
  • Power supply via included PSU
  • Made in Europe
Technical specifications
Power supply:230 V AC, 50 Hz
via 12 V DC, 1 A power unit included in the delivery
Number of control channels:512
DMX512/RDM connectors:3-pin XLR
USB port:2.0, type B
Dimensions (LxHxD):80 x 43 x 50 mm
Weight:0.2 kg
Power consumption:12 W
Number of DMX channels:512
Packaging units
PU EAN Weight Dimensions
1 4026397451504 0,51 kg 16,5cm x 13cm x 6,5cm
50 4026397451511 26,40 kg 53,5cm x 47,5cm x 44cm
