RDM controller with TFT touchscreen
FUTURELIGHT RDM Director Touch Screen

svg
svg
svg
FUTURELIGHT

RDM controller with TFT touchscreen

FUTURELIGHT RDM Director Touch Screen

only a few items available
1.019,00 €
499,00
-51% valid until 31.12.2020
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 51834850

RDM stands for "Remote Device Management" and makes remote control of devices connected to the DMX-bus possible. ANSI E1.20-2006 by ESTA specifies the RDM standard as an extension of the DMX512 protocol.

Manual settings like adjusting the DMX starting address are no longer needed. This is especially useful when the device is installed in a remote area.

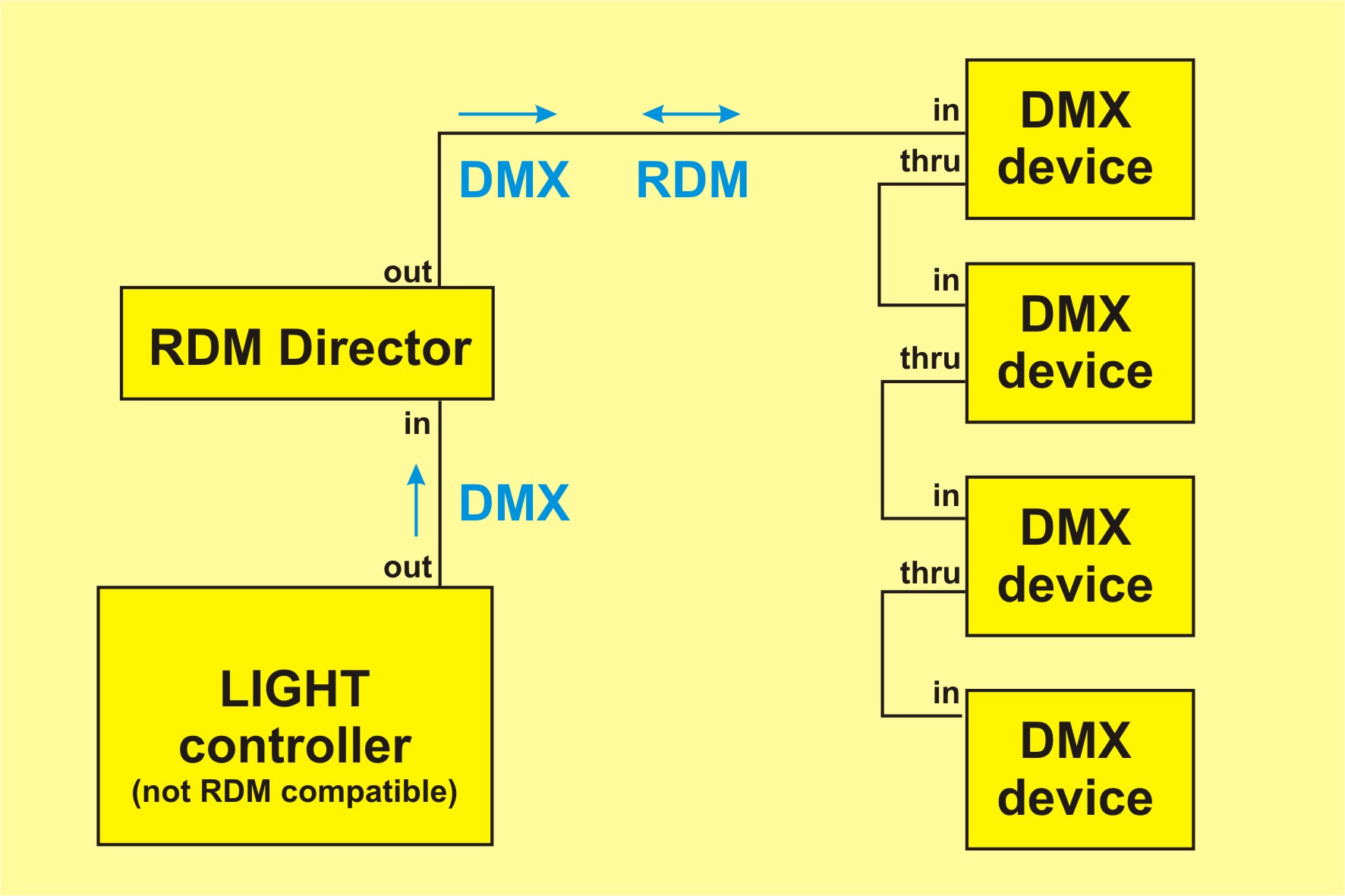

RDM is integrated in the DMX-protocol without influencing the connections. The RDM-data is transmitted via the standard XLR-line - new DMX-cables are not necessary. RDM ready and conventional DMX devices can be operated in one DMX line. The RDM protocol sends own packages in the DMX512 data feed and does not influence conventional devices.

If DMX splitters are used and RDM control is to be used, these splitters must support RDM.
Features

RDM controller with TFT touchscreen

  • RDM controller for monitoring and remote control of DMX fixtures compliant with RDM (Remote Device Management)
  • Quick analysis and configuration of fixture parameters, i.e. DMX start address, DMX mode, lamp hour count, fixture status
  • TFT touchscreen for menu settings
  • Various basic DMX control features integrated
  • 1 DMX universe
  • USB port for firmware updates
  • 3-pin XLR connectors
  • Power supply via included PSU
  • Made in Europe
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
12 V DC 1 A
Power consumption:12 W
Power connection:Mains input 4-pin screw plug connector (m) mounting version Power supply cord with AC adapter (provided)
DMX channels:Output 512
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
USB port:USB 2.0, Typ B
Mounting depth:60 mm
Width:23 cm
Height:6 cm
Depth:13,3 cm
Weight:1,30 kg
Packaging units
PU EAN Weight Dimensions
1 4026397451481 1,42 kg 33cm x 15cm x 7,5cm
4 4026397451498
5 4026397458015 7,60 kg 46cm x 36,5cm x 17cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
51834850-Manual-69295-1.200-en.pdf (838 KB) 1.200 en
Illustration
Name Version Language
Catalog pages
All images
Name Version Language
51834850-Images.zip
