Comfortable DMX controller

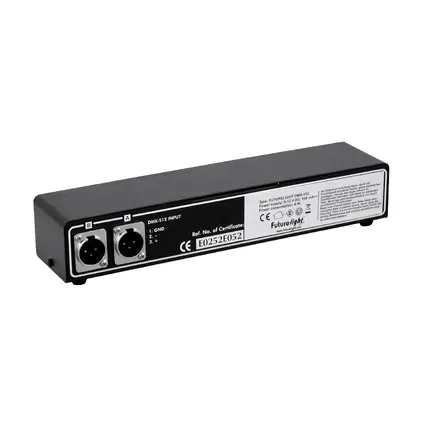

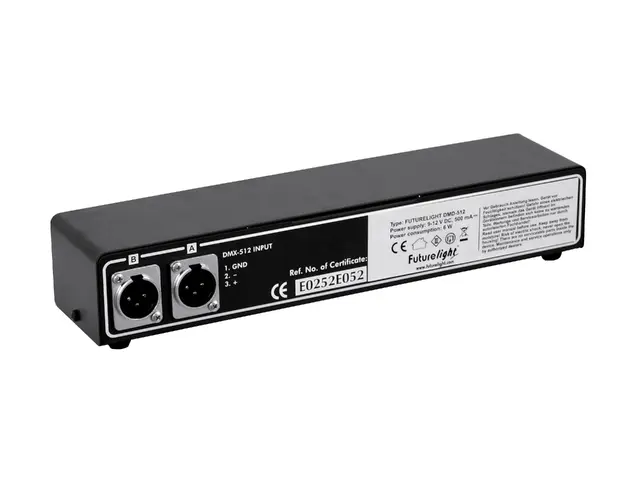

FUTURELIGHT DMD-512 DMX Monitor Driver

FUTURELIGHT

Comfortable DMX controller

FUTURELIGHT DMD-512 DMX Monitor Driver

Stock for approx. 12 wk(s)
375,00
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 51834650

Features
  • For equipping simple DMX controllers with monitor, mouse, keyboard and PC connection
  • 1024 control channels
  • 3 working modes: DMX receiver (2 x 512 channels), DMX converter (1 x 512 channels), DMX controller (1024 channels)
  • Comfortable adjustement of different parameters
  • Change channel values
  • Group DMX-channels
  • DMX-channels can be inverted
  • Include virtual Master Fader
  • Built-in clock
  • Inputs: 2 x DMX512, Mouse PS/2, Keyboard PS/2
  • Outputs: 2 x DMX512, Monitor SVGA, USB for PC connection
  • Recommended monitor resolution 1280 x 1024 pixels, 60 Hz
  • Made in Europe
Technical specifications
Power supply:230 V AC, 50 Hz
via 12 V DC, 500 mA power unit included in the delivery
DMX channels:1024
DMX connection:3-pin XLR, 2 x In, 2 x OUT
Dimensions (L x W x H):315 x 75 x 68 mm
Power consumption:6.00 W
Number of DMX channels:512
Weight:0,75 kg
IP classification:IP20
Color:Black
Packaging units
PU EAN Weight Dimensions
1 4026397336047 1,17 kg 40cm x 11cm x 8,5cm
5 4026397336054
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00033926.pdf 1.00 en/de
Support
Name Version Language
LDM_UPLOADER
00041608.zip
4.40 de
LDM-Uploader
00052470.zip
4.40 de
Illustration
Name Version Language
00033774.pdf 0.00 de

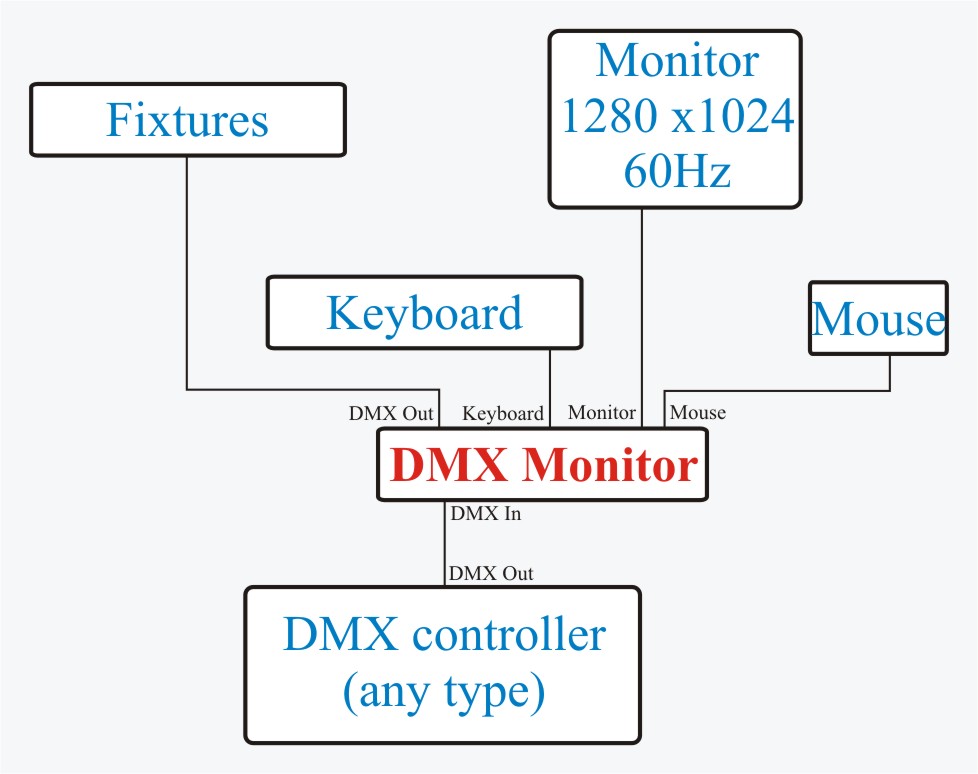

Connection diagram
0.00 de
Connection diagram
00033893.pdf
0.00 de
Catalog pages
Name Version Language
00097406.pdf 25.00 de
00098174.pdf 25.00 en
Software
Name Version Language
00041569.bin 1.80 de
All images
Name Version Language
51834650.zip
