Convenient architectural controller

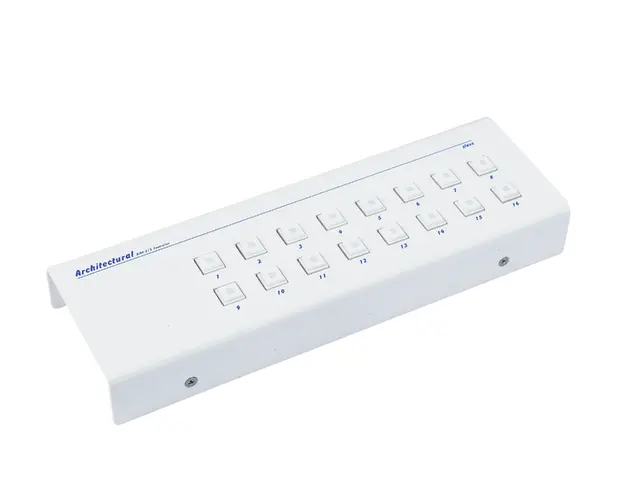

FUTURELIGHT ARC-S Control 512

svg
FUTURELIGHT

Convenient architectural controller

FUTURELIGHT ARC-S Control 512

Features

Convenient architectural controller

  • 512 DMX-channels
  • 1 Master, up to 12 Slaves
  • All kinds of DMX-equipment (luminaires, LED-effects etc.) can be controlled
  • Comfortable adjustment of different parameters
  • Built-in clock with battery backup
  • 999 scenes
  • 999 programs with 99 steps each
  • 99 daily programs with 128 steps each
  • 99 weekly programs with 7 steps each
  • 99 monthly programs with 31 steps each
  • Special program with 1 step
  • Simultaneously controllable events: 12 programs, 12 daily programs, 12 weekly programs and 12 monthly programs
  • PC-connection via USB
  • Power-unit included in the delivery
  • Installation only by professional installers or electricians
  • Can receive and process up to 1024 DMX channels
  • Control via DMX
  • Desktop console housing
Technical specifications
Power consumption:2,40 W
IP classification:IP20
DMX channels:Input 1024
Control:DMX
Housing color:White
Color:White
Housing design:Desktop console housing
Dimensions:Width: 23 cm
Depth: 7,5 cm
Height: 3 cm
Weight:770 g
Power supply:10-24 V AC/DC, 50/60 Hz
Dimensions (W x D x H):230 x 30 x 75 mm
Packaging units
PUEANWeightDimensions
140263971938620,12 kg24,5cm x 13,5cm x 9cm
104026397324631
Support
Spare parts
No spare parts available.
