DMX controller for many channels
FUTURELIGHT CP-512 MST Controller 16 bit

FUTURELIGHT

DMX controller for many channels

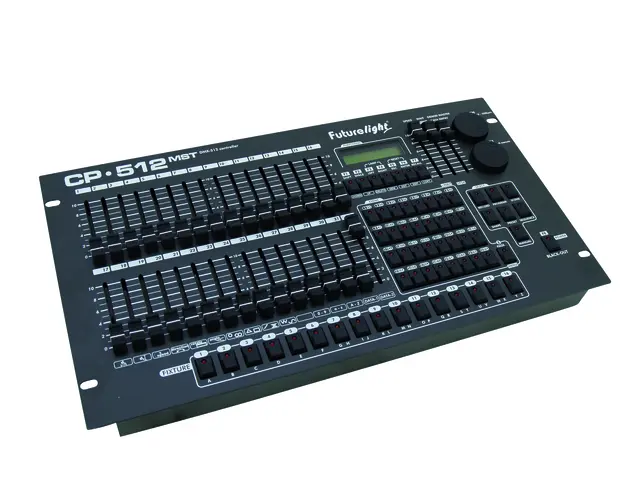

FUTURELIGHT CP-512 MST Controller 16 bit

Item no. 51834299

Features
  • 512 control channels for 16 projectors with up to 32 channels
  • 16-bit resolution for fine Pan/Tilt movements
  • Projector library with up to 255 entries
  • 64 programs
  • 64 records
  • 64 preset scenes, 64 preset macros
  • 10 selectable languages
  • Mirror movement direction can be inverted
  • Copy function for scenes, programs and records
  • 99 chasers definable, one chaser per program
  • Blackout function
  • Sound control via built-in microphone or audio input
  • Security code operation
  • Operating hour meter
  • USB port for firmware updates (available in the download section)
  • Rack installation with 6 U
  • Made in Europe
Technical specifications
Power supply:230 V AC, 50 Hz
via 12 V DC, 500 mA power unit included in the delivery
Number of control channels:512
Sound-input:6.3 mm stereo Jack
Audio-sensitivity:0.3-1 V
DMX512 output:3-pin XLR connector
Free chasers:64
Dimensions (LxHxD):483 x 265 x 83 mm
Rack installation with 6 u
Minimum mounting depth:90 mm
Weight:4 kg
Power consumption:6.00 W
Number of DMX channels:512
IP classification:IP20
Weight:4 kg
Packaging units
PU EAN Weight Dimensions
1 4026397280326 5,40 kg 56cm x 34,5cm x 21cm
4 4026397280333 23,35 kg 71cm x 58cm x 45cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00073330.pdf 1.30 en/de
Illustration
Name Version Language
Rear
0.00 en
Catalog pages
Name Version Language
00097391.pdf 25.00 de
00098160.pdf 25.00 en
Service document
Name Version Language
00054274.pdf 1.00 en
Software
Name Version Language
00051996.bin 3.50 de
Firmware V4.3
00092818.bin
0.00 de
Software Geschichte
00092819.pdf
0.00 en
All images
Name Version Language
51834299.zip
