Wireless DMX system 2.4 GHz - two transceivers with W-DMX unit in one 19" housing

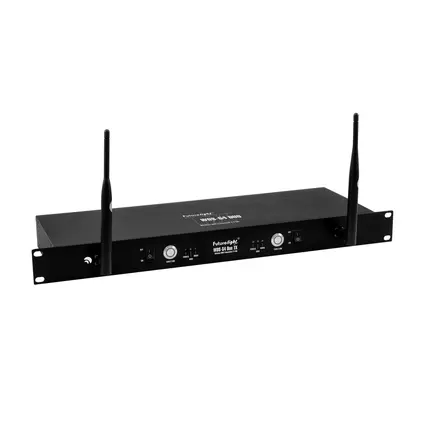

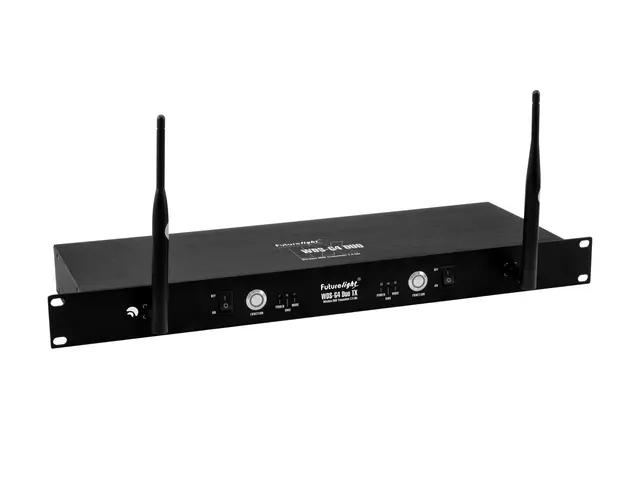

FUTURELIGHT WDS-G4 Duo TX Wireless DMX Transceiver

svg
svg
svg
svg
1 U
svg
FUTURELIGHT

Wireless DMX system 2.4 GHz - two transceivers with W-DMX unit in one 19" housing

FUTURELIGHT WDS-G4 Duo TX Wireless DMX Transceiver

Stock for approx. 12 wk(s)
249,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 51834024

Features

Wireless DMX system 2.4 GHz - two transceivers with W-DMX unit in one 19" housing

  • Two W-DMX transceivers by Wireless Solution in one housing
  • Wireless transmission of DMX data
  • Switching between transmitter and receiver
  • Compatible with Wireless Solution W-DMX systems
  • Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
  • AFHSS technology ensures interference-free operation also alongside other DMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
  • Operating range up to 500 m (with line-of-sight)
  • 1 to 512 receivers can be controlled by each transmitter
  • Simultaneous operation of up to 6 transmitters, thus control of 6 DMX universes (3072 DMX channels) possible
  • Plug & Play: quick and easy setup with one operating button
  • LED indication for operation and functions
  • DMX input and output, 3-pin XLR
  • 2.4 GHz - license-free worldwide
  • 483 mm device (19")
  • Rack installation, 1 U
  • Control: DMX; W-DMX by wireless solution built-in
  • Housing design: (19") 48.3 cm rack installation 1 U
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:4 W
IP classification:IP20
Power connection:Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Frequency band:2.4 GHz
DMX channels:1024
DMX input:2 x 3-pin XLR (M) mounting version
DMX output:2 x 3-pin XLR (F) mounting version
Control:DMX
W-DMX by wireless solution built-in
Color:Black
Modulation:AFHSS
latency:< 5 ms
Parallel mode:max. 6 Transmitter
Range:500 m with line of sight
Carrier frequency:2,4 GHz
Housing design:(19") 48.3 cm rack installation 1 U
Width:48,3 cm
Height:4,45 cm
Depth:16 cm
Weight:1,98 kg
Packaging units
PU EAN Weight Dimensions
1 4026397631968 2,35 kg 53,5cm x 20cm x 8cm
5 4026397648966 12,60 kg 56cm x 43cm x 23cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
51834024-Manual-120717-1.100-de_en.pdf (941 KB) 1.100 de_en
All images
Name Version Language
51834024-Images.zip
Publications
main catalog 2019 St. E #28
On page: 224
Size: 284 MB
