Moving Head beam with 4° beam angle and 36 W LED

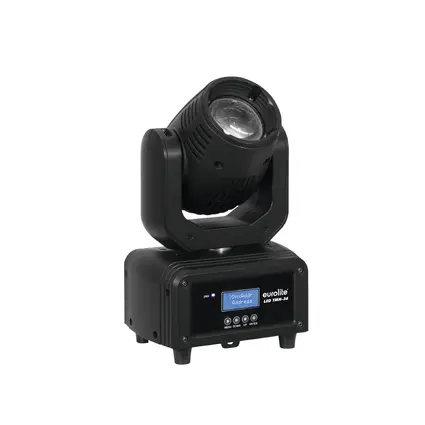

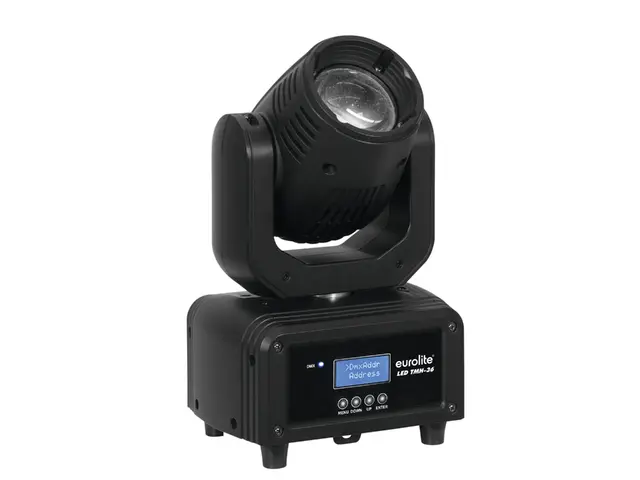

EUROLITE LED TMH-36 Moving Head Beam

EUROLITE

Moving Head beam with 4° beam angle and 36 W LED

EUROLITE LED TMH-36 Moving Head Beam

Features

Moving Head beam with 4° beam angle and 36 W LED

  • Equipped with a 36 W LED with RGBW colors
  • Compact lightweight
  • Narrow beam angle
  • Positioning within 540° PAN and 240° TILT
  • Stepless RGBW color mixture
  • Masterdimmer
  • Internal programs
  • Color change with diverse settings
  • Strobe effect with adjustable speed
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Automatic position correction
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Sound-control via built-in microphone
  • Control board with LC display for adjusting the DMX-starting address, PAN/TILT reverse, program
  • Switch-mode power supply for operation between 100 and 240 volts
  • DMX control via every standard DMX controller
  • Preprogrammed in Light´J; LED PC-Control 512
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Preprogrammed in:Light´J; LED PC-Control 512
Dimensions:Width: 14 cm
Depth: 17,5 cm
Height: 26 cm
Power consumption:55 W
DMX channels:13
DMX connection:3-pin XLR
Sound-control:via built-in microphone
Flash rate:18 Hz
LED type:COB 36 W, RGBW
LED number:1
Beam angle:
Maximum PAN-movement:540°
Maximum TILT-movement:240°
Dimensions (L x W x H):175 x 140 x 260 mm
Weight:4 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
Packaging units
PUEANWeightDimensions
140263975560324,67 kg24,5cm x 20cm x 42cm
4402639756486020,15 kg51,5cm x 42cm x 46cm
