Show laser class 3 with 60 mW power in green
LASERWORLD EL-60G MKII

LASERWORLD

Show laser class 3 with 60 mW power in green

LASERWORLD EL-60G MKII

Stock for approx. 8 wk(s)
105,00
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 51743201

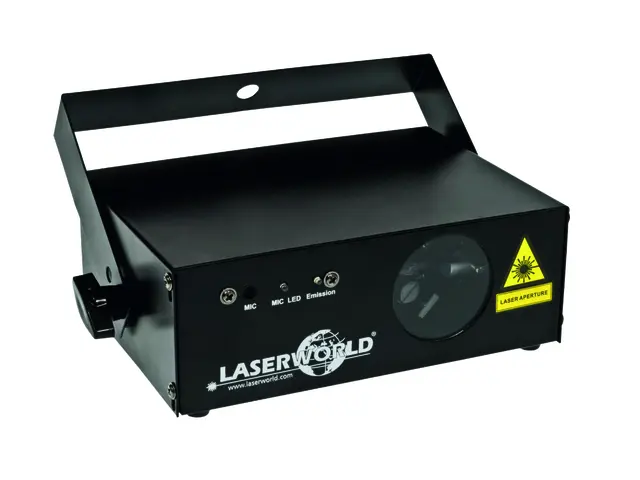

The Laserworld EL-60G is a green single color laser system with a total output power of up to 60 mW.

The green DPSS laser module with a wavelength of 532 nm ensures a high visibility and brightness. At the same time the projector has good beam specifications with a beam diameter of about 3 mm and beam divergence of about 1.5 mrad and it offers high-speed stepper motors with 2-5 kpps as well as a scan angle of up to 30°. Approximately 50 preset basic patterns, like layers, tunnels, fences, waves etc. are available in the sound-to-light mode. For this mode the sensitivity of the integrated adjustable microphone can be altered. There is an on-off switch as well as an key switch at the rear side of this very compact device.

The Laserworld EL-60G is a very affordable solution for first-time users and it is often used in bars, small clubs, at private parties or home use.
Features
  • Laser color: G green
Technical specifications
Total Power typical: 60 mW
Guaranteed power: 40 mW
Power Green: 40 mW / 532 nm
Beam Specifications: ca. 3 mm / 1.5 mrad
Laser Sources: DPSS Laser
Laser Class: 3B
Operation Modes: Sound-to-Light, Stand-Alone
Scanner: high-speed stepper motors, up to 2-5 kpps
Scan Angle max.: 30°
Basic Patterns: ca. 50 (layers, tunnels, fences, waves, etc.)
Accessories: power cable, manual, keys, interlock
Power supply: 85-250 V AC
Power Consumption: 30 W
Dimensions: 205/145/75 mm
Laser class:Class 3B
Weight:1,4 kg
IP classification:IP20
Packaging units
PU EAN Weight Dimensions
1 7640144990992 2,10 kg 27cm x 23cm x 14cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
Bedienungsanleitung
00109453.pdf
1.00 en/fr/de
Catalog pages
Name Version Language
00115211.pdf 27.00 de
00115648.pdf 27.00 en
