Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	225 W
IP classification:	IP20
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable length:	3 m
Power output:	2 x IEC connector (F) mounting version fused 1 x P-Con (gray), mounting version Bypass
Device fuse:	5 x 20 mm, T 2.5 A fuse replaceable
Power output fuse per channel:	5 x 20 mm, T 5 A fuse replaceable
Lamp type:	LED lamp
LED type:	7 x 10 W SMD 9090 6in1 HCL RGBWA/UV (homogenous color mix)
DMX channels:	2; 4; 6; 10; 24; 28
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; DMX; IR remote control; sound to light via microphone; wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Fixtures available for:	EASY SHOW 1; Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
Beam angle:	19°
Beam angle (1/2 peak):	19°
Beam angle (1/10 peak):	35°
Housing color:	Black
Attachment system:	TV spigot Ø 28mm Omega bracket
Display type:	Monochrome 4 digit 7-segment LED display
Dimensions:	Width: 128 cm Depth: 8 cm Height: 29 cm
Weight:	11.14 kg
Noise classification:	Class 0 (no noise at all)
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397657654	12,35 kg	132,2cm x 15cm x 39cm

Spare parts

LED HCL 10W RGBWAUV PIX-6 HCL (TX-BGRWPY10B140-001E)

Bag LED KLS-3002

Panel LED KLS-3002 Kompakt-Lichtset

Pcb (control/display) LED KLS 3002 (CRT MB Mpb V1.0)

Pcb (Power supply) 25V/4,5A KLS-3002 (CPS-112.5-A25)

Pcb (Power supply) 24V/5A KLS-902 (CPS-120W-A24)

PCB (DMX) LED KLS-3002 (CRT AS WL SS)

Pcb (LED driver) LED KLS 3002 (WLS-46)

Pcb (LED) LED KLS-3002 Next (CRT_LED_POWER PARTY BAR WL-46 V1.0)

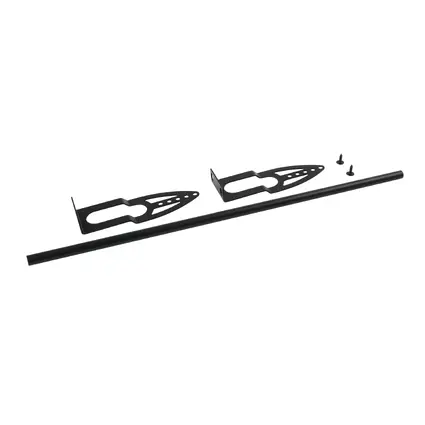

TV Spigot M18 Ø=28x140mm LED KLS Laser Bar Next FX-Lichtset

Locking screw M8x17 knurled handle

Washer (Plastic, black)

Bügel LED KLS-3002 (1 part) bl

Pcb (Power supply) 25V/4,5A KLS-3002 (CPS-113W.A24)

Adapter plate for power supply unit LED KLS-3002 Next Compact Light Set

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Dimensional drawing

Name	Version	Language
42109895-Dimensions-162657-1.0000-42109895-dimensions-en.pdf (56 KB)	1.0000	en

Support

Name	Version	Language
42109895-Support-128691-1.0000-42109895-LED-PC-Control-Fixture-en.zip (7 KB)	1.0000	en
42109895-Support-136474-Fixture-fuer-Colorchief-V2x-de.zip (243 B)	0.0000	de

All images

Name	Version	Language
42109895-Images-.zip

Publications

Move Magazine #1/2023 E

On page: 41

Size: 42 MB

Video link

https://www.youtube-nocookie.com/embed/ncGQvbY8vSQ

EUROLITE LED KLS-3002 Next Compact Light Set

Bar with 4 powerful 6in1 HCL RGBWA/UV spots, QuickDMX support, IR remote control and carrying bag-MainBild

Bar with 4 powerful 6in1 HCL RGBWA/UV spots, QuickDMX support, IR remote control and carrying bag-Bild-1

EUROLITE LED KLS-3002 Next Compact Light Set

The article is no longer in our assortment.

Check out the alternatives:

Bar with 4 powerful 6in1 HCL RGBWA/UV spots, AirW wireless system (2.4 GHz), wireless remote control and transport bag

EUROLITE LED KLS-3002 MK2 Compact Light Set AIR

alternative is the successor

No. 42109896

product incoming

599,00 €

No. 42109895

19°

Bar with 4 powerful 6in1 HCL RGBWA/UV spots, QuickDMX support, IR remote control and carrying bag

Crossbar with integrated DMX control unit and TV spigot for tripod installation
Mounting points and power outlets for additional fixtures
7 LEDs 10 W SMD 9090 6in1 HCL RGBWA/UV (homogenous color mix)
spots controlled separately
Dimmer electronic; color blend stepless; color selection; program selection
UV effect
20 integrated show programs
Direct color selection for 21 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; DMX; IR remote control; sound to light via microphone; wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Fixtures available for EASY SHOW 1; Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
With a beam angle of 19°
TV spigot
With omega bracket
Monochrome 4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; rental
Silent operation
Application possibility: Suspended; on stand
