DMX LED spotlight set with 48 TCL LEDs for mobile use
EUROLITE LED KLS-1001 Compact-Light-Set

EUROLITE

DMX LED spotlight set with 48 TCL LEDs for mobile use

EUROLITE LED KLS-1001 Compact-Light-Set

Item no. 42109875

Features

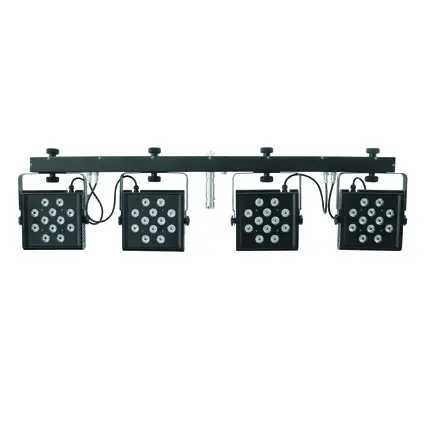

  • Complete LED light set with four slimline LED spots
  • Crossbar with integrated DMX control unit
  • Installation via TV pin for tripods with 28 mm interior diameter
  • Ultra-light ideally suited for mobile use
  • Comes pre-assembled with practical transport bag
  • 12 TCL LEDs per spot
  • Through the close chip placement of the multichip technology, an exquisite color mix even with short distances to the illuminated surface is provided
  • Movable and tiltable spotlights
  • DMX-controlled operation or stand-alone operation with processor-controlled color change
  • Master/Slave operation
  • Sound-control via built-in microphone with sensitivity control
  • Convenient control possible via optional 4-pedal foot pedal FP-1 or IR remote control
  • DMX512 control via regular DMX controller (occupies 15 channels)
  • Optimized for control with the optional control panel DMX LED Operator 4
  • Via DMX, each spot can be individually controlled
  • DMX functions: dimmer, automatic mode, music control, strobe effect
  • Addressing and setting via control panel with 4-digit LED display
  • Suited for installation on a lighting stand (not included) or truss
  • Black lacquered metal version
  • Ideal for bands, stages or solo entertainers
  • Ready for connection with power cord and safety plug
  • 4 IEC outputs for power supply of further devices
  • Color generation: RGB
Technical specifications
Power supply:230 V AC, 50 Hz
DMX channels:15
DMX connection:3-pin XLR
Sound-control:via built-in microphone
LED type:3 W TCL
Number of LEDs:48
Beam angle:18°
TV spigot:D = 28 mm
Dimensions (L x W x H):1200 x 65 x 315 mm
Dimensions case (L x W x H):1250 x 120 x 380 mm
Weight:10 kg
Power consumption:180.00 W
Lamp type:LED lamp
IP classification:IP20
Beam angle:18 °
Laser class:Without laser
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397422450 13,45 kg 125,5cm x 13cm x 40cm
