Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	140 W
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Fuse:	F 2 A
Lamp type:	LED lamp
LED type:	1 x 120 W COB (chip-on-board) 4in1 RGBW (homogenous color mix)
Flash rate:	0 - 20 Hz
DMX channels:	2; 4; 5; 9; 6
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan
Control:	Stand-alone; DMX; sound to light via microphone; master/slave function
Fixtures available for:	LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Projection:	Flicker-free
Beam angle (1/2 peak):	11 - 35°
Beam angle (1/10 peak):	15 - 48°
Housing color:	Black
Attachment system:	Mounting bracket
Dimensions:	Width: 26 cm Depth: 43.5 cm Height: 37.5 cm
Weight:	3.90 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397657616	5,00 kg	49cm x 37cm x 37cm

Spare parts

Bracket LED PAR-64 COB 3000K 100W Zoom 265x235x30mm (1 piece) black

Pcb (Control) LED PAR-64 COB RGBW 120W Zoom (PCB0231-V1)

PCB (Display) LED PAR-64 COB RGBW 120W Zoom (PCB0167-V1-506)

Fan 24V/0,1A 92x92x25mm (HD9225B24M)

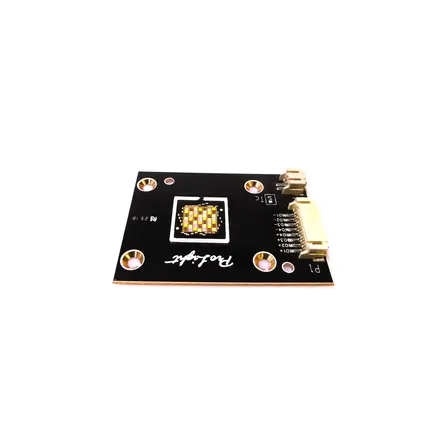

LED COB 120W RGBW LED PAR-64 COB RGBW 120W Zoom (PUMG-120FTL-ND4N)

Pcb (Power supply) 48V/3,13A LED Strobe SMD PRO 540 DMX RGB (PFC-150W48V)

Pcb (Power supply) 48V/3,12A LED PAR-64 (A150g-48P)

Voltage regulator LM2576HVS 5V/3A

FUTURELIGHT Voltage regulator LM2576HVT-ADJ 4-60V, 1,23-57V, TO-220

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
41603605-Support-128796-1.0000-41603605-LED-PC-Control-Fixture-en.zip (5 KB)	1.0000	en
41603605-Support-136422-Fixture-fuer-Colorchief-V2x-de.zip (223 B)	0.0000	de

All images

Name	Version	Language
41603605-Images-.zip

Publications

Move Magazine #1/2021 E

On page: 55

Size: 43 MB

Move Magazine #2/2021 E

On page: 67

Size: 56 MB

Video link

https://www.youtube-nocookie.com/embed/MoF-Kb-0VYo

EUROLITE LED PAR-64 COB RGBW 120W Zoom bk

PAR spot with 120 W RGBW LED and manual zoom-MainBild

PAR spot with 120 W RGBW LED and manual zoom-Bild-1

EUROLITE LED PAR-64 COB RGBW 120W Zoom bk

The article is no longer in our assortment.

Check out the alternatives:

PAR spot with 120 W RGBW LED and manual zoom

EUROLITE LED PAR-64 COB RGBW 120W Zoom bk MK2

alternative is the successor

No. 41603606

available in approx. 2 wk(s)

449,00 €

PAR spot with warm white 100 W COB LED and manual zoom

EUROLITE LED PAR-64 COB 3000K 100W Zoom bk

this alternative is identical. Other features

No. 41603600

Stock for approx. 12 wk(s)

279,00 €

No. 41603605

11 - 48°

PAR spotlight with 120 watt RGBW LED and manual zoom

The EUROLITE LED PAR-64 COB is equipped with a powerful 120 W LED (COB) in red, green, blue and white (RGBW). It is ideal for your lighting installation. Thanks to its adjustable PWM frequency, its projection is flicker-free - the spotlight is also suitable for video recording.

The beam angle is manually adjustable from 11° to 35°.
Choose from different dimmer curves and speeds - according to your needs.
Control is via DMX or in stand-alone mode. In auto and music mode you can play three integrated show programs.
You can address and adjust your PAR spotlight via the integrated control unit with 4-digit LED display.

The P-Con connections make it easy to connect up to eight devices together.

PAR spot with 120 W RGBW LED and manual zoom

1 LED 120 W COB (chip-on-board) 4in1 RGBW (homogenous color mix)
Color blend stepless; dimmer curves with adjustable response; pulse-width modulation variable
3 integrated show programs
The device is cooled by temperature-controlled fan
Control via stand-alone; DMX; sound to light via microphone; master/slave function
Flicker-free
With mounting bracket
Mains input and output for power linking up to 8 units
For application areas such as: Stage
