Technical specifications

Maximum load:	50 kg
Removable covers:	2 pc/pcs
Aluminum profile frames:	30 mm
Case handle:	2 pc/pcs
Lock:	Butterfly lock: 4 pc/pcs
Transport aid:	2 x wooden slide rails on the bottom
Use of brands:	Branded hardware
Material:	Birch multiplex, 9 mm
Color:	Dark brown, laminated
Front panel width:	19"
Mounting height:	Approx. 35.5 cm (8 U)
Mounting depth:	450 mm
Housing design:	8 U
Dimensions:	Width: 55.5 cm Depth: 63 cm Height: 42 cm
Weight:	13.70 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397626995	13,80 kg	62,5cm x 41cm x 56cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Data sheet

Name	Version	Language
30109110-Datasheet-78228-1.0000-en.pdf (80 KB)	1.0000	en

All images

Name	Version	Language
30109110-Images-.zip

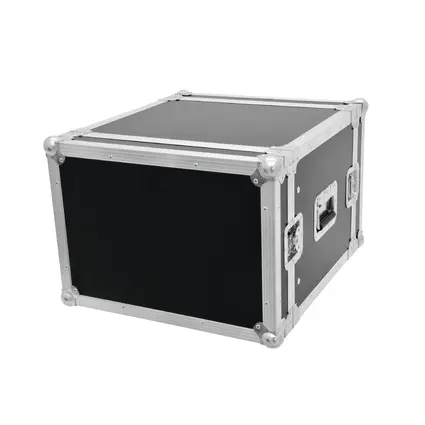

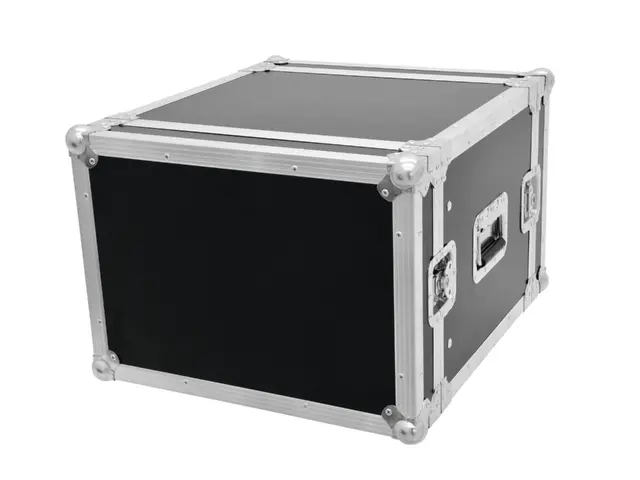

ROADINGER Rack Profi 8U 45cm

The article is no longer in our assortment.

Check out the alternatives:

No. 30109110

8 U

9 mm

Rack case, PRO version

8 U
High-quality workmanship with birch multiplex 9 mm, dark brown, laminated
2 removable covers (double-Door-Version)
Aluminum profile frames 30mm with rounded edges
2 hinged, chromium plated case handles
4 high-quality butterfly locks
2 x wooden slide rails on the bottom
Branded hardware
Available in different height units (1 U = 44 mm)
With profile rails suitable for 19" units
Made in Europe
For further information about this product, please refer to the Data Sheet under "Downloads"
