Professional flightcase for 483 mm units (19")
ROADINGER Effect rack CO DD, D:36cm, 10U, alu

ROADINGER

Professional flightcase for 483 mm units (19")

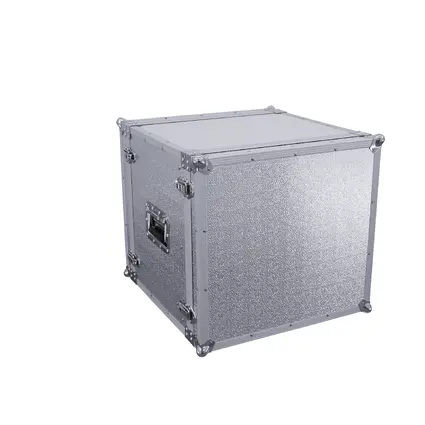

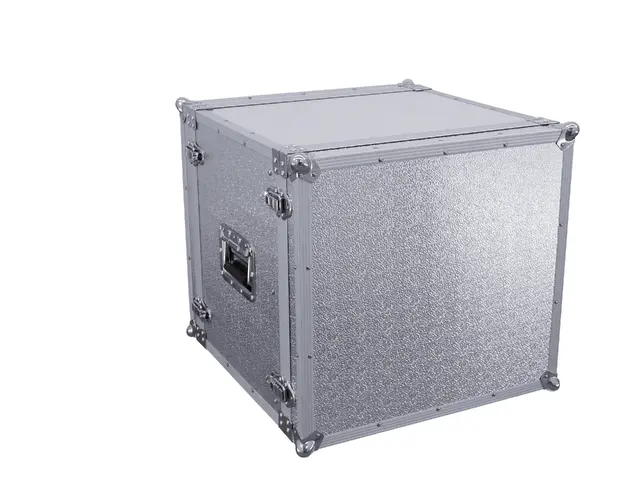

ROADINGER Effect rack CO DD, D:36cm, 10U, alu

Item no. 30107272

Features

Professional flightcase for 483 mm units (19")

  • Suitable for 483 mm effectors and controllers (19")
  • 2 removable covers (double-door version)
  • Built-in rack rails
  • High-quality workmanship with plywood multilayered glued, aluminum-colored laminated
  • Aluminum profile frames (22 mm) with rounded edges
  • Three-leg, medium-sized steel ball corners
  • 8 spring locks with eyelets for locking-up
  • 4 large steel-enforced rubber feet
  • 2 hinged, chrome case handles
  • Delivery includes mounting screws
  • Available in different height units (1 U = 44 mm)
  • Housing design: 10 U
Technical specifications
Maximum load:20 kg
Outer dimensions/corners approx.:50 mm
Strength:7 mm
Mounting width:483 mm (ca. 19")
Mounting height:ca. 450 mm (10 HE)
Mounting depth min.:360 mm
Housing design:10 U
Width:52,5 cm
Height:51 cm
Depth:56 cm
Weight:10,30 kg
Strength:7 mm
Outside dimensions (W x D x H):525 x 560 x 510 mm
Inside dimensions:
Mounting width:483 mm (19")
Mounting height:450 mm (10 U)
Mounting depth:360 mm
Corner dimensions:50 mm
Packaging units
PU EAN Weight Dimensions
1 4026397326505 11,85 kg 56,5cm x 54,5cm x 52,5cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
30107272-Manual-57820-1.000-Hinweis-de_en.pdf (97 KB) 1.000 de_en
Data sheet
Name Version Language
30107272-Datasheet-58611-1.000-en.pdf (81 KB) 1.000 en
