The article was removed from our product range and can no longer be ordered. All texts, documents, photos and videos are still available. Any spare-parts on stock can be ordered. |

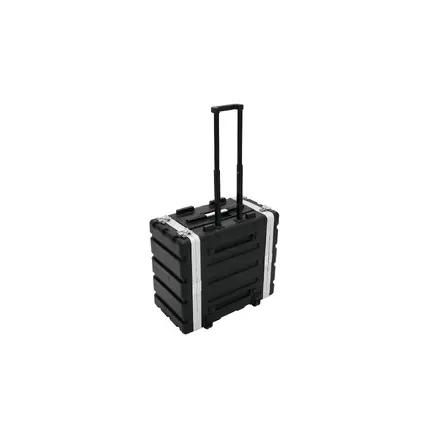

Plastic rack 19, 5U, DD/trolley, black
Professional hard-sided flightcase for 483 mm units (19")
Item no. 30106055
- Rugged and low-weight construction for effectors and controllers with 5 U (max. weight 25 kg)
- Black scratchproof and shockproof ABS housing
- 2 removable covers (double-door version)
- Aluminum profile frame (22 mm)
- Mini butterfly locks (w/o locking function)
- Built-in rack rails (two-sided, looped)
- Extendable trolley
- Castors
- 2 slide bars (top)
- 4 small plastic feet (bottom)
- 4 longer plastic feet on every side next to the handle to put down
- 2 aluminum handles (sides)
- Stackable
- Delivery includes mounting screws
| Maximum load: | 25 kg |
| Strength: | 2 mm |
| Outside dimensions (L x W x H): | 560 x 570 x 350 mm |
| Inside dimensions: | |
| Mounting width: | 483 mm (19") |
| Mounting height: | 220 mm (5 U) |
| Mounting depth: | 420 mm |
| Weight: | 8 kg |
| Max. load: | 25 kg |
| Mounting depth: | ca. 420 mm |
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397444414 | 8.500 kg | 58cm x 36.5cm x 56.5cm |
