EUROLITE Set 4x AKKU UP-1 Glow QCL Flex Spot QuickDMX + Case

Name: EUROLITE Set 4x AKKU UP-1 Glow QCL Flex Spot QuickDMX + Case
Brand: EUROLITE
SKU: 20000892
Price: 1099.00 EUR
Availability: InStock

mpn20000892-eurolite-set-4x-akku-up-1-glow-qcl-flex-spot-quickdmx-+-case-MainBild

mpn20000892-eurolite-set-4x-akku-up-1-glow-qcl-flex-spot-quickdmx-+-case-Bild-1

15°

9°

6 mm

EUROLITE Set 4x AKKU UP-1 Glow QCL Flex Spot QuickDMX + Case

Stock for approx. 4 wk(s)

1.099,00 €

Find a dealer

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000892

Print product

Product badge

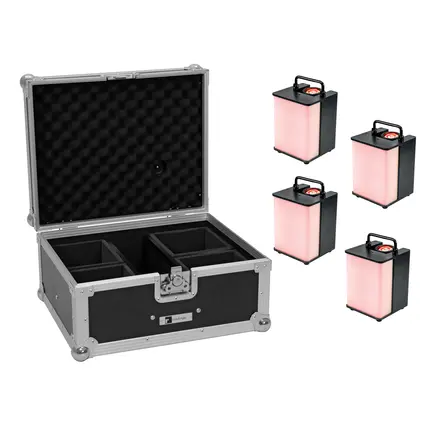

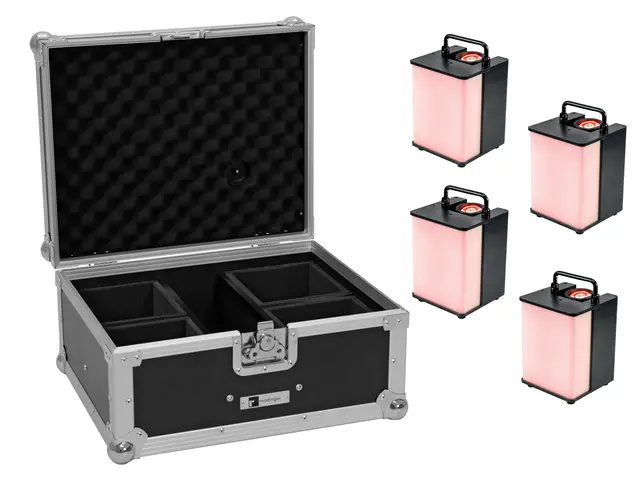

Set consisting of:

4 x EUROLITE AKKU UP-1 Glow QCL Flex Spot QuickDMX

1 x ROADINGER Flightcase EC-AU4 4x AKKU UP 4 QCL Spot QuickDMX

Features

EUROLITE AKKU UP-1 Glow QCL Flex Spot QuickDMX

LED Uplight with 15 W 4in1 LED, tiltable head, QuickDMX & mood light

Tilting head with one high-power 15 W RGBW LED (4in1)
Milky front screen provides a pleasantly soft light with RGBW color mixing
Beam angle selectable via included lens 9°/15°
With integrated QuickDMX transmitter/receiver for the wireless transmission of DMX512 signals
Wireless master/slave operation via QuickDMX
Stepless RGBW color mixture, static colors, dimmer, internal programs and strobe effect with variable speed
Dimmer speed (step response) adjustable
Massive, rechargeable lithium-ion battery for a long operating time of up to 24 hours
Integrated automatic charging of the battery with indicator
Addressing and setting via Control Board with touch buttons and LCD
Convenient wireless control via included IR remote control EUROLITE IR-13
Sturdy enclosure with handle and mounting bracket
Switch-mode power supply for operation between 100 and 240 volts
Power connection via P-Con jack and included power cable with safety plug
LED: 30 x SMD 5050 0,25 W 4in1 QCL RGBW (homogenous color mix)
LED: 1 x high-power 15 W 4in1 QCL RGBW (homogenous color mix)
Can be operated in 3; 7; 8; 9; 11 CH mode
The device is cooled by passive convection
Controlling by DMX; Stand-alone; QuickDMX built-in; Sound to light via Microphone; IR remote control included
Is in Light J Software; EUROLITE LED PC-Control 512 software already preprogrammed
Flicker-free projection
With a KENSINGTON LOCK theft protection
For application areas such as: Small lender; Wedding/gala

ROADINGER Flightcase EC-AU4 4x AKKU UP 4 QCL Spot QuickDMX

Transport case for 4x AKKU UP-4QCL Spot QuickDMX

Fitted for four EUROLITE AKKU UP-4 QCL Spot QuickDMX
High-quality workmanship with 6mm plywood multilayered glued, black laminated
Aluminum profile frames with rounded edges
Interior upholstered with foam
Three-leg, big steel ball corners
2 hinges
Cable conduit allows recharging the devicex inside the case
1 chrome butterfly lock
1 chrome case handles

Technical specifications

Weight:	18,20 kg
EUROLITE AKKU UP-1 Glow QCL Flex Spot QuickDMX
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	40 W
IP classification:	IP20
Power connection:	Battery/battery pack Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Battery pack type:	1 x lithium ion 11,1 V, 10400 mAh, 115,44 Wh
Battery pack:	Battery operation up to 24h depending on program used Recharging time 4h
Lamp type:	LED lamp
LED:	30 x SMD 5050 0,25 W 4in1 QCL RGBW (homogenous color mix) 1 x high-power 15 W 4in1 QCL RGBW (homogenous color mix)
DMX channels:	3; 7; 8; 9; 11
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Passive convection
Control:	DMX; Stand-alone; QuickDMX built-in; Sound to light via Microphone; IR remote control included; Light J Software; EUROLITE LED PC-Control 512 software
Beam angle:	9°
Beam angle (1/2 peak):	9° 15°
Beam angle (1/10 peak):	18° 30°
Housing color:	Black
Carrier frequency:	2,4 GHz
Theft protection:	KENSINGTON LOCK
Dimensions:	Width: 13,8 cm Depth: 13,8 cm Height: 20 cm
Weight:	2,90 kg
Noise classification:	Class 0 (no noise at all); Class 0 (no noise at all)
Remote control
Battery:	1 x Button cell 3.0 V CR2032 lithium manganese built-in
Legal specifications
Ecodesign regulation:	yes
Special product:	Not designed for household room illumination
intended use:	show effect lighting
ROADINGER Flightcase EC-AU4 4x AKKU UP 4 QCL Spot QuickDMX
Maximum load:	25 kg
Color:	Black
Inside dimensions:	45 cm x 36 cm x 20 cm
Device compartment:	16 cm x 14,5 cm x 18 cm
Material thickness:	6 mm
Dimensions:	Width: 49 cm Depth: 40 cm Height: 27 cm
Weight:	6,60 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397694987	22,00 kg	54cm x 52,5cm x 45cm
