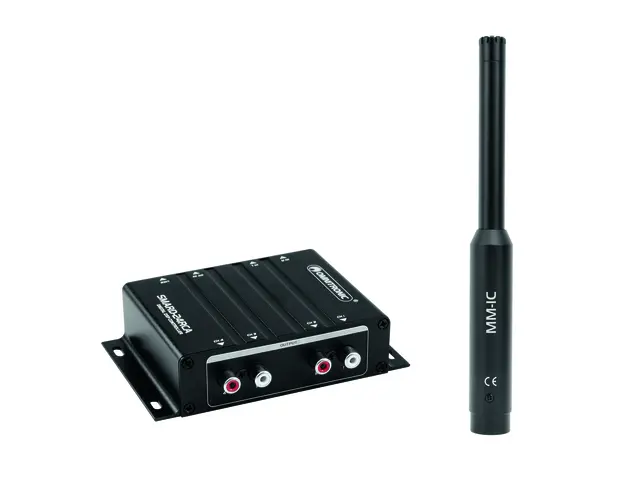

OMNITRONIC Set SMARD-24RCA + MIC MM-1C

svg
13 cm
svg
svg
svg
svg
OMNITRONIC



OMNITRONIC Set SMARD-24RCA + MIC MM-1C

Stock for approx. 12 wk(s)
119,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000550

10356301 OMNITRONIC SMARD-24RCA Digital DSP Controller

Digital dignal processor (DSP) in miniature format
The Smard-24RCA is flexible pocket size digital system processor (DSP). It stands out with its excellent sound characteristic and compact design.

2 analog cinch inputs and 4 analog cinch outputs are waiting for you. You can easily adjust all important settings with the included software on your PC or MAC. Settings are for example the frequency-filter, signal mixing/routing, in and output equalizing, signal delay and the limiter/compressor. You can safe up to 50 user presets on the device and protect them from unwanted access via a multi-level lock function.

The integrated RTA and the FIR filter complete the package. After you are done with the setup you operate the Smard-24RCA standalone with an optional power supply.

This is what you use the processor for

The system processor is perfect for speaker equalization and the adjustment of your speaker system to the listening room. The device also leaves nothing to be desired for HiFi fans and those who build the systems themselves. You can embed several subwoofers in every system and have the possibility to do an extensive room
correction.

Disturbing waves in the bassline you can eliminate as well as disturbing booming on your desktop speakers via frequency correction. The Smard-24RCA is even well prepared for car Hifi because of its small size.
Features

10356301 OMNITRONIC SMARD-24RCA Digital DSP Controller

Digital signal processor (DSP) in miniature format, software included

  • Flexible routing configurations for all standard mono and stereo output operating modes
  • 2 analog RCA inputs
  • 4 analog RCA outputs
  • 10-band parametric EQ per input and output
  • Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass
  • Active crossover with Bessel, Butterworth and Linkwitz-Riley filter with slopes up to 24 dB/octave
  • The intelligent software for PC and Mac allows convenient control with a computer
  • Up to 50 user presets storable in the device via software
  • Up to 10 ms signal delay adjustable for the inputs and outputs
  • Limiter and compressor for each input and output
  • Switchable phase per output (180°)
  • Lock function for protecting the program settings
  • 24-bit AD/DA converter
  • 48 kHz sampling rate
  • FIR filters
  • Real-Time-Analyzer function (RTA)
  • Incl. control software for programing and remote control via computer through micro USB interface
  • Wall mounting
  • Windows XP, Vista, 7, 10 and Mac OS X 10.5.8 and better
  • DSP: Digital signal processor FIR Filter
  • PC connect: DXO Software via USB Firmware can be updated

13030919 OMNITRONIC MIC MM-1C Condenser Measurement Mic

Precise measuring microphone with flat frequency response

  • Electret measuring microphone for measuring systems and audio recordings
  • Designed for measuring PA systems, speakers and room acoustics
  • Perfect complement to any real-time analyzer
  • Flat frequency response for high precision
  • True omnidirectional pattern
  • Sturdy all-metal construction and narrow design
  • Incl. microphone clip, thread adapter (9 mm/3/8") and windscreen
  • Polar pattern: Omnidirectional
Technical specifications
Weight:0,50 kg
10356301 OMNITRONIC SMARD-24RCA Digital DSP Controller
Power connection:Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Frequency range:20 - 20000 Hz
Crossover frequency:20-20000 Hz
Width:13 cm
Height:3,1 cm
Depth:10 cm
Weight:0,24 kg
Power supply:USB port or
6 V DC, 500 mA via power adapter (accessory)
Inputs:RCA
Maximum input level:+9 dBu
Dynamic range:113 dBA
Outputs:RCA
Maximum output level:+6 dBu
Dynamic range:103 dBA
Sampling frequency:48 kHz
Filter types:Bessel, Butterworth or Linkwitz-Riley
Slopes:6, 12, 18 or 24 dB/octave
Delay:0-10 msec
Communication:micro USB
13030919 OMNITRONIC MIC MM-1C Condenser Measurement Mic
Type:Microphone for measurements
Polar pattern:Omnidirectional
Frequency range:20 - 20000 Hz
Sensitivity:-37 dB
Max. SPL:134 dB
Phantom power:9 V - 52 V DC
S/N ratio:>76 dB
Capsule type:Condenser
Length:19,2 cm
Diameter:13 cm
Weight:0,10 kg
Type:Condenser (back electret)
Operating principle:Pressure gradient, FET preamp
Polar pattern:omnidirectional
Nominal impedance: 200 ohms
Load impedance: 1000 ohms
Phantom power:9-52 V DC
Current consumption: 3 mA
Connection: 3-pin XLR
