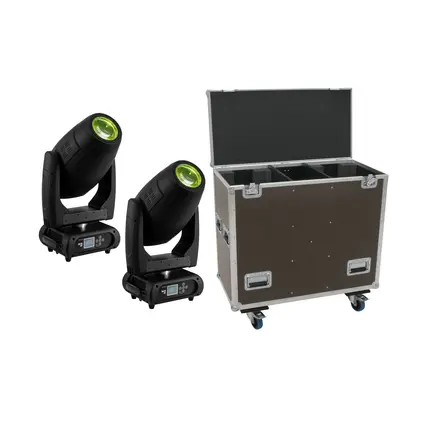

2x PRO beam/wash moving head with 270 W COB LED including flightcase with wheels
FUTURELIGHT DMH-300 CMY Moving Head
PRO beam/wash moving head with 270 W COB LED, large zoom and CMY color mixing
Package contents
ROADINGER Flightcase 2x DMH-300 LED
Trunk case with castors, PRO version
| FUTURELIGHT DMH-300 CMY Moving Head | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 340 W |
| IP classification: | IP20 |
| Power connection: | Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided) |
| Lamp type: | LED lamp |
| LED type: | 1 x 270 W COB (chip-on-board) cold white (CW) |
| Max. TILT movement: | 265° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540°, 630° exact positioning (16 bit resolution) auto position correction (feedback) |
| Equipment: | Gobo wheel with rotating gobos; gobo wheel with static gobos; prism 3-fold rotating; zoom motor driven; focus motor-driven; frost filter stepless; iris; iris stepless |
| Color generation: | CMY+CTO color mixing for indefinite color variations |
| Color generation: | Color wheel with 8 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with static gobos, 7 gobos and open Shake effect Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 27mm Image diameter 22mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement |
| DMX channels: | 19; 21; 28; 29 |
| DMX input: | 1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; DMX; RDM; sound to light via microphone |
| Preprogrammed in: | Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 8° - 44° |
| Beam angle (1/2 peak): | 8 - 44° |
| Beam angle (1/10 peak): | 8 - 44° |
| Illuminance in Lux (lx): | Narrow cold white (CW) 3m: 58069 lx, 6m: 12229 lx Wide cold white (CW) 3m: 2745 lx, 6m: 736 lx |
| Housing color: | Black |
| Display type: | LCD display |
| Dimensions: | Width: 44,5 cm Depth: 36,9 cm Height: 53,4 cm |
| Weight: | 25,10 kg |
| Noise classification: | Class 2 (slight noise) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase 2x DMH-300 LED | |
| Maximum load: | 100 kg |
| Aluminum profile frames: | 30 mm |
| Case handle: | 8 pc/pcs |
| Stop hinge: | 3 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs |
| Transport aid: | 4 x castors with 2 locking brakes |
| Material: | Birch multiplex, 7 mm |
| Color: | Dark brown, laminated |
| Device compartment: | 32,5 cm x 42,5 cm x 47 cm |
| Accessory compartment: | 21 cm x 42,5 cm x 34,5 cm |
| Inside dimensions: | 86 cm x 42,5 cm x 47 cm |
| Dimensions: | Width: 93,5 cm Depth: 46,5 cm Height: 94 cm |
| Weight: | 36,10 kg |
