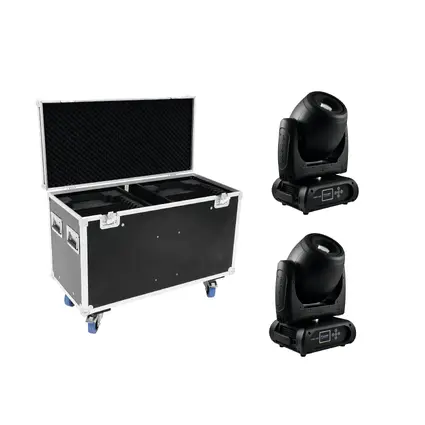

FUTURELIGHT Set 2x DMH-160 LED Moving-Head + Case

Name: FUTURELIGHT Set 2x DMH-160 LED Moving-Head + Case
Brand: FUTURELIGHT

14°

7 mm

FUTURELIGHT Set 2x DMH-160 LED Moving-Head + Case

The article is no longer in our assortment.

Item no. 20000239

Print product

Product badge

Features

Set consisting of:
2x 51841971: FUTURELIGHT DMH-160 LED Moving Head
1x 51836892: ROADINGER Flightcase 2x DMH-90/150/DMB-60/PLB-230

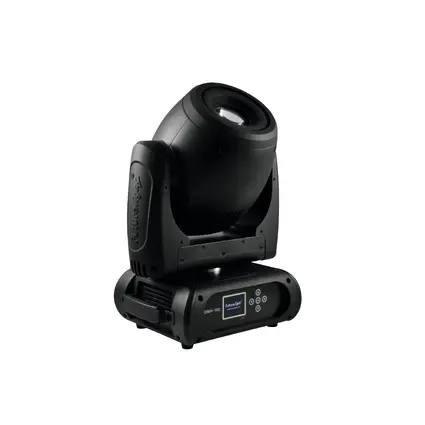

51841971 FUTURELIGHT DMH-160 LED Moving Head

PRO Moving Head with a 150 W COB LED and extensive features

Equipped with a powerful 150 W COB LED
Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
Supports RDM (Remote Device Management)
14, 16, 21 or 24 DMX channels selectable
Effect wheel with rotating 3-facet prism and 8-facet prism and frost filter
Color wheel with 8 different dichroic color filters plus white
Rainbow effect with adjustable speed in both directions
Gobo wheel with 7 rotating gobos plus open
All gobos can be interchanged
Slot-in gobo system for exchanging gobos without tools
With gobo shake function
Gobo wheel 2 with 7 static gobos plus open
Exact positioning via 16 bit PAN/TILT movement resolution
Motorized focus
Autofocus
Steplessly adjustable iris
Dimmer
Strobe effect with adjustable speed
Random strobe effect
Automatic position correction
PAN angle switchable between 540° and 630°
Sound-controlled via built-in microphone
Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
DMX-controlled operation or stand-alone operation with Master/Slave function
The scenes can be modified via the Control Board or via an external controller and loaded into the memory
Number of scenes can be changed individually
Software upload by optional accessories via DMX link
Power connection via Neutrik PowerCon jack and included power cable
Feed-through output allows to power up to 8 devices
ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included)
Switch-mode power supply for operation between 100 and 240 volts
DMX control via every standard DMX controller
LED: 1 x COB (chip-on-board) 150 W Color wheel
Color generation: Color wheel 1x 8 dichroic filters plus open
Control: W-DMX by wireless solution upgradeable; Stand-alone; DMX; RDM
Projection: flicker-free
Effect: Gobo effect; Single Beam

51836892 ROADINGER Flightcase 2x DMH-90/150/DMB-60/PLB-230

PRO flightcase for 2 x FUTURELIGHT DMH-90/DMH-150/DMB-60/PLB-230/EYE-15

Suitable for 2 units
Interior and cover upholstered with foam
High-quality workmanship with multiplex birch wood, dark brown laminated
Aluminum profile frames (30 mm) with rounded edges
Three-leg, medium-sized steel ball corners (chromium plated)
4 castors, 2 of which with locking brakes
2 high-quality butterfly locks
4 high-quality plated case handles
For perfect protection
Transport aid: With wheels
Made in Europe

Technical specifications

51841971 FUTURELIGHT DMH-160 LED Moving Head
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	170 W
LED:	1 x COB (chip-on-board) 150 W Color wheel
Max. TILT movement:	Exact positioning (16 bit resolution) 270° Auto position correction (feedback)
Max. PAN movement:	Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback)
Equipment:	rotating gobo wheel; static gobo wheel; Iris; Prisma 3-fold; Prisma 8-fold; Focus motor-driven; Frost filter
Color generation:	Color wheel 1x 8 dichroic filters plus open
Gobos:	rotating gobo wheel with 8 gobos and open outside diameter 28mm image diameter 22mm Gobos changeable
DMX channels:	14; 16; 21; 24
IP classification:	IP20
Power connection:	Mains input Powercon (blue), mounting version Power supply cord with safety plug (provided)
Power output:	1 x Powercon (gray), mounting version
Cooling fan:	Yes, temperature-controlled
Control:	W-DMX by wireless solution upgradeable
	Stand-alone
	DMX
	RDM
Beam angle:	14°
Case color:	Black
Width:	34,3 cm
Height:	42,8 cm
Depth:	25 cm
Weight:	14,05 kg
DMX channels:	14/16/21/24
DMX connection:	5-pin and 3-pin XLR
Sound-control:	via built-in microphone
LED type:	150 W COB
LED number:	1
Beam angle:	14°
Color-wheel:	8 dichroic filters plus open
Static gobo-wheel:	7 gobos and open
Rotating gobo-wheel:	7 gobos and open
Outside diameter of the gobos:	27 mm
Image diameter of the gobos:	22 mm
Maximum PAN-movement:	630°
Maximum TILT-movement:	270°
Dimensions (L x W x H):	343 x 250 x 428 mm
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
51836892 ROADINGER Flightcase 2x DMH-90/150/DMB-60/PLB-230
Maximum load:	100 kg
Color:	Dark brown laminated
Material:	Birch multiplex 7 mm
Strength:	7 mm
Inside dimension Width:	92,5 cm
Inside dimension Height:	47 cm
Inside Dimension Depth:	43 cm
Width:	96 cm
Height:	72 cm
Depth:	47 cm
Weight:	25,90 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397593600

Support

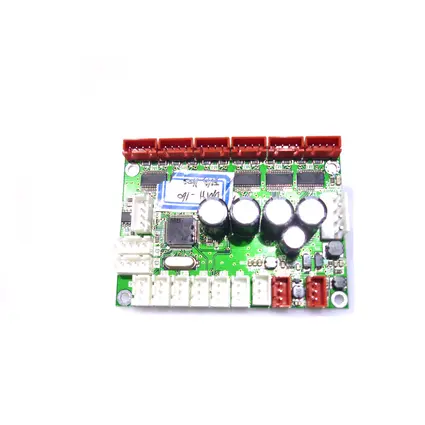

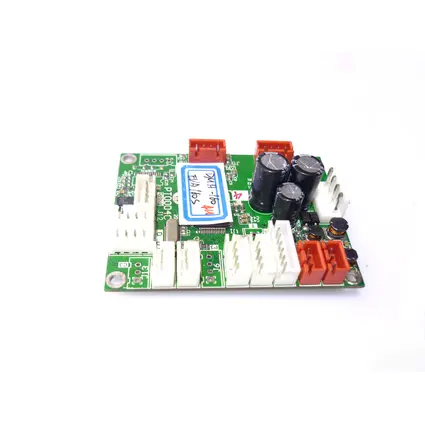

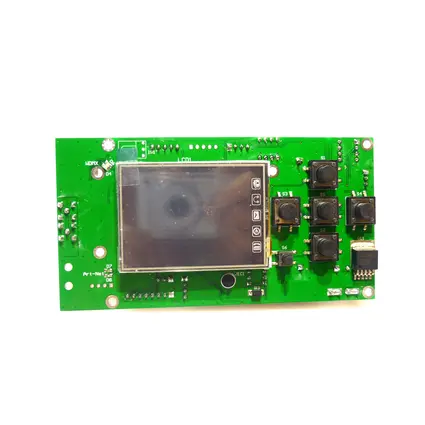

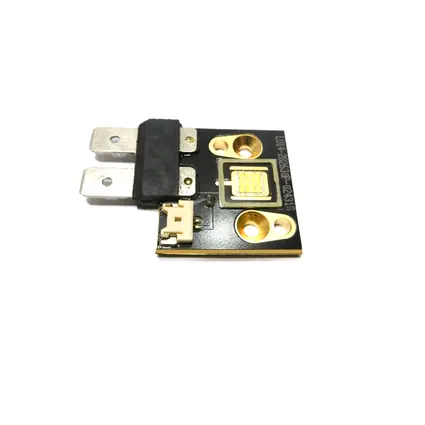

Spare parts
