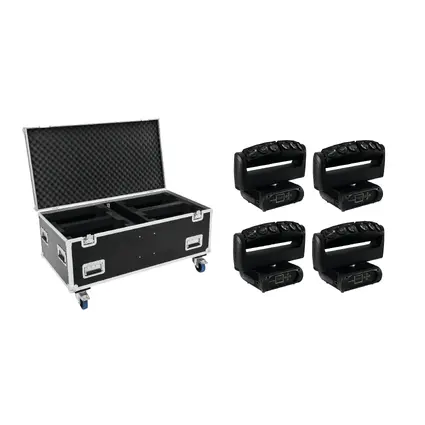

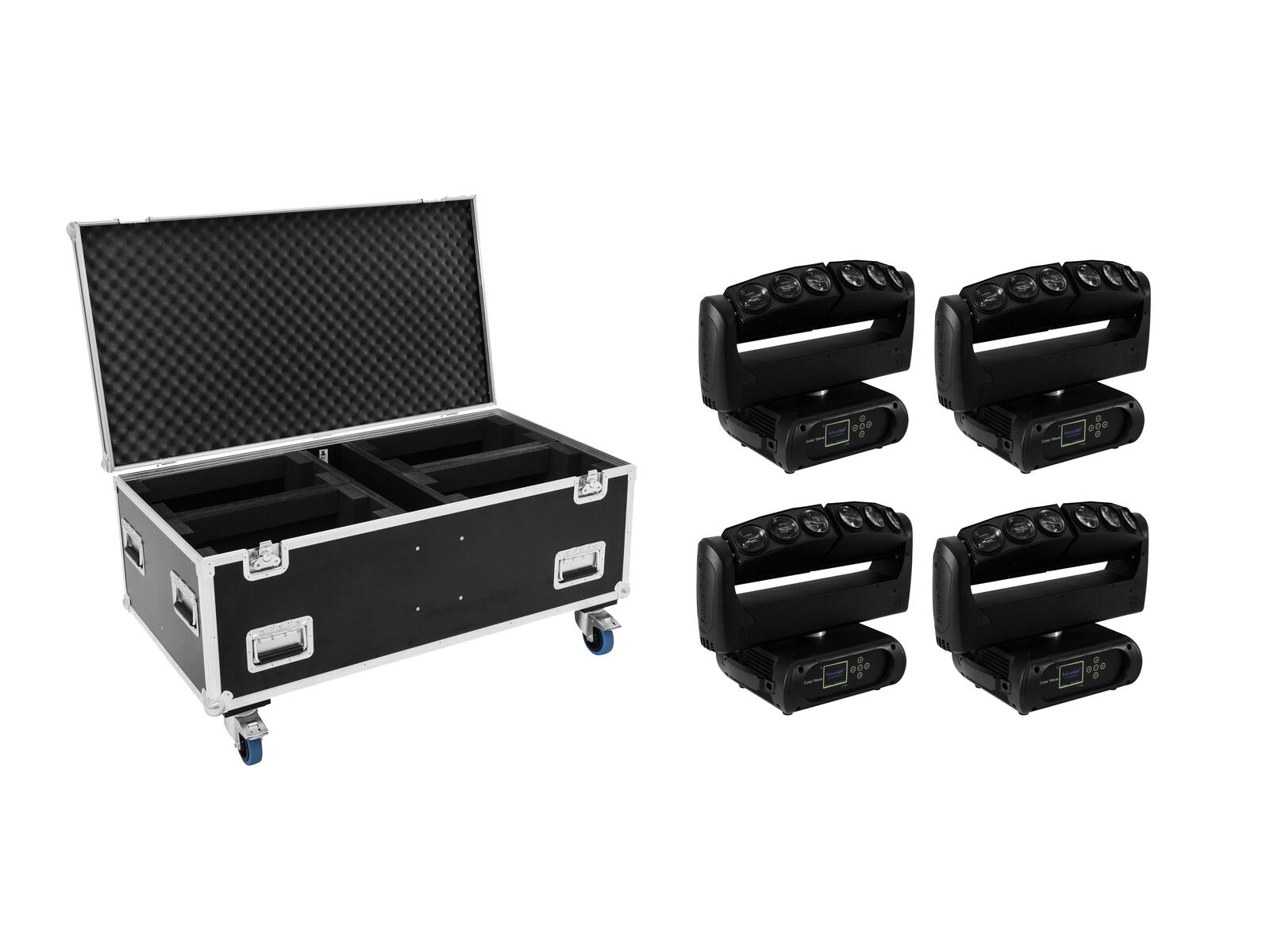

FUTURELIGHT Set 4x Wave LED Moving Bar + Case

FUTURELIGHT



FUTURELIGHT Set 4x Wave LED Moving Bar + Case

Stock for approx. 12 wk(s)
3.199,00
add to cart
Find a dealer
Due to the dimensions of this article, different shipping conditions apply.
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000236

svg
svg
2.5°
svg
svg
7 mm
svg
svg
svg
svg
svg
svg
Features

51839000 FUTURELIGHT Wave LED Moving Bar

PRO Moving Head with two tiltable LED bars and six powerful, white beams

  • TILT movement for each LED bar separately and steplessly adjustable
  • Equipped with six white 20 W LEDs
  • 14, 15, 17 or 18 DMX channels selectable
  • Each LED can be controlled individually
  • Perfect as beam effect into the audience
  • Narrow illumination angle
  • Supports RDM (Remote Device Management)
  • Functions: built-in programs, shutter sequences, dimmer, strobe effect with variable speed, sound-control, Master/Slave operation
  • Automatic position correction
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • PAN angle switchable between 540° and 630°
  • Random strobe effect
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
  • The scenes can be modified via the Control Board or via an external controller and loaded into the memory
  • Number of scenes can be changed individually
  • Software upload by optional accessories via DMX link
  • Switch-mode power supply for operation between 100 and 240 Volts
  • Power connection via Neutrik PowerCon jack and included power cable
  • Feed-through output allows to power up to 8 devices
  • DMX control via every standard DMX controller
  • Case color: Black
  • Effect: Fan effect
  • Power output: 1 x Powercon (Power out) gray, mounting version
  • Power connection: Mains input Powercon (Power-In) blue Power supply cord with safety plug (M) (provided)
  • Control: W-DMX built-in; Sound to light via Microphone; RDM; DMX; Stand-alone
  • LED: 6 x high-power 20 W CW (homogenous color mix)

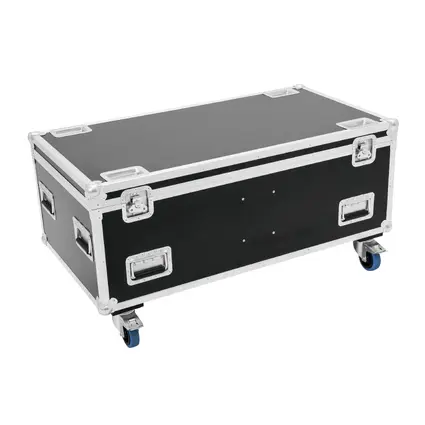

51836719 ROADINGER Flightcase 4x Wave

PRO flightcase for 4 FUTURELIGHT Wave LED Moving bars

  • Suitable for 4 devices and accessories
  • Additional pocket for accessories
  • Inner space with foam packing
  • High quality workmanship with 7 mm birch plywood, dark brown laminated
  • Aluminum profile frame (30 mm) with rounded corners
  • Three-legged medium corner protectors
  • Lid with 2 tip-over locks
  • 4 steering rollers Ø100 mm, 2 with brake
  • 2 big, chromed butterfly locks
  • 8 chromed hinged handles
  • 4 castor dishes
  • Transport aid: With wheels
  • Made in Europe
Technical specifications
51839000 FUTURELIGHT Wave LED Moving Bar
DMX channels:14/15/17/18
DMX connection:5-pin and 3-pin XLR
Sound-control:via built-in microphone
Flash-rate:20 Hz
LED type:20 W, white
LED number:6
Maximum PAN-movement:630°
Maximum TILT-movement:240°
Beam angle:2.5°
Dimensions (L x W x H):250 x 468 x 325 mm
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
DMX channels:14
Weight:9,5 kg
Cooling fan:Yes, temperature-controlled
Power consumption:200 W
Flash rate:1 - 20 Hz
Max. TILT movement:Exact positioning (16 bit resolution) 240° Auto position correction (feedback)
Max. PAN movement:Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback)
Beam angle:2,5°
IP classification:IP20
Laser class:Without laser
Height:32,5 cm
Depth:25 cm
Width:46,8 cm
Power output:Powercon (Power out) gray, mounting version
Power connection:Mains input Powercon (Power-In) blue Power supply cord with safety plug (M)
LED:6 x high-power 20 W CW (homogenous color mix)
Power supply:110-240 V AC, 50/60 Hz
51836719 ROADINGER Flightcase 4x Wave
Strength:7 mm
Dimensions (W x D x H):1150 x 615 x 570 mm
Maximum load:100 kg
Weight:29,70 kg
Width:115 cm
Color:Dark brown laminated
Depth:61,5 cm
Height:57 cm
Material:Birch multiplex 7 mm
Packaging units
PU EAN Weight Dimensions
1 4026397593570
Support
Spare parts
Loading spareparts. Please wait...
Downloads
All images
Name Version Language
20000236-Images.zip
