EUROLITE Set 4x AKKU UP-4 QCL Spot QucikDMX + Case with charging function

EUROLITE

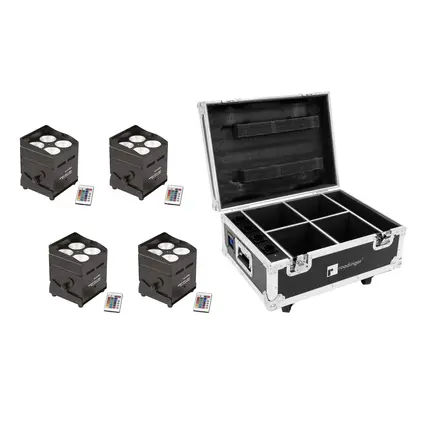

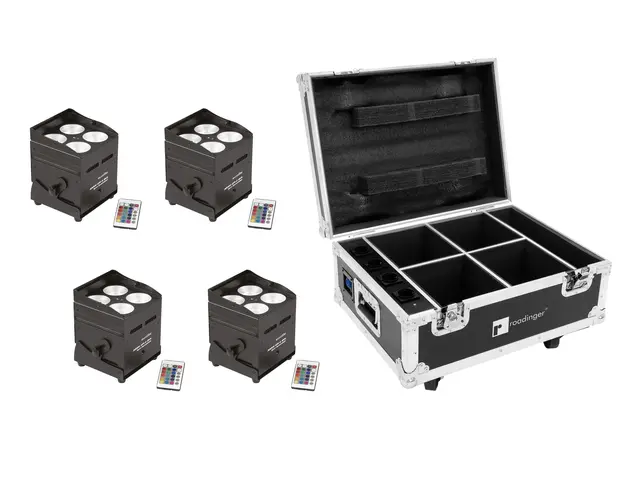

EUROLITE Set 4x AKKU UP-4 QCL Spot QucikDMX + Case with charging function

Stock for approx. 12 wk(s)
1.149,00
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000180

svg
22°
svg
svg
9 mm
svg
svg
svg
svg
svg
svg
svg
svg
svg
Features

41700540 EUROLITE AKKU UP-4 QCL Spot QuickDMX

Bright Uplight with 4 x 8 W 4in1 LED and QuickDMX transceiver

  • Compact and bright
  • Equipped with 4 x 8 W QCL LED in red, green, blue and white
  • With integrated QuickDMX transmitter/receiver for the wireless transmission of DMX512 signals
  • Operation via mains connection or built-in rechargeable lithium-ion battery with up to 9.5 hours operating time
  • Integrated automatic charging of the battery with indicator
  • Controllable via EUROLITE IR-13 remote control; included in the delivery
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • 3, 4, 6, 8 or 10 DMX channels selectable
  • Functions: static colors, stepless RGBW color mixture, internal programs, dimmer, strobe effect with variable speed, sound-control
  • Dimmer speed (step response) adjustable
  • Adjustable microphone sensitivity
  • With integrated folding foot for angled placement by floor installation
  • Addressing via control panel with 4-digit LED display
  • Switch-mode power supply for operation between 100 and 240 volts
  • Power connection via P-Con jack and included power cable with safety plug
  • Feed-through output allows to power up to 8 devices
  • DMX control via any standard DMX controller
  • LED: 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
  • Power connection: Battery/battery pack; Mains input P-Con (Power-In) Power supply cord with safety plug (M) (provided)
  • Power output: 1 x P-Con (Power out) gray, mounting version
  • Control: Master/slave function; IR remote control; DMX; QuickDMX built-in; Stand-alone
  • Projection: flicker-free
  • Case color: Black

Remote control

  • Battery: 1 x Button cell 3.0 V CR2032 lithium manganese built-in

31005125 ROADINGER Flightcase 4x AKKU UP-4 QuickDMX with charging function

PRO flightcase for 4 AKKU UP-4, with charging function

  • Suitable for four EUROLITE AKKU UP-4 QCL Spot QuickDMX (No. 41700540), EUROLITE AKKU UP-1 Glow QCL Flex Spot QuickDMX (No. 41700506)
  • Charges up to four spots
  • Interior and cover upholstered with foam
  • High-quality workmanship with multiplex birch wood, black laminated
  • Aluminum profile frames with rounded edges
  • Three-leg steel ball corners
  • 2 tip-over locks
  • 4 castors, 2 of which with locking brakes
  • 2 chrome butterfly locks
  • 2 chrome case handles
  • 4 stacking dishes for stacking the cases
  • Power connection via P-Con jack and included power cable
  • Power connection: Mains input P-Con (Power-In) Power supply cord with safety plug (M) (provided)
  • Transport aid: With wheels
Technical specifications
41700540 EUROLITE AKKU UP-4 QCL Spot QuickDMX
Battery pack type:Li-ion 14.8 V, 7800 mAh (115.44 Wh)
Battery operation:depending on program used up to 9.5 hours
Recharging time:3 hours
Battery remote control:CR2032 button cell 3 V
DMX channels:3/4/6/8/10
DMX connection:3-pin XLR
Sound-control:via built-in microphone
Wireless signal transmission:2.4 GHz (ISM), 78 channels
LED type:8 W RGBW (4in1)
LED number:4
Beam angle:22°
Dimensions (L x W x H):138 x 167 x 188 mm
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Power supply:110-240 V AC, 50/60 Hz
Power consumption:50 W
LED:4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
DMX channels:3; 4; 6; 8; 10
IP classification:IP20
Mains input P-Con (Power-In) Power supply cord with safety plug (M)
Power connection:Battery/battery pack
Power output:P-Con (Power out) gray, mounting version
Cooling fan:No, cooling by convection
Beam angle:22°
Height:18,8 cm
Width:16,7 cm
Depth:13,8 cm
Weight:3,59 kg
Device
Battery pack type:1 x Lithium ion 14,8 V, 7800 mAh, 115,44 Wh
Accumulator:battery operation up to 9,5h depending on program used
recharging time 3h
Remote control
Battery:1 x Button cell 3.0 V CR2032 lithium manganese built-in
31005125 ROADINGER Flightcase 4x AKKU UP-4 QuickDMX with charging function
Power supply:100-240 V AC, 50/60 Hz
Strength:9 mm
Outside dimensions (W x D x H): 620 x 460 x 405 mm
Inside dimensions (W x D x H):495 x 410 x 170 mm
Compartment dimensions (W x D x H):185 x 195 x 170 mm
Accessory compartment (W x D x H):125 x 410 x 170 mm
Power connection:Mains input P-Con (Power-In) Power supply cord with safety plug (M)
Color:Black laminated
Material:Birch multiplex 9 mm
Height:40,5 cm
Width:62 cm
Depth:46 cm
Weight:15,20 kg
Packaging units
PU EAN Weight Dimensions
1 4026397590210 30,53 kg 82cm x 41cm x 68cm
