FUTURELIGHT Set 4x EYE-19 + Case

svg
svg
svg
6 - 65°
svg
7 mm
svg
svg
svg
svg
svg
svg
svg
svg
FUTURELIGHT

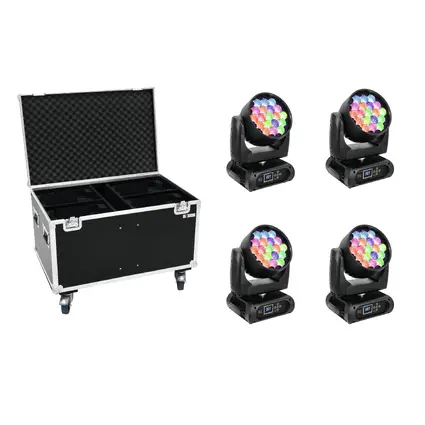

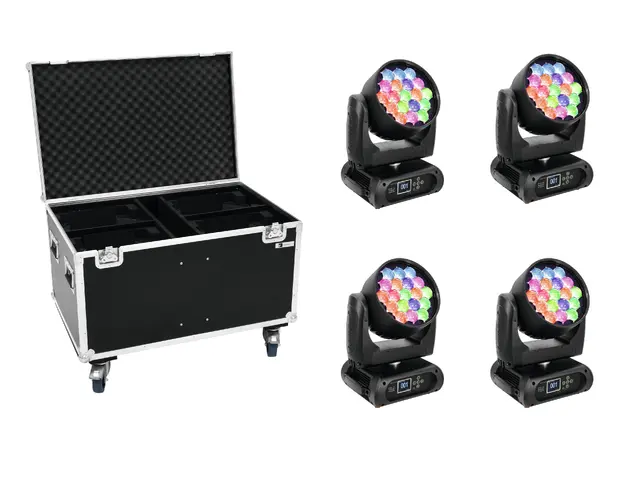

FUTURELIGHT Set 4x EYE-19 + Case

Stock for approx. 12 wk(s)
6.399,00
add to cart
Find a dealer
Due to the dimensions of this article, different shipping conditions apply.
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000158

Features

51841311 FUTURELIGHT EYE-19 RGBW Zoom LED Moving Head Wash

PRO washlight with RGBW color mixing and very large zoom range

  • Equipped with 19 x 15 W quadcolor LED with RGBW colors (Osram)
  • Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
  • Compact housing
  • Supports RDM (Remote Device Management)
  • 18, 19, 20 or 98 DMX channels selectable
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Master dimmer
  • Motorized zoom with 6°- 65° beam angle
  • Each color of the 19 RGBW LEDs can be switched individually
  • Color presets
  • Preset color temperatures
  • Built-in programs
  • Animated and static macros
  • Stepless RGBW color mixture
  • Strobe effect with adjustable speed
  • Random strobe effect
  • Automatic position correction
  • PAN angle switchable between 540° and 630°
  • Sound-controlled via built-in microphone
  • ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included)
  • Switch-mode power supply, automatic power supply adaption between 100 and 240 volts without power selector
  • Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • The scenes can be modified via the Control Board or via an external controller and loaded into the memory
  • Number of scenes can be changed individually
  • Software upload by optional accessories via DMX link
  • Power connection via Neutrik PowerCon jack and included power cable
  • Feed-through output allows to power another device
  • After 8 devices the fixtures must have a renewed connection with the power mains
  • DMX control via every standard DMX controller
  • LED: 19 x high-power 15 W 4in1 QCL RGBW (homogenous color mix)
  • Control: W-DMX by wireless solution upgradeable; RDM; DMX; Sound to light viaMicrophone; Stand-alone
  • Projection: flicker-free

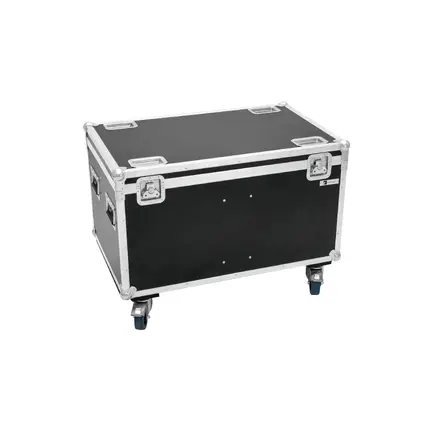

31005095 ROADINGER Flightcase 4x EYE-19

PRO flightcase with castors for 4 x EYE-19 RGBW Zoom LED

  • Developed for 51841311 Futurelight EYE-19 RGBW Zoom MH WASH
  • Suitable for 4 units
  • Interior and cover (not removable) upholstered with foam
  • High-quality workmanship with multiplex birch wood, dark brown laminated
  • Aluminum profile frames (30 mm) with rounded edges
  • Three-leg, medium-sized steel ball corners (chrome)
  • 4 castors (100 mm), 2 of which with locking brakes
  • 4 stacking dishes for stacking the cases
  • 3 hinges
  • 2 high-quality butterfly locks
  • 4 high-quality plated case handles
  • For perfect protection
  • Transport aid: With wheels
  • Made in Europe
Technical specifications
51841311 FUTURELIGHT EYE-19 RGBW Zoom LED Moving Head Wash
Power supply:100-240 V AC, 50/60 Hz
Power consumption:300 W
LED:19 x high-power 15 W 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:Exact positioning (16 bit resolution) 265° Auto position correction (feedback)
Max. PAN movement:Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback)
Flash rate:0 - 18 Hz
Equipment:Zoom motor-driven
DMX channels:18; 19; 20; 98
IP classification:IP20
Power connection:Mains input Powercon (blue), mounting version Power supply cord with safety plug (provided)
Power output:1 x Powercon (gray), mounting version
Cooling fan:Yes, temperature-controlled
Control:W-DMX by wireless solution upgradeable
RDM
DMX
Sound to light via Microphone
Stand-alone
Case color:Black
Width:34,6 cm
Height:44,5 cm
Depth:25 cm
Weight:13,35 kg
Device
Battery pack type:1 x Lithium ion 3,7 V, 1,30 Wh
DMX connection:5-pin and 3-pin XLR
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
31005095 ROADINGER Flightcase 4x EYE-19
Maximum load:100 kg
Color:Dark brown laminated
Material:Birch multiplex 7 mm
Strength:7 mm
Width:91 cm
Height:66 cm
Depth:59 cm
Weight:27,90 kg
Inside dimensions (W x D x H):870 x 550 x 425 mm
Compartment dimensions (W x D x H):370 x 270 x 400 mm
Accessory compartment (W x D x H):95 x 550 x 400 mm
Packaging units
PU EAN Weight Dimensions
1 4026397586183
