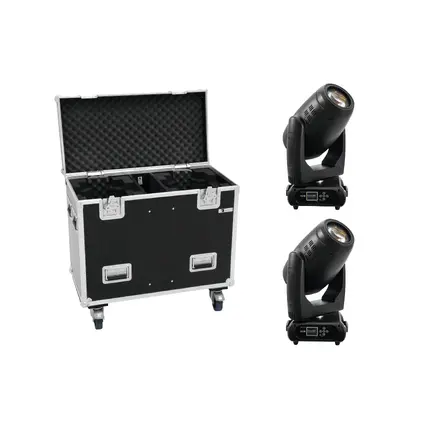

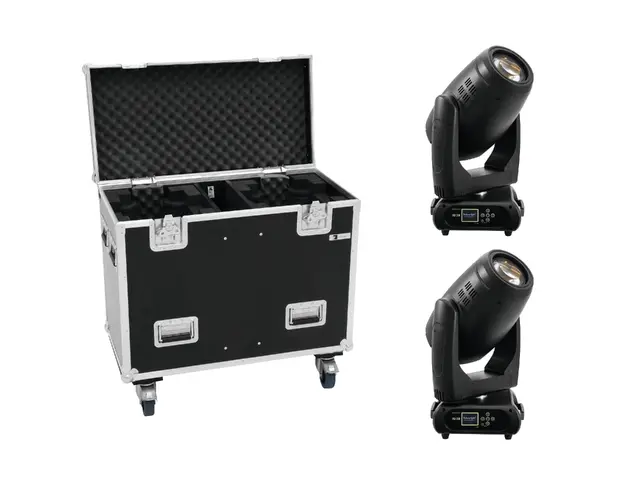

FUTURELIGHT Set 2x PLB-280 + Case

svg
svg
svg
svg
svg
svg
svg
svg
2 - 10°
svg
5,5 - 23°
svg
7 mm
svg
svg
svg
svg
svg
svg
svg
svg
FUTURELIGHT



FUTURELIGHT Set 2x PLB-280 + Case

Stock for approx. 12 wk(s)
3.869,00
add to cart
Find a dealer
Due to the dimensions of this article, different shipping conditions apply.
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000157

51838966 FUTURELIGHT PLB-280 Moving Head Spot/Beam

Make three wishes
The PLB-280 is the fairy godmother among moving heads, as it makes three wishes come true: It's a spot, beam and washlight at the same time. The moving head is equipped with a 280 W strong Osram Sirius discharge lamp and convinces with its powerful performance and of course with its flexibility.
In beam mode, it demonstrates an extremely narrow beam angle of 2°, which can be increased to 10° with the motorized focus. The built-in 8-fold prism multiplies the sharp image and arranges it in a circle, while the 6-fold prism creates a linear image. 14 gobos and 13 colors on the color wheel add more creative possibilities.
Using the moving head as spot, the zoom makes it possible to adjust the beam angle between 5.5° and 23°. In addition to the functions mentioned above, a gobo wheel with 9 rotating gobos can now be used. Gobos can be changed easily and quickly.
Even the desire for a powerful washlight is completely fulfilled by the PLB-280: Via DMX command, the frost filter is moved in front of the discharge lamp. Noteworthy is the fact, that the filter does not absorb as much light as you've seen in other spots. The power of the discharge lamp is large enough to produce a very bright and convincing wash effect. Of course, using the zoom is possible here, too.
Despite the various possibilities this spot offers, the single modes are controllable with only 14 to 23 DMX channels. All told, the PLB-280 is a perfect all-in-one package with powerful performance.
Features

51838966 FUTURELIGHT PLB-280 Moving Head Spot/Beam

PRO spot, beam and washlight Moving Head with 280 W discharge lamp

  • Equipped with an Osram Sirius HRI 280 W discharge lamp
  • Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
  • Supports RDM (Remote Device Management)
  • High PAN/TILT speed
  • 14, 16, 20 or 23 DMX channels selectable
  • Spot, beam and due to the use of the frost filter also wash light in one device
  • Color wheel with 13 different dichroic color filters plus white
  • Rainbow effect with adjustable speed in both directions
  • Effect wheel with rotating 6-facet linear prism, 8-facet prism and frost filter
  • The prism rotate in both directions and at different speeds
  • Gobo wheel 1 with 9 rotating gobos plus open
  • All rotating gobos can be interchanged
  • Slot-in gobo system for exchanging gobos without tools
  • Gobo wheel 2 with 14 static gobos plus open
  • With gobo shake function
  • Strobe effect with adjustable speed
  • Random strobe effect
  • Motorized focus
  • Autofocus
  • Motorized zoom with 2 - 10° beam angle (Beam mode) and 5.5 - 23° beam angle (Spot mode)
  • Dimmer
  • PAN angle switchable between 540° and 630°
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Automatic position correction,
  • Switch-mode power supply, automatic power supply adaption between 100 and 240 Volts without power selector
  • ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included)
  • Control board with graphic LCD for adjusting the DMX-starting address, PAN/TILT reverse, reset, lamp on/off, operating hours
  • DMX-controlled operation or stand-alone operation with master/slave function
  • Number of scenes in Program Run can be changed individually
  • The scenes in Program Run can be modified via the Control Board or via an external controller and loaded into the memory
  • Software upload by optional accessory via DMX link
  • With Osram Sirius HRI 280 W lamp
  • Power connection via Neutrik PowerCon jack and included power cable
  • DMX-control via any standard DMX-controller
  • Color generation: Color wheel 13 dichroitic colors and open
  • Control: W-DMX by wireless solution upgradeable; Stand-alone; DMX; RDM
  • Effect: Strobe effect; Gobo effect; Single Beam

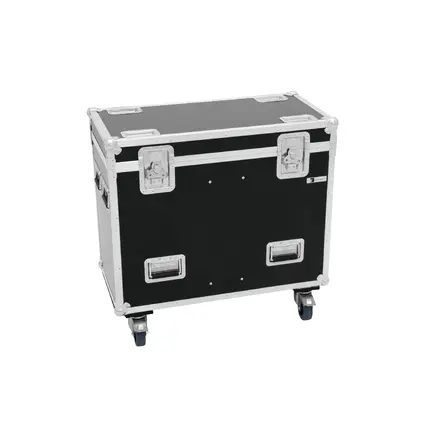

31005094 ROADINGER Flightcase 2x PLB-280

PRO flightcase for 2 PLB-280

  • Fitted for two devices and accessory
  • Additional accessory compartment
  • Interior upholstered with foam
  • High-quality workmanship with birch multiplex, dark brown laminated
  • Aluminum profile frames (25 mm) with rounded edges
  • Three-leg, big steel ball corners
  • Lid with 2 tip-over locks
  • 4 castors (100 mm), 2 of which with locking brakes
  • 2 chrome butterfly locks
  • 8 chrome case handles
  • 4 stacking dishes for stacking the cases
  • Transport aid: With wheels
  • Made in Europe
Technical specifications
51838966 FUTURELIGHT PLB-280 Moving Head Spot/Beam
Power supply:100-240 V AC, 50/60 Hz
Power consumption:360 W
IP classification:IP20
Power connection:Mains input Powercon (blue), mounting version Power supply cord with safety plug (provided)
Max. TILT movement:Exact positioning (16 bit resolution) 270° Auto position correction (feedback)
Max. PAN movement:Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback)
Flash rate:0 - 20 Hz
Equipment:rotating gobo wheel; Prisma Linear; Prisma 8-fold; Focus motor-driven; Frost filter; static gobo wheel; Zoom motor-driven
Color generation:Color wheel 13 dichroitic colors and open
Gobos:static gobo wheel with 14 gobos und open
outside diameter 16mm
image diameter 12mm
DMX channels:14; 16; 20; 23
DMX input:1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version
Cooling fan:Yes, temperature-controlled
Control:W-DMX by wireless solution upgradeable
Stand-alone
DMX
RDM
Beam angle:Spot 5,5 - 23°
beam 2 - 10°
Housing color:Black
Width:40,2 cm
Height:53,4 cm
Depth:36,9 cm
Weight:19,00 kg
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Lamp:1 x conventional with EEI C included.
31005094 ROADINGER Flightcase 2x PLB-280
Maximum load:100 kg
Color:Dark brown laminated
Material:Birch multiplex 7 mm
Strength:7 mm
Width:87 cm
Height:83 cm
Depth:44 cm
Weight:28,50 kg
