FUTURELIGHT Set DMH-60 LED + case

svg
svg
7 mm
svg
4 mm
FUTURELIGHT

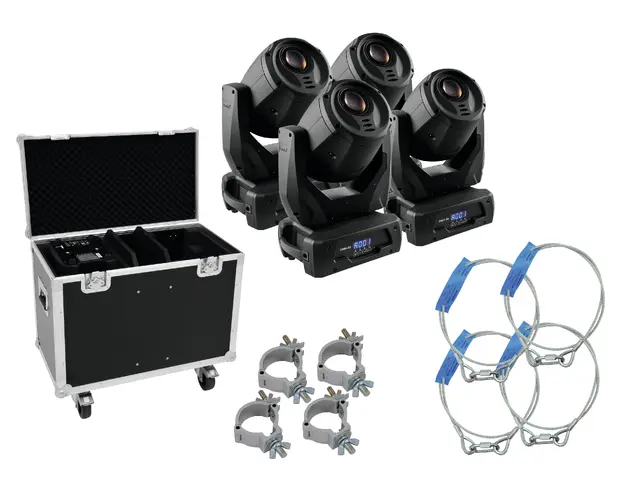

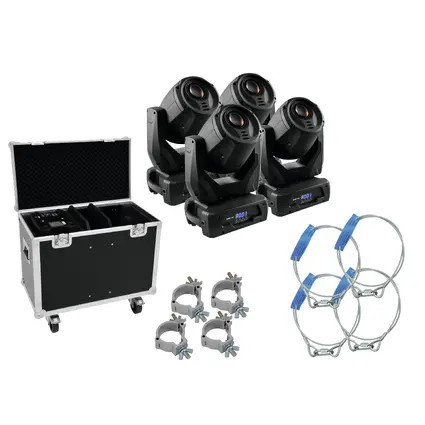

FUTURELIGHT Set DMH-60 LED + case

Item no. 20000011

58010364 EUROLITE Safety Bond AG-15 4x1000mm up to 15kg

EUROLITE Safety bonds
The EUROLITE safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.
The safety bonds are manufactured by a renowned German supplier and are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.
Clearly, every user can secure loads above persons with these safety bonds in all areas where the BGV C1 is required.
Features

51841836 FUTURELIGHT DMH-60 LED Moving Head

High performance LED Moving Head with 60 W LED

  • 1 extra bright 60 W LED for best luminance
  • With integrated wireless receiver for WDMX operation (Wireless Solution - made in Sweden)
  • Effect wheel with rotating 3-facet prism and 3D prism and frost filter
  • Macro function for rotating gobos/rotating prism combinations
  • Color wheel with 8 different dichroic color filters plus white
  • Switchable color change (mode 1: only full colors, mode 2: color change at every position)
  • Rainbow effect with adjustable speed in both directions
  • Gobo wheel with 7 rotating gobos plus open
  • All gobos can be interchanged
  • Slot-in gobo system for exchanging gobos without tools
  • With gobo shake function
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Motorized focus
  • Dimmer
  • Strobe effect with adjustable speed
  • Random strobe effect
  • RDMX (Remote DMX Addressing): DMX address setting via controller possible
  • Power standby mode
  • Automatic position correction
  • PAN angle switchable between 630° and 540°
  • Switch-mode power supply, automatic power supply adaption between 100 and 240 Volts without power selector
  • Sound-controlled via built-in microphone
  • Control board with 4-digit display and foil-keyboard for adjusting the DMX starting address, PAN/TILT Reverse, Program, Reset
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • 56 preprogrammed scenes in Program Run for stand-alone operation
  • Number of scenes in Program Run can be changed individually
  • The scenes in Program Run can be modified via the Control Board or via an external controller and loaded into the memory
  • 7 built-in programs can be called up via DMX controller
  • Software upload by optional FUTURELIGHT ULB-1 upload box via DMX link
  • DMX control via every standard DMX controller
  • Control: Sound to light via Microphone

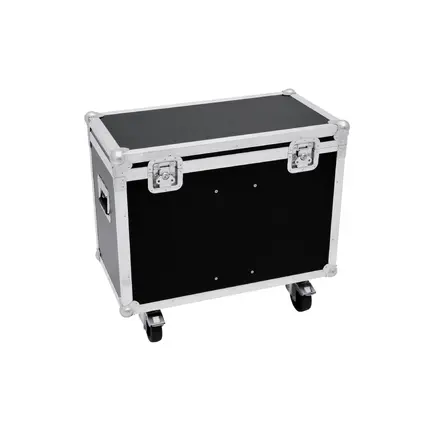

51836890 ROADINGER Flightcase 2x DMH-30/DMH-40

PRO flightcase for 2 x FUTURELIGHT DMH-60/DMH-40/DMH-30 LED Moving Head

  • Developed for 51841836 FUTURELIGHT DMH-60 LED Moving Head, 51841835 FUTURELIGHT DMH-40 LED Moving Head, 51841825 FUTURELIGHT DMH-30 LED Moving Head or comparable Moving Heads
  • Suitable for 2 units
  • Interior and cover upholstered with foam
  • High-quality workmanship with multiplex birch wood, dark brown laminated
  • Aluminum profile frames (30 mm) with rounded edges
  • Three-leg, medium-sized steel ball corners (chromium plated)
  • 4 castors, 2 of which with locking brakes
  • 2 high-quality butterfly locks
  • 2 high-quality plated case handles
  • For perfect protection
  • Transport aid: With wheels

58010364 EUROLITE Safety Bond AG-15 4x1000mm up to 15kg

High-quality safety rope

  • Suitable for securing loads above persons
  • Round strand rope 6 x 19 with fibre core
  • With two thimbles
  • 5 mm quick link (form A) included
  • Test report according to DIN EN 10204 as download
Technical specifications
51841836 FUTURELIGHT DMH-60 LED Moving Head
Power supply:100-240 V AC, 50/60 Hz
Power consumption:245 W
Beam angle:14°
Flash rate:1 - 13 Hz
Gobos:outside diameter 27mm
image diameter 22mm
DMX channels:14
Control:Sound to light via Microphone
Color:Black
Length:301 mm
Width:30,1 cm
Height:40,6 cm
Depth:24,7 cm
Weight:11,40 kg
DMX channels:14
DMX connection:5-pin and 3-pin XLR
Sound-control:via built-in microphone
Wireless signal transmission:2.4 GHz (ISM)
Flash-rate:13 Hz
LED type:60 W, white
LED number:1
Beam angle:14°
Color-wheel:8 dichroic filters plus open
Rotating gobo-wheel:7 gobos and open
Outside diameter of the gobos:27 mm
Image diameter of the gobos:22 mm
Maximum PAN-movement:630°
Maximum TILT-movement:270°
Dimensions (L x W x H):301 x 247 x 406 mm
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
51836890 ROADINGER Flightcase 2x DMH-30/DMH-40
Maximum load:50 kg
Color:Dark brown laminated
Material:Birch multiplex 7 mm
Strength:7 mm
Width:72,5 cm
Height:68 cm
Depth:40 cm
Weight:18,80 kg
Strength:7 mm
Outside dimensions (W x D x H):725 x 400 x 680 mm
Inside dimensions (W x D x H):685 x 360 x 460 mm
59006856 EUROLITE TPC-10 Coupler, silver
Maximum load BGV C1 (8-fold):75 kg
Max. load WLL (4fold):150 kg
Tube diameter sector:48 - 50 mm
Color:Silver
Length:100 mm
Width:30 mm
Depth:90 mm
Weight:0,16 kg
58010364 EUROLITE Safety Bond AG-15 4x1000mm up to 15kg
Secured weight (BGV C1):max. 15 kg
Maximum load WLL (5-fold):175 kg
Design of the core:6 x 19 FC
Strength classification:1770
Standard:DIN EN 12385-4:2008-06, DIN 56927:2009-03
Nominal tensile strenght of rope:1770 N/mm²
Wire surface:Zinc-plated
Color:Silver
Length:100 cm
Diameter:4 mm
Weight:0,10 kg
Lengthweigth:0,0554 kg/m
