FUTURELIGHT Set 4x DMB-150 LED + case

Name: FUTURELIGHT Set 4x DMB-150 LED + case
Brand: FUTURELIGHT

FUTURELIGHT Set 4x DMB-150 LED + case

The article is no longer in our assortment.

Item no. 20000009

Print product

Product badge

58010364 EUROLITE Safety Bond AG-15 4x1000mm up to 15kg

EUROLITE Safety bonds
The EUROLITE safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.
The safety bonds are manufactured by a renowned German supplier and are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.
Clearly, every user can secure loads above persons with these safety bonds in all areas where the BGV C1 is required.

Features

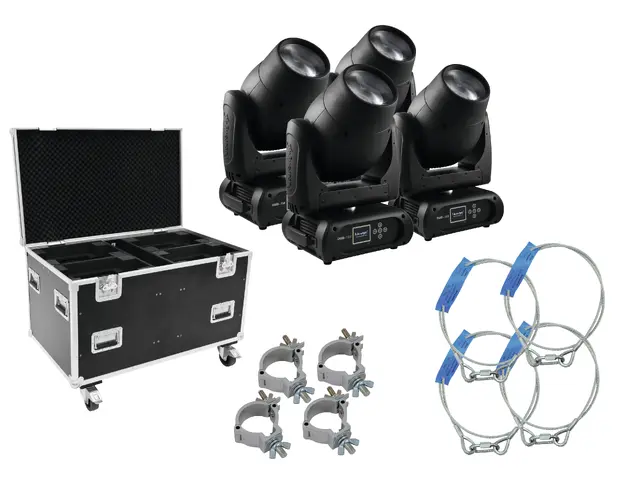

Set consisting of:
4x 51841806: FUTURELIGHT DMB-150 LED Moving Head
1x 51836894: ROADINGER Flightcase 4x DMH-90/150/DMB-160/PLB-230
4x 59006856: EUROLITE TPC-10 Coupler, silver
4x 58010364: EUROLITE Safety Bond AG-15 4x1000mm up to 15kg

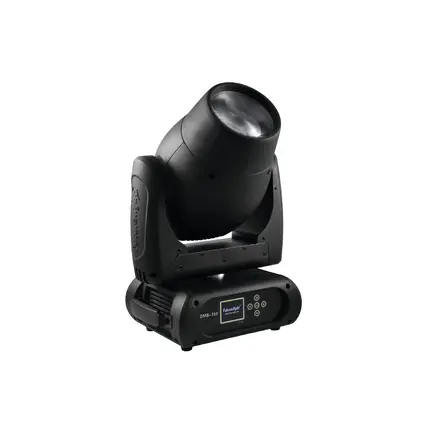

51841806 FUTURELIGHT DMB-150 LED Moving Head

LED Beam with 150 W COB LED

Extremely high light output
Very narrow illumination angle of 5°
Light beam can easily be centered and moved exactly
Supports RDM (Remote Device Management)
10, 12, 13 or 16 DMX channels selectable
Effect wheel with rotating 3-facet prism and 8-facet prism and beam shaper
Color wheel with 8 different dichroic color filters plus white
Rainbow effect with adjustable speed in both directions
Gobo wheel with 11 static gobos plus open
With gobo shake function
Exact positioning via 16 bit PAN/TILT movement resolution
Dimmer
Strobe effect with adjustable speed
Random strobe effect
Automatic position correction
PAN angle switchable between 540° and 630°
Sound-controlled via built-in microphone
Switch-mode power supply, automatic power supply adaption between 100 and 240 Volts without power selector
Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
DMX-controlled operation or stand-alone operation with Master/Slave function
The scenes can be modified via the Control Board or via an external controller and loaded into the memory
Number of scenes can be changed individually
Software upload by optional accessories via DMX link
Power connection via Neutrik PowerCon jack and included power cable
Feed-through output allows to power another device
After every 8 device the fixtures must have a renewed connection with the power mains
DMX control via any standard DMX controller
Color generation: CW
Color generation: Colour wheel
Control: DMX
Control: Stand-alone
Effect: Single Beam

51836894 ROADINGER Flightcase 4x DMH-90/150/DMB-160/PLB-230

PRO flightcase for 4 x FUTURELIGHT DMH-90/DMH-150/DMB-60/DMB-160/PLB-230/EYE-15

Suitable for 4 units
Interior and cover upholstered with foam
High-quality workmanship with multiplex birch wood, dark brown laminated
Aluminum profile frames (30 mm) with rounded edges
Three-leg, medium-sized steel ball corners (chromium plated)
4 castors, 2 of which with locking brakes
2 high-quality butterfly locks
8 high-quality plated case handles
For perfect protection
Made in Europe

59006856 EUROLITE TPC-10 Coupler, silver

Mounting coupler for 50 mm tube, maximum load WLL 150 kg

For 50 mm tube

58010364 EUROLITE Safety Bond AG-15 4x1000mm up to 15kg

High-quality safety rope in accordance with DIN EN 10204

Suitable for securing loads above persons
Round strand rope 6 x 19 with fibre core
With two thimbles
5 mm quick link (form A) included
Test report according to DIN EN 10204 as download

Technical specifications

51841806 FUTURELIGHT DMB-150 LED Moving Head
Power supply:	100-240 V AC, 50/60 Hz
DMX channels:	10/12/13/16
DMX connection:	5-pin XLR
Sound-control:	via built-in microphone
LED type:	Array 150 W
LED number:	1
Beam angle:	5°
Color-wheel:	8 dichroic filters plus open
Static gobo-wheel:	11 gobos and open
Maximum PAN-movement:	630°
Maximum TILT-movement:	270°
Dimensions (L x W x H):	343 x 250 x 428 mm
Weight:	12 kg
Power consumption:	195 W internintern
Beam angle:	5 °
Lamp type:	LED lamp
IP classification:	IP20
Laser class:	Without laser
Cooling fan:	yes, temperature controlled
Height:	42,8 cm
Depths:	24 cm
Width:	34,3 cm
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
51836894 ROADINGER Flightcase 4x DMH-90/150/DMB-160/PLB-230
Strength:	7 mm
Outside dimensions (W x D x H):	1025 x 605 x 720 mm
Inside dimensions (W x D x H):	980 x 560 x 480 mm
Maximum load:	100 kg
Weight:	48 kg
Width:	102,5 cm
Depths:	60,5 cm
Height:	72 cm
Color:	Dark brown laminated
Material:	Birch multiplex 7
Strength:	7 mm
59006856 EUROLITE TPC-10 Coupler, silver
Maximum load BGV C1 (8-fold):	75 kg
Maximum load BGV C1 (10-fold):	60 kg
Maximum load BGV C1 (12-fold):	50 kg
Dimensions (L x W x H):	100 x 90 x 30 mm
Color:	Silver
Max. load WLL (4fold):	150 kg
Maximum load BGV C1 (8-fold):	75 kg
Weight:	0.3 kg
58010364 EUROLITE Safety Bond AG-15 4x1000mm up to 15kg
Temperature range:	-40° C to +100° C
Rope length:	1.00 m
Rope diameter:	4.00 mm
Rope type:	Round strand rope
Nominal tensile strength:	1770 N/mm²
Strength classification:	1770
Diameter:	4 mm
Secured weight (BGV C1):	max. 15 kg
Maximum load WLL (5-fold):	175 kg
Color:	Silver
Nominal tensile strenght of rope:	1770 N/mm²
Design of the core:	6 x 19 FC
Strength classification:	1770
Wire surface:	Zinc-plated
Length:	100 cm
Standard:	DIN EN 12385-4:2008-06, DIN 56927:2009-03
Lengthweigth:	0.0554 kg/m
Weight:	0,095 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397567090	121,50 kg	120cm x 80cm x 110cm
