FUTURELIGHT Set 4x PLB-230 + case

Name: FUTURELIGHT Set 4x PLB-230 + case
Brand: FUTURELIGHT

FUTURELIGHT Set 4x PLB-230 + case

The article is no longer in our assortment.

Item no. 20000008

Print product

Product badge

1.3°

7 mm

4 mm

58010364 EUROLITE Safety Bond AG-15 4x1000mm up to 15kg

EUROLITE Safety bonds
The EUROLITE safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.
The safety bonds are manufactured by a renowned German supplier and are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.
Clearly, every user can secure loads above persons with these safety bonds in all areas where the BGV C1 is required.

Features

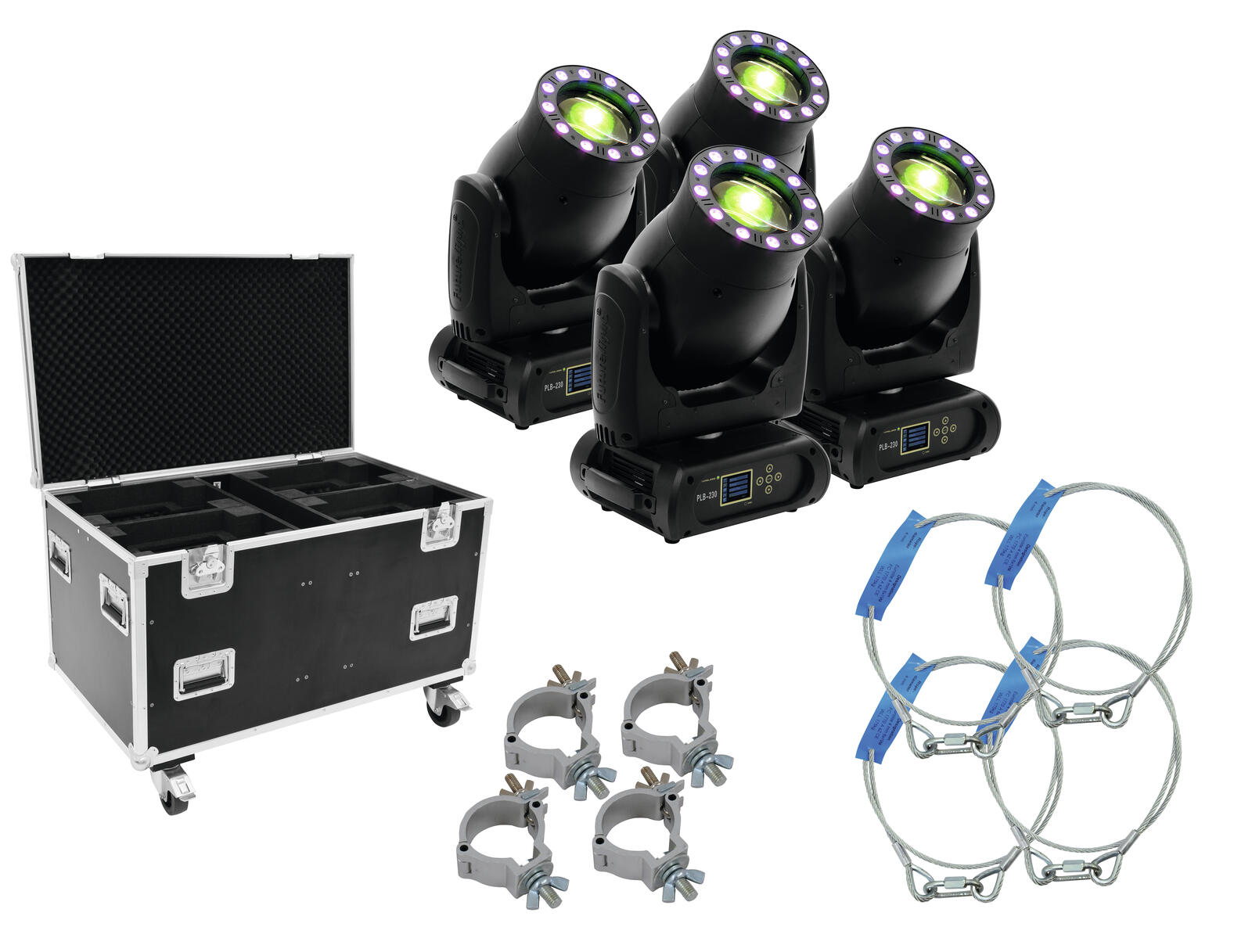

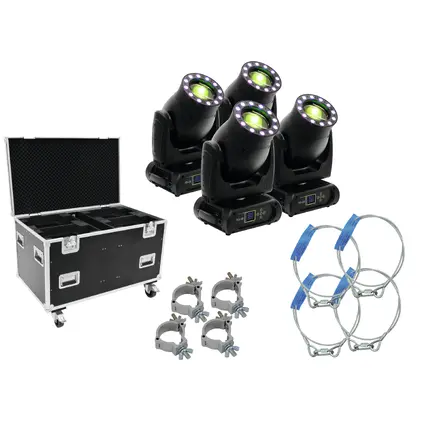

Set consisting of:
4x 51838951: FUTURELIGHT PLB-230 Moving Head
1x 51836894: ROADINGER Flightcase 4x DMH-90/150/DMB-160/PLB-230
4x 59006856: EUROLITE TPC-10 Coupler, silver
4x 58010364: EUROLITE Safety Bond AG-15 4x1000mm up to 15kg

51838951 FUTURELIGHT PLB-230 Moving Head

High-Power Beam with Osram Sirius HRI 230 W lamp and LED ring with RGB color mixture

With integrated wireless receiver for WDMX operation (Wireless Solution - made in Sweden)
Supports RDM (Remote Device Management)
17, 19, 21 or 24 DMX channels selectable
Very narrow beam angle with 1.3°
Light beam is centered exactly
Color wheel with 14 different dichroic color filters plus white
Rainbow effect with adjustable speed in both directions
Effect wheel with rotating 3-facet prism and 8-facet prism and frost filter
Gobo wheel with 8 rotating gobos plus open
All gobos can be interchanged
Slot-in gobo system for exchanging gobos without tools
With gobo shake function
Motorized focus
Strobe effect with adjustable speed
Random strobe effect
Dimmer
Exact positioning via 16 bit PAN/TILT movement resolution
Automatic position correction
Switch-mode power supply
Automatic power supply adaption between 100 and 240 Volts without power selector
Control board with graphic LCD for adjusting the DMX-starting address, PAN/TILT reverse, reset, lamp on/off, operating hours
PAN-angle switchable between 630° and 540°
DMX-controlled operation or stand-alone operation with master/slave function
Number of scenes in Program Run can be changed individually
The scenes in Program Run can be modified via the Control Board or via an external controller and loaded into the memory
Software upload by optional accessory via DMX link
Sound-controlled via built-in microphone
With already installed Osram Sirius HRI 230 W lamp
LED ring equipped with 12 x 3 W TCL (tricolor LED) with RGB colors
Feed-through output allows to power another device
After 8 devices the fixtures must have a renewed connection with the power mains
Power connection via Neutrik PowerCon jack and included power cable
DMX-control via every standard DMX-controller
Color generation: 3in1 TCL RGB
Power connection: Mains input Powercon (blue) Power supply cord with safety plug (M)
Control: W-DMX built-in
Control: RDM
Control: DMX
Control: Sound to light via Microphone
Control: Stand-alone
Effect: Gobo effect

51836894 ROADINGER Flightcase 4x DMH-90/150/DMB-160/PLB-230

PRO flightcase for 4 x FUTURELIGHT DMH-90/DMH-150/DMB-60/DMB-160/PLB-230/EYE-15

Suitable for 4 units
Interior and cover upholstered with foam
High-quality workmanship with multiplex birch wood, dark brown laminated
Aluminum profile frames (30 mm) with rounded edges
Three-leg, medium-sized steel ball corners (chromium plated)
4 castors, 2 of which with locking brakes
2 high-quality butterfly locks
8 high-quality plated case handles
For perfect protection
Transport aid: With wheels
Made in Europe

59006856 EUROLITE TPC-10 Coupler, silver

PRO flightcase for 4 x FUTURELIGHT DMH-90/DMH-150/DMB-60/DMB-160/PLB-230/EYE-15

58010364 EUROLITE Safety Bond AG-15 4x1000mm up to 15kg

High-quality safety rope

Suitable for securing loads above persons
Round strand rope 6 x 19 with fibre core
With two thimbles
5 mm quick link (form A) included
Test report according to DIN EN 10204 as download

Technical specifications

51838951 FUTURELIGHT PLB-230 Moving Head
DMX connection:	5-pin and 3-pin XLR
Wireless signal transmission:	2.4 GHz (ISM)
Color-wheel:	14 dichroic filters plus open
Rotating gobo-wheel:	8 gobos and open
Outside diameter of the gobos:	14 mm
Image diameter of the gobos:	6 mm
LED type:	3 W RGB (3in1)
LED number:	12
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
Lamp:	1 x conventional with EEI C included.
Power supply:	110-240 V AC, 50/60 Hz
Power consumption:	325,00 W
Max. TILT movement:	Exact positioning (16 bit resolution) 270° Auto position correction (feedback)
Max. PAN movement:	Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback)
Flash rate:	0 - 20 Hz
Equipment:	rotating gobo wheel
Color generation:	3in1 TCL RGB
Laser class:	Without laser
DMX channels:	17; 19; 21; 24
IP classification:	IP20
Power connection:	Mains input Powercon (blue) Power supply cord with safety plug (M)
Cooling fan:	Yes, temperature-controlled
Control:	W-DMX built-in
	RDM
	DMX
	Sound to light via Microphone
	Stand-alone
Beam angle:	1,3°
Case color:	Black
Width:	25 cm
Height:	34,3 cm
Depth:	42,4 cm
Weight:	16,20 kg
51836894 ROADINGER Flightcase 4x DMH-90/150/DMB-160/PLB-230
Strength:	7 mm
Outside dimensions (W x D x H):	1025 x 605 x 720 mm
Inside dimensions (W x D x H):	980 x 560 x 480 mm
Maximum load:	100 kg
Color:	Dark brown laminated
Material:	Birch multiplex 7 mm
Width:	102,5 cm
Height:	72 cm
Depth:	60,5 cm
Weight:	41,90 kg
59006856 EUROLITE TPC-10 Coupler, silver
Dimensions (L x W x H):	100 x 90 x 30 mm
Maximum load BGV C1 (8-fold):	75 kg
Max. load WLL (4fold):	150 kg
Tube diameter sector:	48 - 50 mm
Color:	Silver
Length:	100 mm
Weight:	0,16 kg
58010364 EUROLITE Safety Bond AG-15 4x1000mm up to 15kg
Temperature range:	-40° C to +100° C
Rope length:	1.00 m
Rope diameter:	4.00 mm
Rope type:	Round strand rope
Nominal tensile strength:	1770 N/mm²
Strength classification:	1770
Secured weight (BGV C1):	max. 15 kg
Maximum load WLL (5-fold):	175 kg
Design of the core:	6 x 19 FC
Strength classification:	1770
Standard:	DIN EN 12385-4:2008-06, DIN 56927:2009-03
Nominal tensile strenght of rope:	1770 N/mm²
Wire surface:	Zinc-plated
Color:	Silver
Length:	100 cm
Diameter:	4 mm
Weight:	0,10 kg
Lengthweigth:	0,0554 kg/m

Packaging units

PU	EAN	Weight	Dimensions
1	4026397567083	137,50 kg	120cm x 80cm x 110cm
