Pocket transmitter with lavalier microphone
OMNITRONIC UHF-200 BP Bodypack 824.925MHz

mpn13063238-omnitronic-uhf-200-bp-bodypack-824925mhz-MainBild
download image
Detail images (5 overall)
mpn13063238-omnitronic-uhf-200-bp-bodypack-824925mhz-Bild-1
mpn13063238-omnitronic-uhf-200-bp-bodypack-824925mhz-Bild-2
mpn13063238-omnitronic-uhf-200-bp-bodypack-824925mhz-Bild-3
mpn13063238-omnitronic-uhf-200-bp-bodypack-824925mhz-Bild-4
mpn13063238-omnitronic-uhf-200-bp-bodypack-824925mhz-Bild-5
OMNITRONIC

Pocket transmitter with lavalier microphone

OMNITRONIC UHF-200 BP Bodypack 824.925MHz

The article is no longer in our assortment.

Item no. 13063238

Print product
Product badge
Features

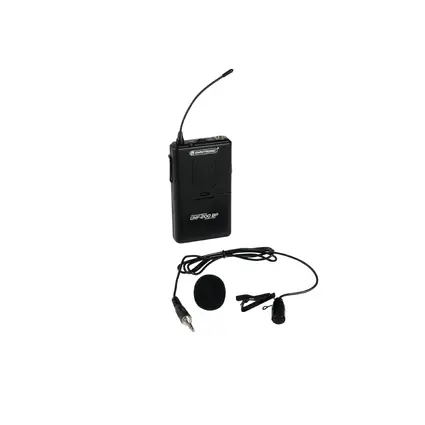

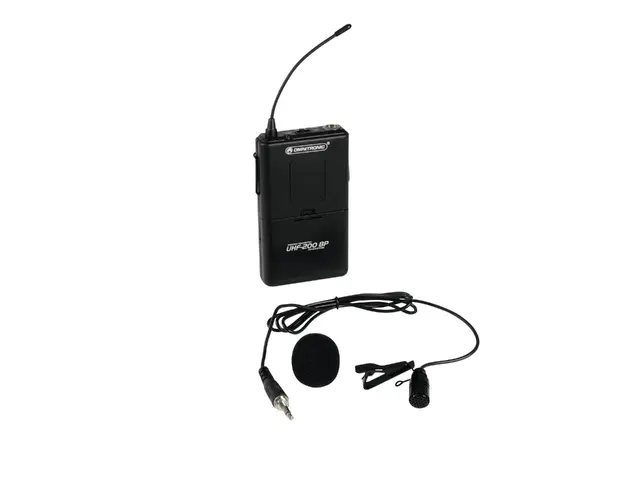

Pocket transmitter with lavalier microphone

  • Pocket transmitter as UHF PLL system, matching receivers with the same carrier frequency
  • Operation in the Duplex Gap 823-832 MHz
  • Incl. lavalier microphone
  • Transmitting power 10 mW
  • Sensitivity adjustable
  • Power LED
  • Mute switch
  • Operation via 2 x 1.5 V batteries, type AA
  • License-free in Germany and 13 other EU countries
  • Polar pattern: Cardioid
Technical specifications
Type:Bodypack with microphone
Capsule type:Dynamic
Polar pattern:Cardioid
Battery:2 x Mignon (AA) (provided)
Frequency range:40 - 18000 Hz
Width:65 cm
Height:2.5 cm
Depth:20 cm
Carrier frequency:824.925 MHz
Coverage:50 m (with line-of-sight)
RF power output:10 mW
Modulation method:F3E
S/N ratio:>105 dB
Selectivity:>80 dB
T.H.D.:<0.5 % at 1 kHz
Connection:3.5 mm jack
Weight:75 g
Packaging units
PU EAN Weight Dimensions
1 4026397533682 0,17 kg 18,5cm x 13cm x 3,5cm
50 4026397594249 9,50 kg 42cm x 38cm x 35cm
100 4026397533699 17,40 kg 68cm x 38cm x 39cm
