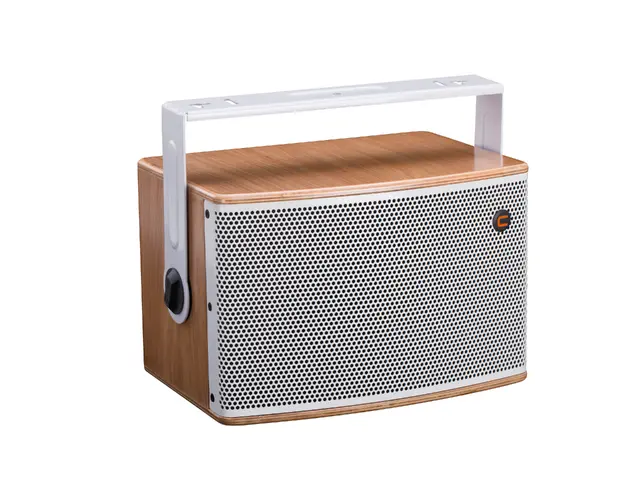

Big sound in small package, mounting bracket included
| Power: | Program: 400W Rated: 200W RMS |
| Frequency range: | 52 - 22000 Hz |
| Sensitivity: | 92 dB (1W/1m) |
| Max. SPL: | 121 dB |
| Dispersion angle: | 80° x 80° |
| Impedance: | 8 ohms |
| Attachment system: | Panning and tilting mounting bracket for ceiling or wall installation in most varying angles Mounting bracket |
| Connections: | Input: speaker via screw terminal |
| Crossover frequency: | Passive High-pass 2400 Hz, 12db/oct on LF Low-pass 2400 Hz, 18db/oct on HF Recommended High-pass 30 Hz, 24db/oct in full-range mode High-pass 60-140 Hz with iFIX13S or iFIX17S subwoofer |
| Speaker: | 1 x woofer 7,5" with ferrit magnet Diaphragmmaterial: Ketone-Polymer Voice coil lows 2" 1 x compression tweeter highs 0,75" Voice coil compression tweeter highs 1" |
| Type of speaker: | On ceiling/on wall speaker; coaxial speaker |
| Material: | Birch multiplex, 15 mm, CNC made with tongue and grove assembly |
| Color: | Nature, painted; any RAL color available on request |
| Dimensions: | Width: 37 cm Depth: 26,8 cm Height: 24,5 cm |
| Weight: | 10,20 kg |
