Compact line array for permanent installations and touring purposes
PSSO CLA Basic System MK2 S complete

Name: PSSO CLA Basic System MK2 S complete
Brand: PSSO

Compact line array for permanent installations and touring purposes

PSSO CLA Basic System MK2 S complete

The article is no longer in our assortment.

Item no. 11041056

Print product

Product badge

11040910 PSSO CLA-115 LINE ARRAY Subwoofer

Powerful bass,
perfectly corresponding to the tops. The bolting inside provides additional reinforcement. The U-Turn-Rigging-System alleviates the installation. All you have to do is to simply turn down the connectors and secure them with quicklock pins.

Features

Set consisting of:
2x 11040910: PSSO CLA-115 LINE ARRAY Subwoofer
2x 11040950: PSSO Flying Bracket CLA-228/CLA-115
8x 11040901: PSSO CLA-228 MK2 LINE ARRAY Top

Compact line array for permanent installations and touring purposes

Small basis set most suitable for live music or clubs with several hundred people, also applicable as groundstack
Time saving 2-man installation directly from the transport case
Low weight of the whole construction and reduced demands for the flying points
Tight locking pins eliminating vibration noise
Flying hardware regularly tested by an independent and accredited testing institute

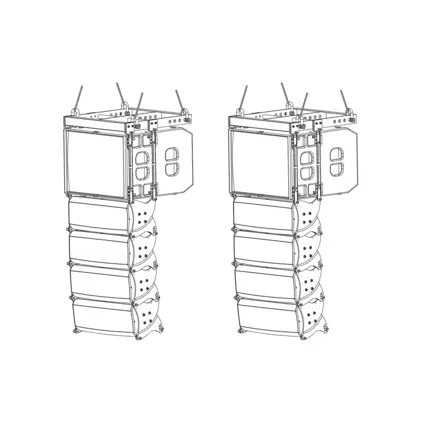

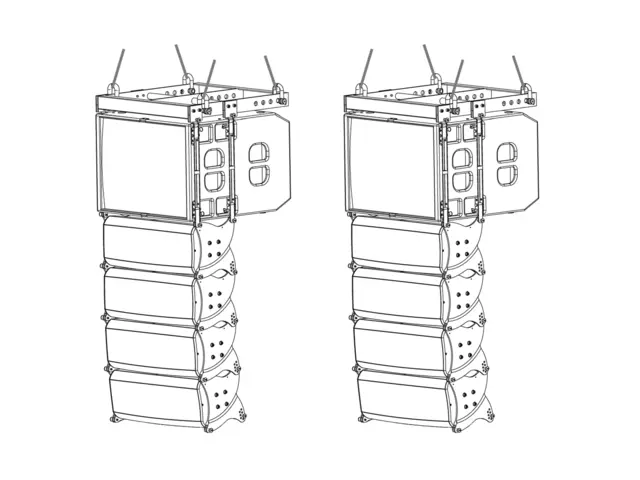

The set includes two CLA-115 bass reflex subwoofers and eight CLA-228 MKII tops as well as two matching flying brackets

11040910 PSSO CLA-115 LINE ARRAY Subwoofer

Subwoofer, 15" woofer, 500 W RMS, 8 ohms, can be flown

Compact line array for permanent installations and touring purposes
Powerful bassreflex subwoofer
38 cm woofer (15") with 100 mm voice coil with aluminum chassis
Housing made of several layer 15 mm birch plywood
Extremely rugged surface finish
No disturbing steel parts due to U-Turn Rigging System
Easy rigging with captive quick release pins
Tight locking pins eliminating vibration noise
Flying hardware regularly tested by an independent and accredited testing institute
Integrated locking-system for optional wheel boards
4 rubber feet with fitting sinkings on the top
Transport aid: Wheelboard optional

11040950 PSSO Flying Bracket CLA-228/CLA-115

Flying bracket for PSSO Line Array systems CLA-228 and CLA-115

Flying hardware regularly tested by an independent and accredited testing institute
LGA tested

11040901 PSSO CLA-228 MK2 LINE ARRAY Top

Top speaker, 2 x 8" woofer, 1,73" driver, MF: 300 W RMS, HF: 60 W RMS

Improved MKII version with BEYMA drivers
Compact line array for permanent installations and touring purposes
Time saving 2-man installation directly from the transport case
Lightweight housing due to high-quality plastic
Low weight of the whole construction and reduced demands for the flying points
Elegant housing design for avoiding resonance and standing waves
Two powerful 20 cm low/mid neodymium magnets (2 x 8")
4.4 cm neodymium driver (1.73") with titanium diaphragm
Specially designed waveguide
Maximum efficiency due to biamped control
Wide horizontal dispersion angle of 100°
Curving adjustable between 0° and 12°
Easy rigging with captive quick release pins
Tight locking pins eliminating vibration noise
Flying hardware regularly tested by an independent and accredited testing institute

Technical specifications

Frequency range:	42 - 200 Hz
Weight:	53 kg
Top
Width:	67 cm
Height:	28,5 cm
Depth:	28,5 cm
Bass
Width:	67 cm
Height:	68 cm
Depth:	48 cm
CLA-115:
Rated power:	500 W RMS
Program power:	1000 W
Components:	38 cm woofer (15")
Connection:	2 Speaker sockets (4-pin)
Sensitivity:	98 dB
Maximum SPL:	125 dB
Impedance:	8 ohms
Dimensions (H x W x D):	480 x 670 x 680 mm
CLA-228MKII:
MF rated power:	300 W RMS
HF rated power:	60 W RMS
MF program power:	600 W
HF program power:	120 W
Components:	2 x 20 cm woofer (2 x 8"), 4.4 cm driver (1.73")
Connection:	2 Speakon sockets (4-pin)
MF sensitivity:	96 dB
HF sensitivity:	104 dB
MF maximum SPL:	123 dB
HF maximum SPL:	124 dB
Impedance:	MF 16 ohms / HF 16 ohms
Crossover frequency:	1.8 kHz
Dispersion angle:	H=100°, V=3°
Dimensions (H x W x D):	285 x 670 x 285 mm
Weight:	18 kg
Flying bracket:
Maximum load BGV C1 (8-fold):	400 kg
Maximum load BGV C1 (10-fold):	320 kg
Maximum load BGV C1 (12-fold):	260 kg
Dimensions (L x W x H):	680 x 632 x 62 mm
Weight:	17 kg
11040910 PSSO CLA-115 LINE ARRAY Subwoofer
Rated power:	500 W RMS
Program power:	1000 W
Woofer:	(15") approx 38 cm
Number of woofers:	1 pc/pcs
Frequency range:	42 - 200 Hz
Sensitivity:	98 dB (1W/1m)
Impedance:	8 Ohm
Connections:	2 x Speaker
Width:	66,8 cm
Height:	48 cm
Depth:	68 cm
Weight:	49,85 kg
Components:	38 cm woofer (15")
Connection:	2 Speaker sockets (4-pin)
Sensitivity:	98 dB
Maximum SPL:	125 dB
11040950 PSSO Flying Bracket CLA-228/CLA-115
Max. load WLL (4fold):	800 kg
Width:	63,2 cm
Height:	6,2 cm
Depth:	68 cm
Weight:	16,80 kg
11040901 PSSO CLA-228 MK2 LINE ARRAY Top
Frequency range:	68 - 20000 Hz
Crossover frequency:	1800 Hz
Impedance:	4/8 ohms biamp
Width:	67 cm
Height:	28,5 cm
Depth:	28,5 cm
Weight:	19,15 kg
MF rated power:	300 W RMS
HF rated power:	60 W RMS
MF program power:	600 W
HF program power:	120 W
Components:	2 x 20 cm woofer (2 x 8"), 4.4 cm driver (1.73")
Connection:	2 Speakon sockets (4-pin)
MF sensitivity:	96 dB
HF sensitivity:	104 dB
MF maximum SPL:	123 dB
HF maximum SPL:	124 dB
Impedance:	MF 16 ohms / HF 8 ohms
Dispersion angle:	H=100°, V=3°

Packaging units

PU	EAN	Weight	Dimensions
1	4026397568578
