Active 2-way speaker system for PA and DJ applications, 550 W max.

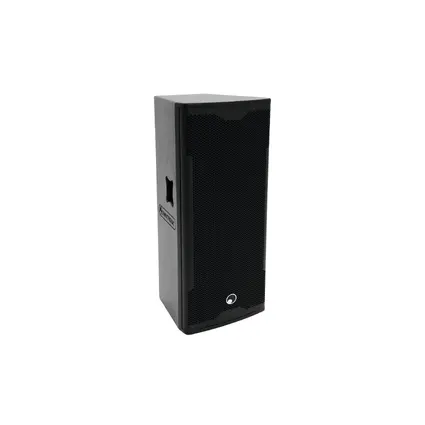

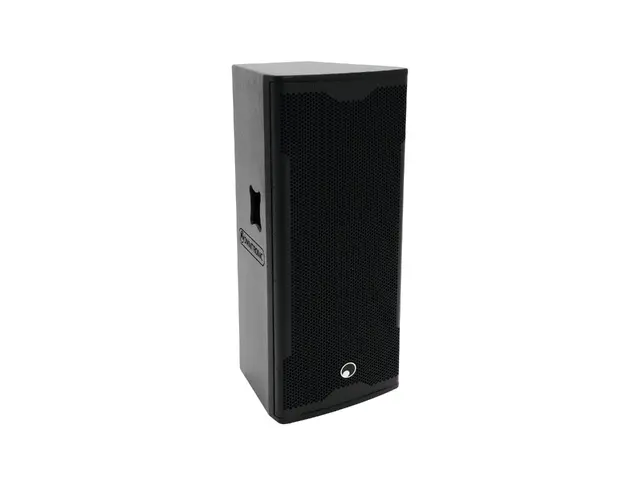

OMNITRONIC AR-212A Active 2-way speaker

OMNITRONIC

Active 2-way speaker system for PA and DJ applications, 550 W max.

OMNITRONIC AR-212A Active 2-way speaker

Item no. 11038840

Features
  • Active full-range system with class D circuitry
  • 2-channel power amplifier with integrated active crossover network
  • 2-way system, 550 W max.
  • 2 x 30 cm subwoofer in bassreflex cabinet
  • 12 cm titanium driver system
  • Mic and line inputs (XLR/6.3 mm jack) with separate level controls
  • Master control with 2-band EQ
  • Parallel line output for linking further active speaker systems
  • Limiter and speaker switch-on delay
  • MDF enclosure with scratch-resistant lacquer surface, impact-resistant steel grille
  • Protection against short-circuit and overheat
  • For mobile live and DJ applications
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
LF amplifier:500 W max.
HF amplifier:50 W max.
Components:2 x 30 cm woofer (12"), 11.5 cm horn (4.5")
Line input:combination XLR/6.3 mm jack
Microphone input:combination XLR/6.3 mm jack
Line output:XLR (parallel output)
Dimensions (H x W x D):900 x 410 x 385 mm
Power consumption:650.00 W
Weight:35 kg
Frequency range:40 - 20000 Hz
Height:38,5 cm
Depths:41 cm
Width:90 cm
Packaging units
PU EAN Weight Dimensions
1 4026397477764 39,00 kg 51cm x 45,5cm x 98cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00074292.pdf 1.00 de/en
Catalog pages
Name Version Language
00087005.pdf 23.00 de
00087585.pdf 23.00 en
All images
Name Version Language
11038840.zip
