Active 2-way speaker-system
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 200,00 W |
| output: | max. 200 W |
| Frequency range: | 55 - 18000 Hz |
| Width: | 53 cm |
| Height: | 34,5 cm |
| Depth: | 31 cm |
| Weight: | 13,15 kg |
| Dimensions (H x W x D): | 530 x 310 x 345 mm |
| Speaker-system: | |
| Rated power: | 120 W RMS |
| Program power: | 240 W |
| Components: | 25 cm woofer (10"), 2.5 cm horn (1") |
| Inputs: | XLR/jack |
| Dispersion angle: | 90° x 40° |
| Maximum SPL: | 114 dB |
| Impedance: | 8 ohms |
| LF-amplifier: | |
| Maximum power output: | 200 W / 4 ohms |
| Distortion: | 0.1 % |
| HF-amplifier: | |
| Maximum power output: | 40 W / 4 ohms |
| Distortion: | 0.1 % |
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397288179 | 14,70 kg | 41cm x 38cm x 63cm |
| Name | Version | Language |
|---|---|---|
| 11038712-Manual-20764-1.100-de_en.pdf (2 MB) | 1.100 | de_en |
| Name | Version | Language |
|---|---|---|

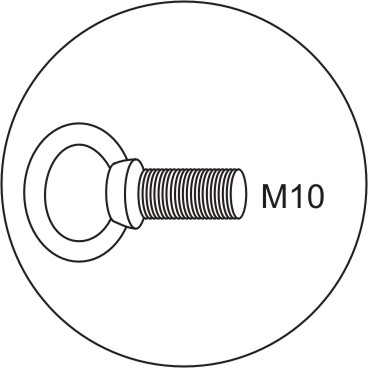

| 11038712-Illustration-28174-Ring-bolt-M10-17mm-de.jpg (18 KB) | 0.000 | de |
| Name | Version | Language |
|---|---|---|
| 11038712-Page-67073-21.00-de.pdf (406 KB) | 21.00 | de |
| 11038712-Page-67832-21.00-en.pdf (403 KB) | 21.00 | en |
| Name | Version | Language |
|---|---|---|
| 11038712-Images.zip |
