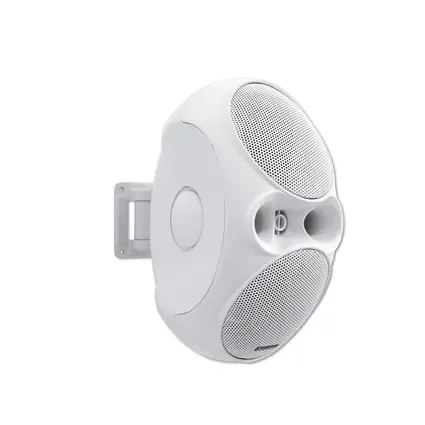

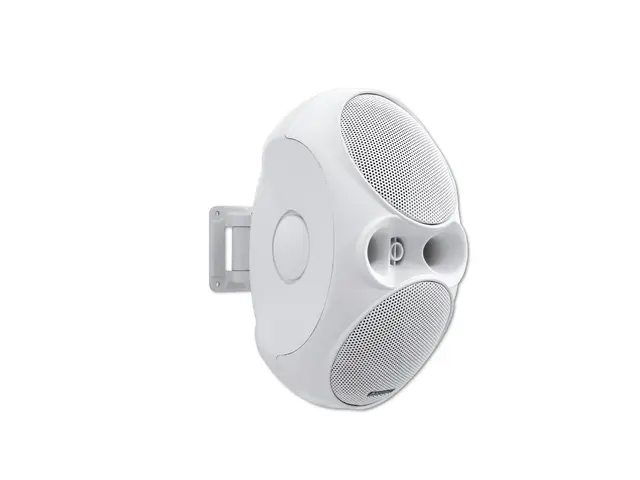

Active design speaker pair
OMNITRONIC EG-40A, active,white/set

OMNITRONIC

Active design speaker pair

OMNITRONIC EG-40A, active,white/set

Item no. 11036866

Features
  • High-quality sound, capable of high volumes due to 2-way system
  • 2 x 10 cm woofer (2 x 4") and 2.5 cm tweeter (1")
  • 2-way tone control and level control
  • Signal input and output via balanced XLR connectors
  • Oval-shaped design cabinet with bass-reflex system
  • White or black plastic housing (ABS) with metal grille
  • Packed as a pair (2 pieces)
  • Delivery includes mounting bracket (adjustable at will) for ceiling or wall installation
  • Ideal for decentral sound-surroundings in bars, lounges, shops, etc.
Technical specifications
Power supply:230 V AC, 50 Hz
Rated power:30 W RMS
Program power:50 W
Components:2 x 10 cm woofer (2 x 4"), 2.5 cm horn (1")
Connection: 3-pin XLR
Maximum SPL:90 dB
Impedance:4 ohms
Frequency range:60-20000 Hz
Dimensions (H x W x D):322 x 128 x 230 mm
Power consumption:70.00 W
Weight:4 kg
Packaging units
PU EAN Weight Dimensions
1 4026397325188 8,40 kg 40cm x 39cm x 30,5cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00032453.pdf 1.10 de/en
All images
Name Version Language
11036866.zip
