CD player for DJs

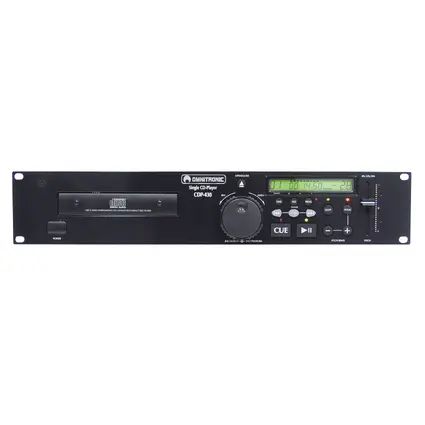

OMNITRONIC CDP-430 Single CD player

OMNITRONIC

CD player for DJs

OMNITRONIC CDP-430 Single CD player

Item no. 10602259

The CD-player not only for discotheques! With a ± 12 % pitch control and a loop-function for repeating a memorized sequence, the CDP-430 meets all professional requirements. The integrated cue-function provides the possibility to locate the exact starting point of a song. A high-quality laser-unit guarantees reliability - even under hard professional conditions.
Features
  • All functions located in a well-structured operating field
  • Comfortable track selection via Skip buttons and +10 button
  • Large Play/Pause button and Cue button
  • Auto Cue function: the player automatically jumps to where the music starts
  • Back Cue function: by pressing the Cue button, the player returns to the track start or Cue point
  • Ergonomic LCD of all operation modes
  • Display switchable from track remain time to track playback time
  • Visual warning from 15 seconds before track end
  • Pitch adjustment via pitchfader is displayed
  • Pitch Bend buttons for synchronizing the bass beat of 2 signal sources
  • Pitch adjustment via pitchfader
  • Speed control range adjustable to ±8 %, ±12 % or ±16 %
  • Jog/Shuttle wheel for quick track selection and framewise search (1/75 sec)
  • Sequence playback via Loop button possible
  • Up to 20 tracks can be programmed
  • Single mode for playing one track only
  • Open/Close button locked in playback mode
  • LED display of all important functions
  • With additional digital ouput
  • Rack installation
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
Type:Single Compact Disc Player
Available disc:Standard CDs (8 and 12 cm)
Quantisation:D/A converter: 1 bit
Sampler frequency:44.1 kHz
Frame accuracy:1/75 sec
Program memory:Up to 20 songs
Pitch adjustment:±8 %, ±12 %, ±16 %
Display:Remaining track time and track playback time
Distortion:0.02 %
S/N ratio:88 dB
Channel seperation:80 dB
Frequency range:20-20000 Hz, ±1 dB
Audio output:unbalanced via RCA
Output level:2 Vrms
Digital ouput:unbalanced via RCA
Dimensions:483 x 88 x 264 mm
Rack installation
Power consumption:14.00 W
Weight:4,5 kg
Height:8,9 cm
Depths:26,4 cm
Width:48,3 cm
Packaging units
PU EAN Weight Dimensions
1 4026397061284 5,37 kg 53,5cm x 33cm x 17,5cm
