Reliable amplifier for starters

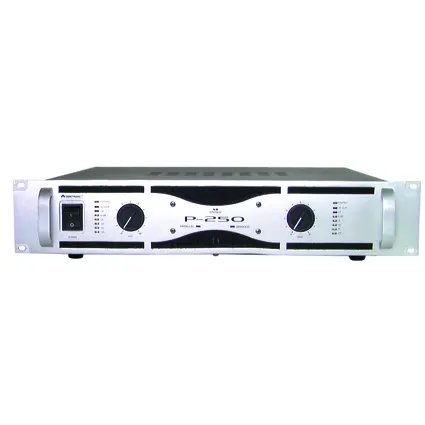

OMNITRONIC P-250 amplifier, 2x125W/4 ohms

OMNITRONIC

Reliable amplifier for starters

OMNITRONIC P-250 amplifier, 2x125W/4 ohms

Item no. 10451110

Features
  • 2 x 125 W/4 ohm
  • Enormous power with highest brilliance
  • 2 gain controls on the front panel
  • All operation modes controllable via LEDs
  • LED intensity adjustable via brightness control on the rear panel
  • Signal inputs via XLR female or 6.3 mm jack socket
  • Input sensitivity adjustable via selector on the rear panel
  • Speaker connection via lockable Speaker plugs or Banana/screw combination
  • With limiter
  • Ground Lift switch against humming
  • Bridged switch for bridging
  • Many protection circuits for optimized equipment protection
  • Very rugged housing
  • Rack installation
  • High power/weight-relation
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
Power range:230 V ±10 % (207-253 V)
Momentary music peak power at 1 kHz:400 W / 4 ohms
Maximum power output:2 x 140 W / 4 ohms
Nominal power output:2 x 125 W / 4 ohms
Power output sine:
Stereo 4 ohms2 x 125 W
Stereo 8 ohms2 x 75 W
8 ohms bridged1 x 250 W
Damping factor:>150
Distortion factor:0.01 %
Signal-to-noise ratio:108 dB
Channel seperation (at 1 kHz):89 dB
Min. input sensitivity:0.77 V/26 dB/1.44 V
Input impedance:12 kohms (unbalanced), 22 kohms (balanced)
Output impedance:>0.02 ohms
Slew rate:>35 V/µsec
Input connectors:2 x XLR female plug, 2 x 6.3 mm jack plug
Output connectors:2 x Speaker (stereo), 1 x Speaker (bridge), 2 x Banana/screw combination
Control elements:Power switch, input attenuators (one per channel), Mode switch - Stereo/Parallel/Bridged, Ground Lift, Input-Level-Select (0.77 V/26 dB/1.44 V), limiter
LED indicators (per channel):Power, Protect, Signal, Mode
Protection circuits:Short-circuit, DC, thermal, softstart
Construction:Steel chassis, aluminum front panel
Dimensions:375 x 482 x 100 mm
Minimum mounting depth:400 mm
Power consumption:500.00 W
Weight:7,2 kg
Frequency range:22 - 31000 Hz
Packaging units
PU EAN Weight Dimensions
1 4026397135541 8,35 kg 52cm x 36cm x 14cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00015438.pdf 3.30 de/en/fr

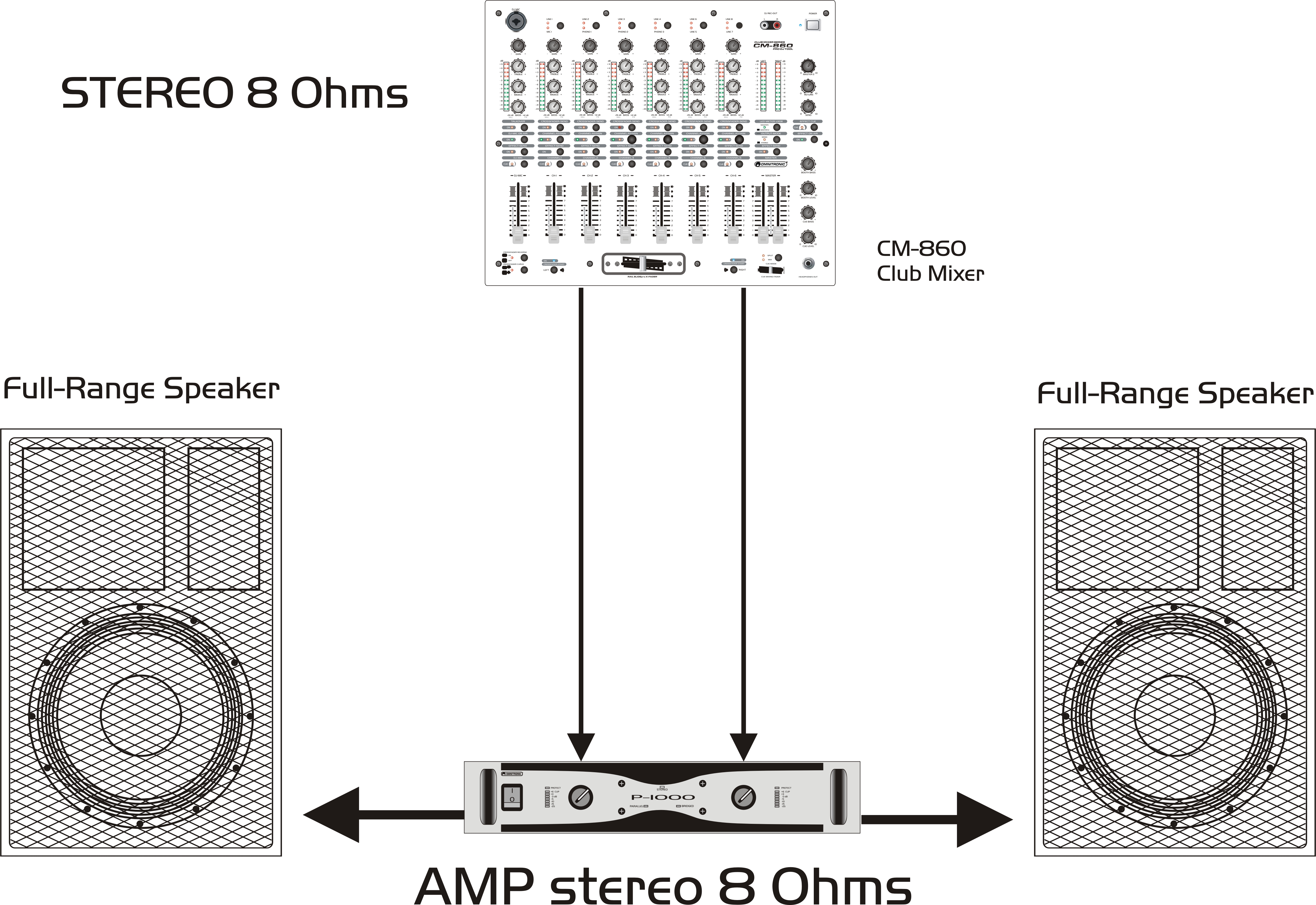

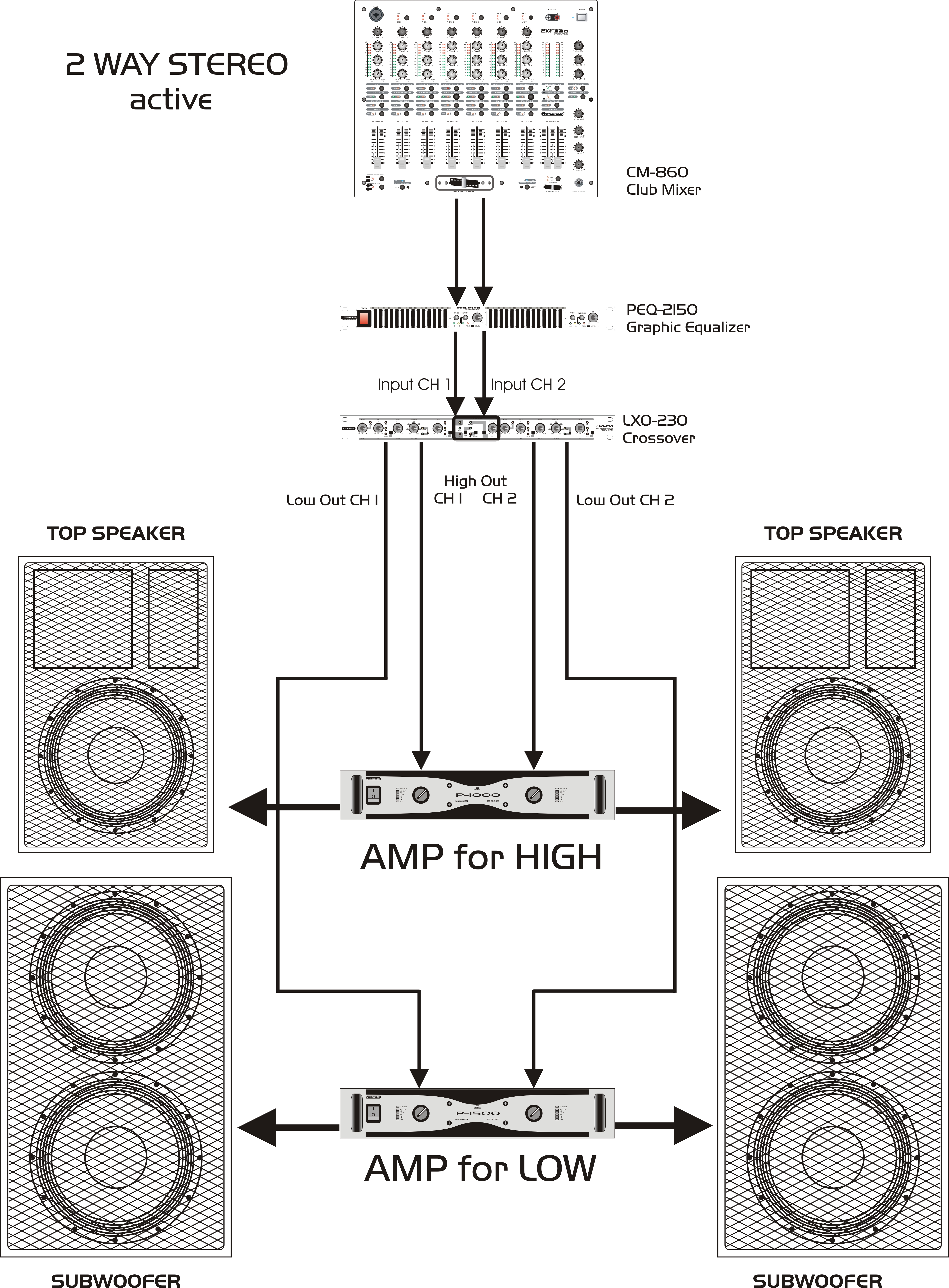

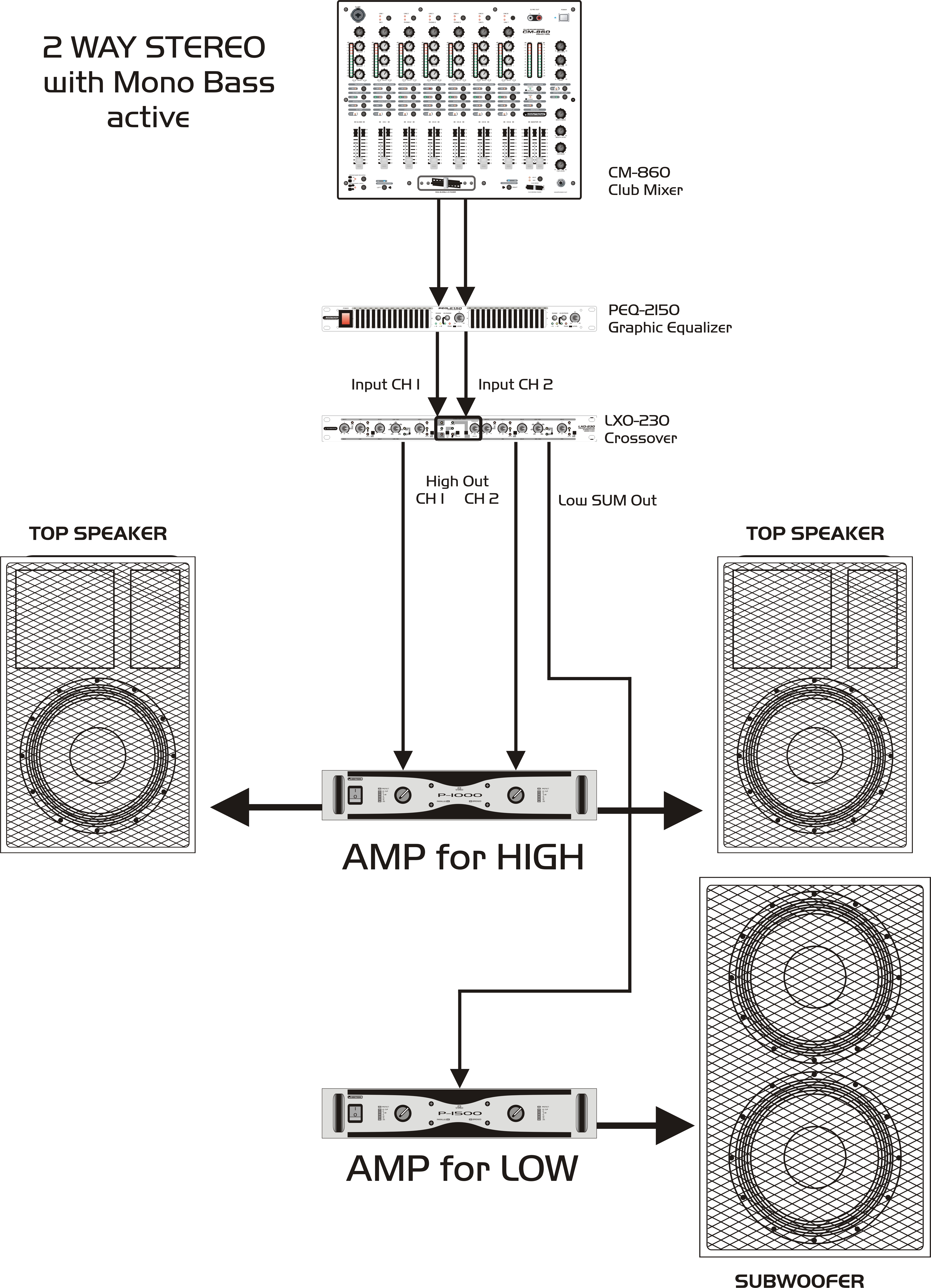

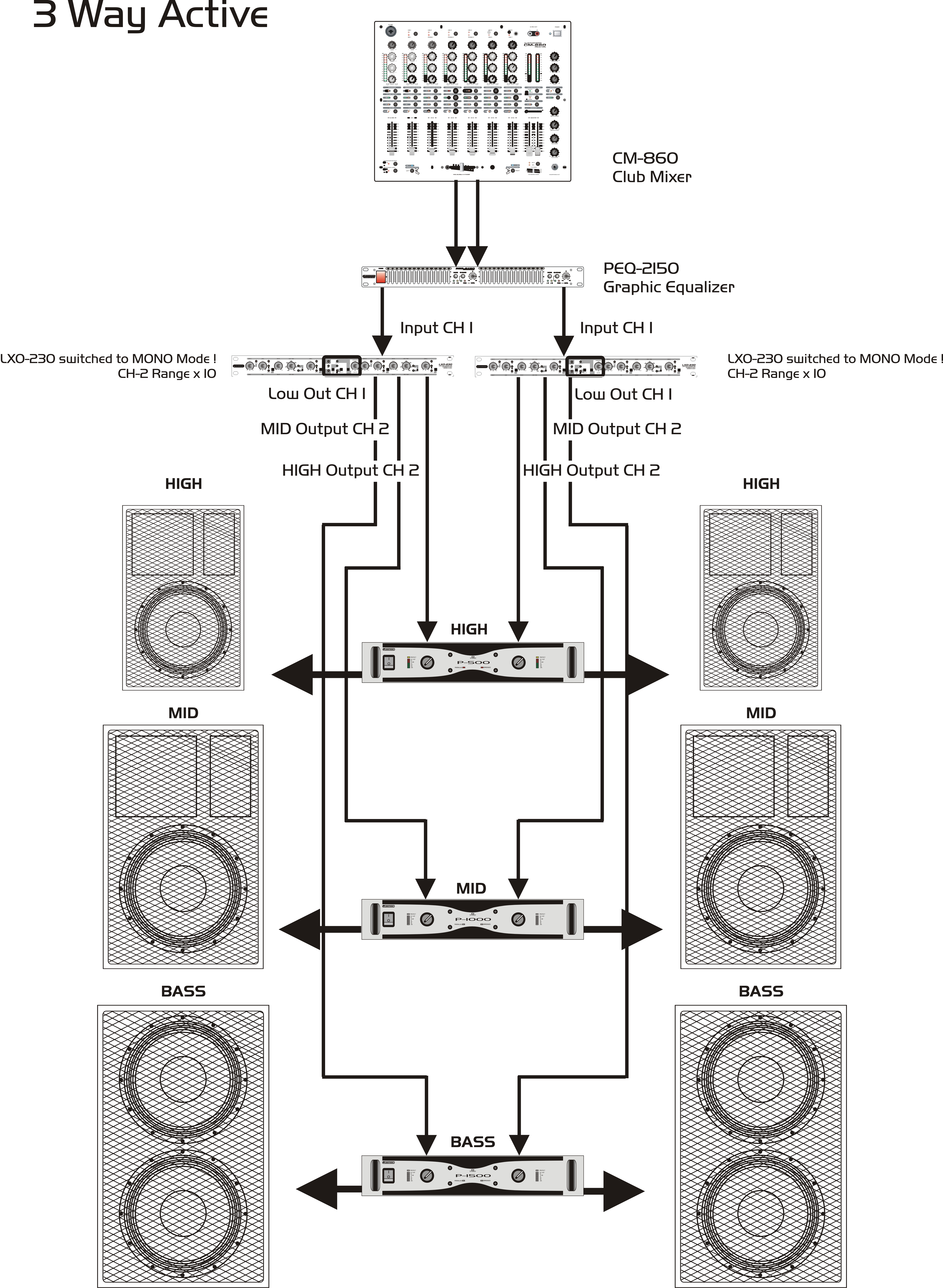

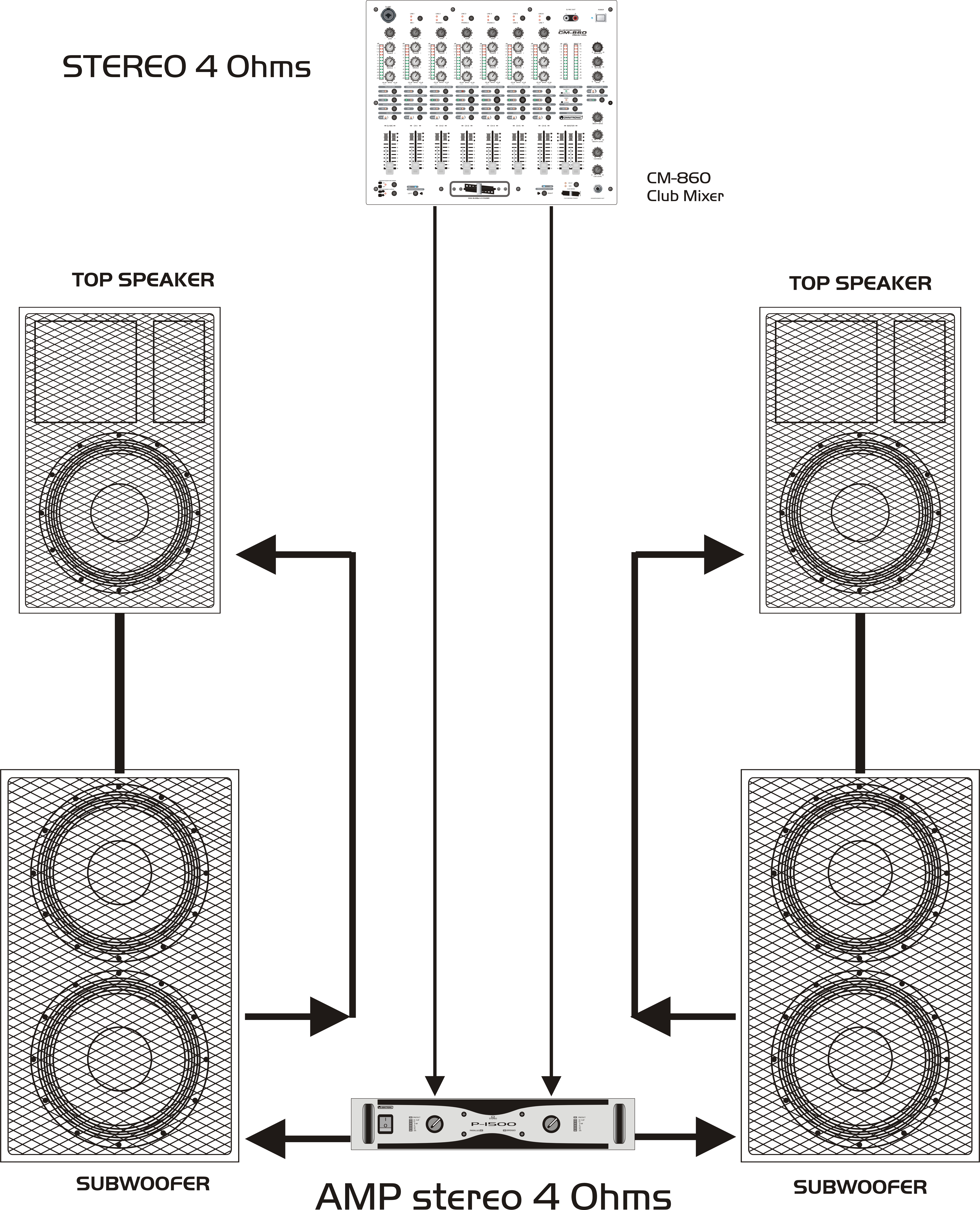

Illustration
Name Version Language
00008030.pdf 0.00 en
00008424.jpg 0.00 en
00008425.jpg 0.00 en
00008426.jpg 0.00 en
00008427.jpg 0.00 en
00008428.jpg 0.00 en
All images
Name Version Language
10451110.zip
