2 x 31-band digital equalizer
OMNITRONIC DEQ-231 Digital EQ 2x31-bands

OMNITRONIC

2 x 31-band digital equalizer

OMNITRONIC DEQ-231 Digital EQ 2x31-bands

Item no. 10356120

Features
  • Gain control in 0.5 dB steps up to 16 dB
  • 24 Bit dual DSP
  • 48 kHz sampling rate Sigma-Delta, A/D, D/A converter
  • Intergrated digital Noise Gate
  • 100 programs can be memorized via battery backup
  • Left/right copying function
  • Lock function
  • MIDI control possible
  • Rack installation, 1 U
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
Inputs:XLR or balanced 6.3 mm jack
Nominal Operating Level:-20 dB to +4 dB
Max. input level:+16 dB at +4 dB nominal level, +2 dB at -20 dB nominal level
Input impedance:40 ohms balanced, 20 ohms unbalanced
Outputs:XLR or balanced 6.3 mm jack
Max. output level:+16 dB at +4 dB nominal level, +2 dB at -20 dB nominal level
Output impedance:66 ohms balanced, 33 ohms unbalanced
Frequency range:20-20000 Hz
Distortion:0.06 %
S/N-ratio:98 dB, 20-20000 Hz
Crosstalk:-95 dB, 20-20000 Hz
MIDI-Interface:5-pin DIN-socket IN/OUT/THRU
Converters:24-bit Sigma-Delta, 64/128-times oversampling
Sampling rate:48 kHz
Dimensions (W x D x H):482 x 152 x 45 mm
Power consumption:10.00 W
Weight:3 kg
Packaging units
PU EAN Weight Dimensions
1 4026397177749 2,90 kg 52cm x 25cm x 8,5cm
10 4026397179293
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00006660.pdf 1.00 de/en

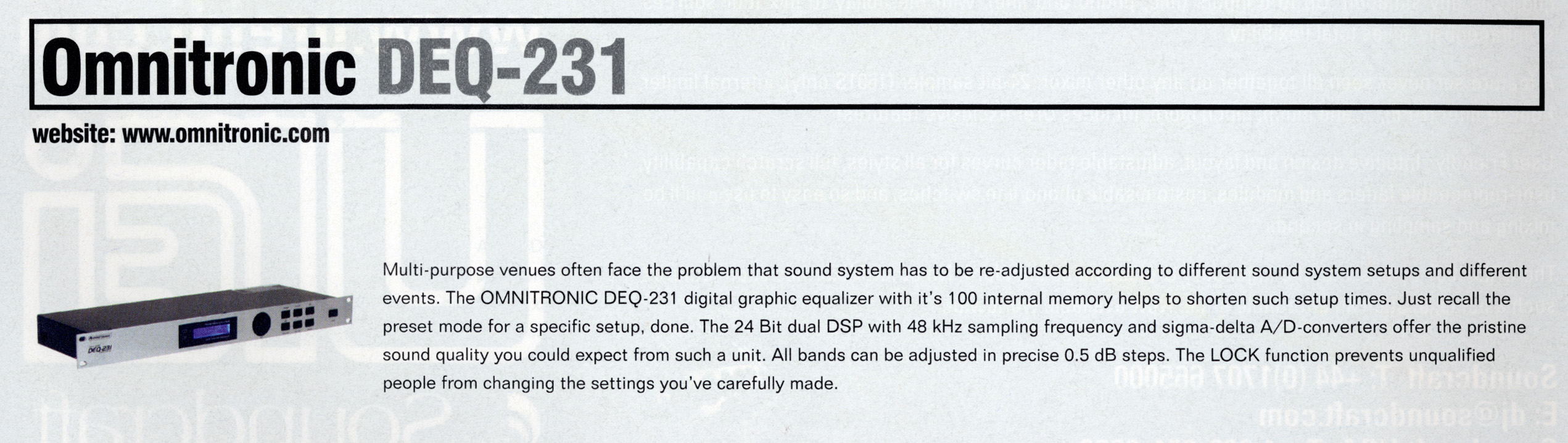

Press report
Name Version Language
Mondo_10_05
0.00 en
All images
Name Version Language
10356120.zip
