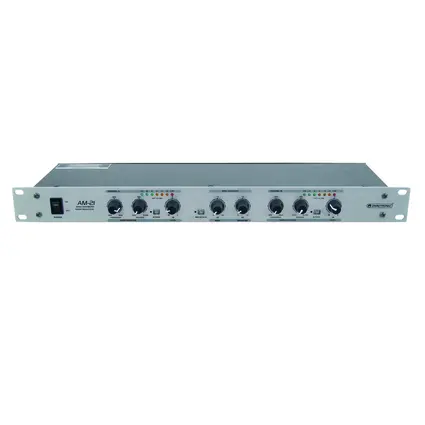

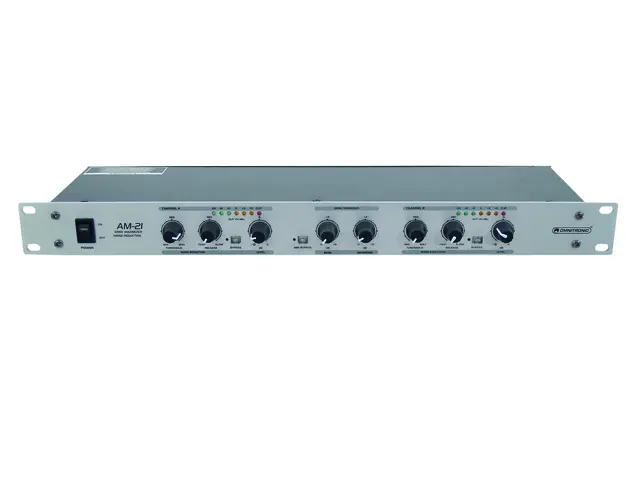

OMNITRONIC AM-21 Sonic maximizer

OMNITRONIC

Maximize your sound with the sound enhancement system AM-21!

OMNITRONIC AM-21 Sonic maximizer

Item no. 10355705

Maximize your sound with the sound enhancement system AM-21!
The AM-21 is a professional sound enhancement processor consisting of a dedicated Sonic Maximizer with an independent noise reduction system in a single rack-space unit. The AM-21 corrects the usual major phase and amplitude distortions that occur when sound is reproduced by a speaker system. The AM-21 improves your sound material dramatically and gives your music the additional dimension you've been looking for. It provides a better dynamic to sound, increases clarity, adds detail and definition. This processor is the perfect sound improvement tool for recording studios, DJ systems, clubs and instrument racks.
Features

Maximize your sound with the sound enhancement system AM-21!

  • Effective sound enhancement system with sonic maximizer and 2-channel noise reduction
  • Improves the performance of your sound dramatically by adding clarity, dimension and depth
  • Produces high-end transparency and super-tight bass
  • Separate bass and definition control and bypass switch on the sonic maximizer section
  • Independent section for noise reduction with threshold, release and level control per channel
  • Bypass switch allows instant comparison of original sound with processed sound per channel
  • Precise 7-digit LED meter with clip LED for output level per channel
  • Inputs and outputs via balanced XLR connectors and 6.3 mm jack connectors
  • Rack installation, 1 U
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:10 W
Frequency range:20 - 20000 Hz
S/N ratio:>90 dB
Width:48,3 cm
Height:4,45 cm
Depth:12 cm
Weight:2 kg
S/N ratio:>90 dB
THD: 0.05%
Crosstalk:>80 dB, -3 dB
Bass definition:0 to +9 dB
Input impedance:10/20 kohms (unbal./bal.)
Output impedance:300/150 ohms (unbal./bal.)
Connection:6.3 mm jack (unbal.), 3-pin XLR (bal.)
Dimensions (W x D x H):483 x 120 x 46 mm
Packaging units
PU EAN Weight Dimensions
1 4026397306231 2,50 kg 55cm x 20cm x 7,5cm
6 4026397306248 16,00 kg 55cm x 42cm x 26cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
10355705-Manual-33678-1.000-de_en.pdf (2 MB) 1.000 de_en
Service document
Name Version Language
10355705-Service-30696-1.000-de.pdf (175 KB) 1.000 de
All images
Name Version Language
10355705-Images.zip
