Monitor mixer for studio and stage applications

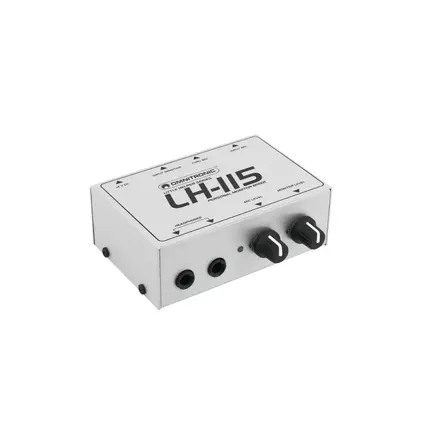

OMNITRONIC LH-115 Personal Monitor Mixer

OMNITRONIC

Monitor mixer for studio and stage applications

OMNITRONIC LH-115 Personal Monitor Mixer

Stock for approx. 12 wk(s)
44,90 €
22,50
From 10 pcs. -50%
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 10355115

Listen carefully!
Attain your goal in a simple, versatile and fast way. A wish which can't always be realized. But no problem with the OMNITRONIC LH-115. Especially when you are producing podcasts, the small mixer can be a great help for you. Because the LH-115 provides the opportunity to perfectly record your voice recordings. How' s that? This can easily be answered. Take your microphone signal and send it to the LH-115. With one or two headphones you now can now tap the signal and send it, unaltered, to you computer. From there again you can send another signal, background music for example, back to the mixer. Now you can speak sort of on the music and with the level control you are able to easily set the volume of the microphone signal. On your monitor signal you can thus hear the mix the way you prefer it for recording. And due to its small size, it's the ideal partner on the way.
Features
  • Connects a microphone and a further audio source for monitoring
  • 1 microphone input via balanced XLR connector with level control
  • 1 feed-through output (XLR, bal.)
  • 1 aux input via 6.3 mm jack with level control
  • 2 headphone outputs via 6.3 mm jacks
  • Operation via supplied power unit
Technical specifications
Power supply:12 V DC, 150 mA
Output impedance:10 ohms
Max. input level:-20 dB (microphone), 40 dB (monitor)
Gain:20 dB (jack), 50 dB (XLR)
S/N ratio:90 dB
Dimensions:113 x 90 x 40 mm
Weight:0.340 kg
Power consumption:2.00 W
Frequency range:50 - 20000 Hz
Packaging units
PU EAN Weight Dimensions
1 4026397318555 0,73 kg 23cm x 13cm x 8cm
20 4026397318562 15,80 kg 68cm x 47cm x 19cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00036905.pdf 1.00 de/en
Illustration
Name Version Language
Product design00036729.pdf 0.00 de
Catalog pages
Name Version Language
00097521.pdf 25.00 de
00097847.pdf 25.00 en
Service document
Name Version Language
Circuit diagram00033385.pdf 1.00 en
All images
Name Version Language
10355115.zip
