Miniature audio mixer with USB interface

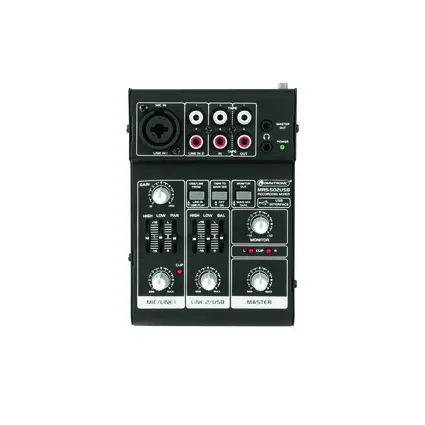

OMNITRONIC MRS-502USB Recording Mixer

OMNITRONIC

Miniature audio mixer with USB interface

OMNITRONIC MRS-502USB Recording Mixer

Stock for approx. 12 wk(s)
49,90
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 10040270

Features
  • Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
  • Full duplex USB port: simultaneous recording and playback possible
  • 1 mono input channel with gain control, 2-band EQ and pan control, clip LED
  • 1 stereo input channel with level control, 2-band EQ and balance control
  • Tape input and output
  • 3.5 mm stereo master output
  • Adjustable headphones output
  • +20 V phantom power, permanent
  • Clip LED L/R
  • Operation via supplied power unit or USB port
  • Rugged, compact metal housing
Technical specifications
Power supply:230 V AC, 50 Hz via supplied power unit
5 V DC, 500 mA via USB port
Inputs/sensitivity:
1 x Mic, mono0.5 mV, combination XLR/6.3 mm jack bal.
2 x Line In, stereo2 mV,150 mV, RCA L/R
1 x Tape In420 mV, RCA L/R
Outputs/level:
1 x Main Out:6 V max., 3.5 mm jack unbal.
1 x Tape Out2 V max., RCA L/R
1 x Headphones2 V max., 3.5 mm jack unbal.
USB port:2.0, type B
Distortion:0.05 %
S/N ratio:81 dB
Tone control/channel:
Treble:±15 dB at 12 kHz
Bass:±15 dB at 80 Hz
Phantom power:+20 V
Dimensions (L x W x H):148 x 103 x 47 mm
Power consumption:2.50 W
Weight:0,43 kg
Frequency range:20 - 20000 Hz
Packaging units
PU EAN Weight Dimensions
1 4026397513875 0,65 kg 23,5cm x 17cm x 5cm
20 4026397534108 13,60 kg 36cm x 25,5cm x 55cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00083731.pdf 1.00 de/en
Catalog pages
Name Version Language
00097344.pdf 25.00 de
00097831.pdf 25.00 en
00114996.pdf 27.00 de
00115433.pdf 27.00 en
Press report
Name Version Language
Test_Beat_7_2015_MRS_502_1002.pdf
00105128.pdf
0.00 de/en
All images
Name Version Language
10040270.zip
