Multifunctional 5+2-channel installation mixer, Silver

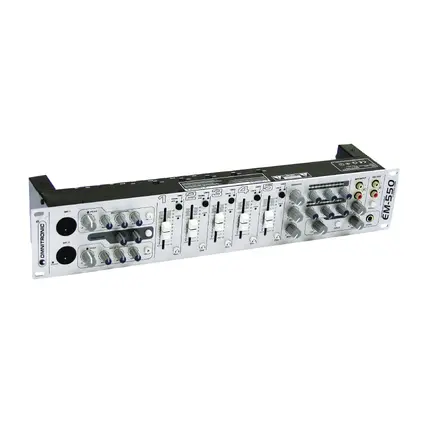

OMNITRONIC EM-550 Entertainment Mixer

OMNITRONIC

Multifunctional 5+2-channel installation mixer, Silver

OMNITRONIC EM-550 Entertainment Mixer

Stock for approx. 12 wk(s)
239,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 10007100

OMNITRONIC Entertainment Mixer Series
The modern entertainment industry, especially hotels, bars or theme parks, requires very high standards in quality and features for sound devices.
The OMNITRONIC EM-series is especially designed for this industry and offers the highest flexibility and quality in very small mixer casings.
The EM-series offers a variety of connection possibilities and also convinces by an ergonomic design and easy use.
The special housing design and the state-of-the-art construction are further reasons which make the EM-series the first choice for installers.
Features
  • 5 input channels with recessed gain controls on the rear panel, signal LED and super smooth dual-rail channel faders
  • 2 separate microphone channels with level control, 3-way equalizer and talkover button
  • Talkover level and response time adjustable
  • Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output
  • Color illuminated rotary controls and rubber buttons
  • 1 additional line input with level control on the front panel
  • 2 adjustable master outputs with 3-way equalizer and 10-digit stereo LED level meter
  • 1 adjustable booth output with mono/stereo selector switch
  • 2 record outputs (independent of the master channels) with on/off switch for microphone signals
  • Inputs: 9 x line (stereo RCA), 2 x line/phono (stereo RCA), switchable; 2 x microphone (XLR/6.3 mm jack) and headphones (6.3 mm jack)
  • Outputs: 2 x master (optionally 3-pin XLR or stereo RCA), 1 x booth (stereo RCA) and 2 x record (stereo RCA)
  • Operation via supplied power unit
  • Rack installation, 2 U
  • Ideal for restaurants, bars, theme parks, hotels and all applications where microphones need to be mixed with music (e.g. karaoke)
  • Master Equalizer: 2 x 3 band tone control Stereo
Technical specifications
Power supply:230 V AC, 50 Hz,
via supplied power unit
Inputs:
Microphone 1.2combined XLR/6.3 mm jack (1/4") (bal.)
Minimum input voltage:1 mV RMS
Line 1-8, Aux 1.2:stereo RCA
Minimum input voltage:150 mV RMS
Phono 1.2:stereo RCA
Minimum input voltage:3 mV RMS
Outputs:
Master 1.2:stereo RCA, stereo XLR
Output voltage:0.75 V/1.5 V RMS (switchable)
Booth:stereo RCA (switchable to mono operation)
Output voltage:0.75 V RMS
Record:stereo RCA
Output voltage:0.75 V RMS
Headphones output:6.3 mm stereo jack (min. 8 ohms)
Tone control (microphone 1.2; output 1.2):
4 x High:-12 dB to +12 dB/ 10 kHz
4 x Mid:-12 dB to +12 dB/ 1 kHz
4 x Low:-12 dB to +12 dB/ 100 Hz
Talkover attenuation:-15 dB
S/N ratio:>65 dB
Distortion:0.03 %
Dimensions (WxHxD):483 x 115 x 90 mm (19", 2 U)
Weight:4 kg
Power consumption:35.00 W
Frequency range:20 - 20000 Hz
Height:8,9 cm
Depths:11,5 cm
Width:48,3 cm
Packaging units
PU EAN Weight Dimensions
1 4026397377125 4,20 kg 62cm x 14cm x 16cm
4 4026397377132 17,65 kg 63cm x 33cm x 29,5cm
