19" mixing amplifier with audio player, Bluetooth and 2 x 50 W power
OMNITRONIC EPA-100BT Mixing Amplifier

Name: OMNITRONIC EPA-100BT Mixing Amplifier
Brand: OMNITRONIC
SKU: 10007078
Price: 165.00 EUR
Availability: InStock

19" mixing amplifier with audio player, Bluetooth and 2 x 50 W power-MainBild

1 U

19" mixing amplifier with audio player, Bluetooth and 2 x 50 W power

OMNITRONIC EPA-100BT Mixing Amplifier

Stock for approx. 12 wk(s)

165,00 €

138,66 €

-16% valid until 31.07.2025

List price excl. 19% VAT
Prices in retail stores may vary.

No. 10007078

Print product

Product badge

Here you find the manual and downloads for
OMNITRONIC EPA-100BT Mixing Amplifier

The 1 U flat stereo mixing amplifier EPA-100BT with efficient class D output circuitry is particularly suitable for permanent installations in restaurants, gyms and retail locations which require quick-access music playback control.

It provides 2 x 50 watts at 4 ohms and lets you play and control music from multiple sources. Equipped with connections for a microphone and a line-level audio source, it also features a built-in audio player with USB port and memory card slot as well as a Bluetooth receiver for wireless audio streaming directly from your smartphone, tablet or any other Bluetooth-enabled device.

Features

19" mixing amplifier with audio player, Bluetooth and 2 x 50 W power

Built-in audio player with USB port and SD card slot
Adjustable stereo line input via XLR and RCA jacks

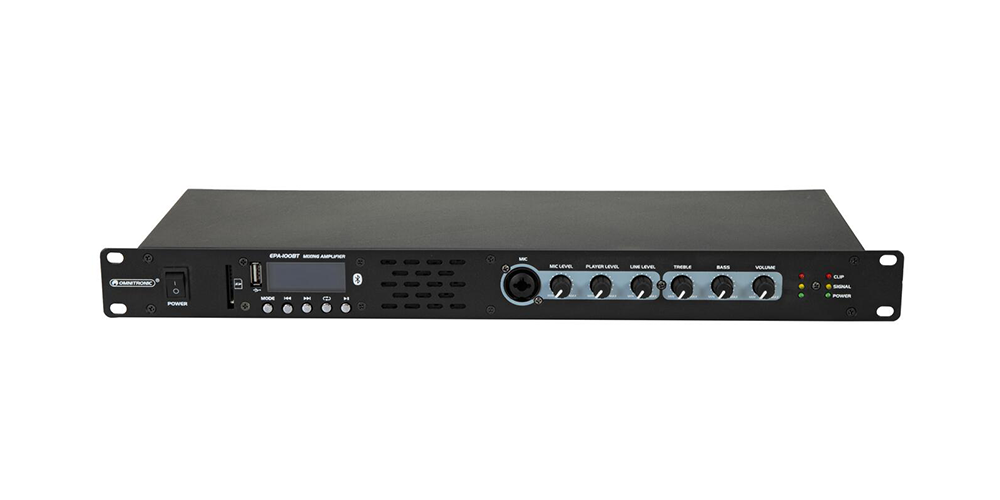

Adjustable microphone input on the front panel
Controls for volume, bass and treble
Stereo line output via XLR and RCA jacks
Screw terminals for low-impedance speakers
Efficient Class D technology
Extremely low weight and height due to integrated switch mode power supply
(19") 48.3 cm rack installation possible 1 U
The device is cooled by cooling fan
Monochrome LCD display
For application areas such as: Trade fair and shop fitting; sports centres/gyms; restaurants, bars and hotels

audio player

Control via Bluetooth
Bluetooth: operating range up to 10m

Package contents

1 x amplifier, 1 x power cord, 1 x user manual, 1 x declaration of conformity

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	100 W
Output power:	30 W RMS (8 ohms) 50 W RMS (4 ohms)
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz
Cooling:	Cooling fan
Circuitry:	Class D
Display type:	Monochrome LCD display
Control elements:	Groundlift selector
Controls:	Limiter
Status LED:	Power, signal, clip

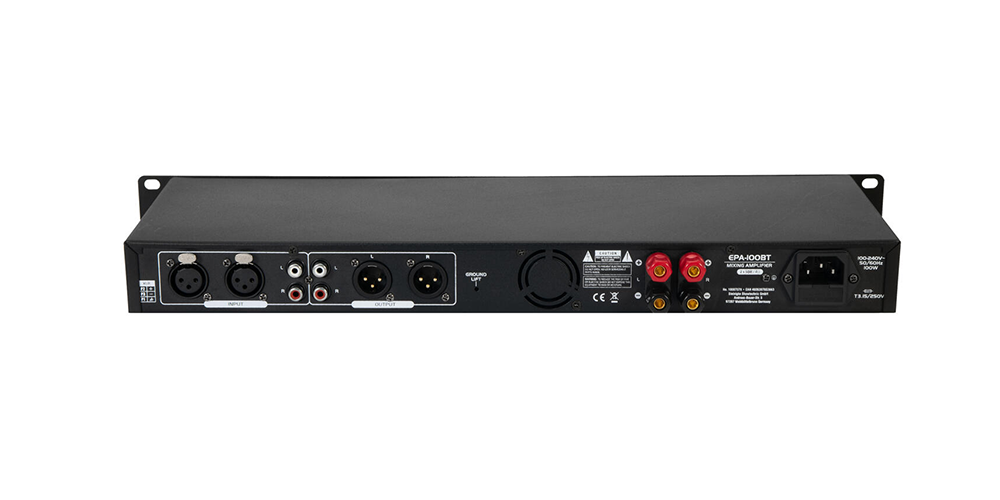

Connections:	Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 2 x 3-pin XLR Input: line via 1 x stereo RCA Output: line via 2 x 3-pin XLR Output: line via 1 x stereo RCA Output: speaker via screw terminal
Equalizer:	Master: 1 x 2-band tone control stereo
Housing design:	(19") 48.3 cm rack installation possible 1 U
Dimensions:	Width: 48,3 cm Depth: 21 cm Height: 4,45 cm
Weight:	2,59 kg
Audio player
Control:	Bluetooth
Audio player:	USB + SD + Bluetooth
Range:	Bluetooth: range up to 10m
Carrier frequency:	2,4 GHz
Music format:	WMA; MP3, WAV
Available storage media:	USB devices/SD cards max. 32GB

Packaging units

PU	EAN	Weight	Dimensions
1	4026397653663	2,90 kg	53cm x 27cm x 7,5cm
5	4026397657753	15,20 kg	53,5cm x 31cm x 40cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

Pcb (MP3-Player) WAMS-65BT

Transistor SPP20N60C3

Pcb (Power supply) 24V/6A EPA-100BT (WX-DC2416)

More 2 spare parts

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
