FUTURELIGHT Set 4x PLB-130 + Case

2°

7 mm

FUTURELIGHT Set 4x PLB-130 + Case

The article is no longer in our assortment.

Item no. 09009961

Print product

Product badge

Set consisting of:

4 x FUTURELIGHT PLB-130 Moving Head

1 x ROADINGER Flightcase 4x PLB-130/DMH-80/TMH XB-130

Features

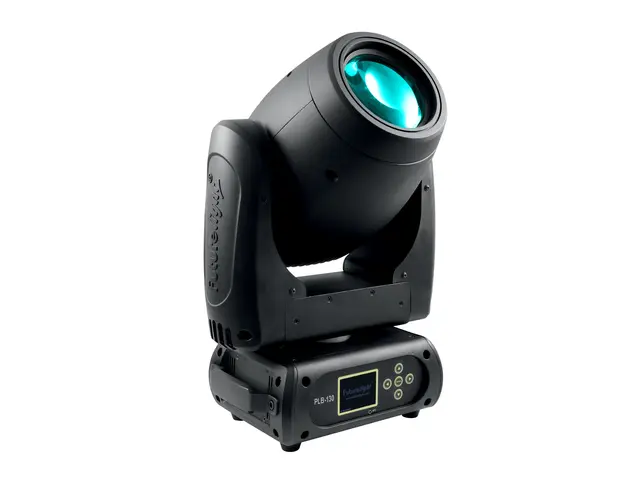

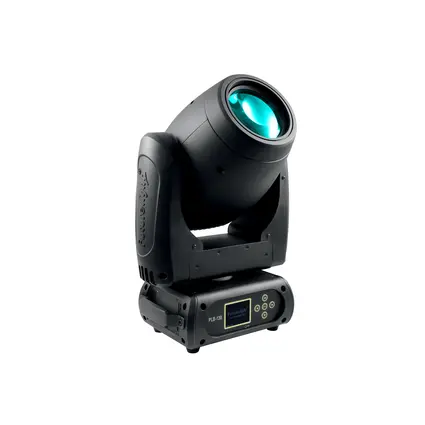

FUTURELIGHT PLB-130 Moving Head

High performance beam with Osram Sirius HRI 132 W lamp

Parallel beam
Effect wheel with rotating 8-facet prism
The prism rotate in both directions and at different speeds
Motorized focus
Strobe effect with adjustable speed
Random strobe effect
Electronic dimmer (0-100%)
Exact positioning via 16-bit PAN/TILT movement resolution
Automatic position correction
Control panel with LC display for easy configuration
PAN angle switchable between 630° and 540°
Stand-alone, master/slave and DMX mode
Number of scenes in Program Run can be changed individually
The scenes in Program Run can be modified via the Control Board or via an external controller and loaded into the memory
Software upload by optional accessories via DMX link
With Osram Sirius HRI 132 W lamp
Gobos
Gobo effect
Color wheel with 14 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 17 gobos and open
shake effect
The device is cooled by temperature-controlled fan
Control via RDM; DMX; stand-alone; Sound to light via Microphone
Preprogrammed in LED PC-Control 512; Light Captain; Light´J
With a beam angle of 2°

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x xLR cable

ROADINGER Flightcase 4x PLB-130/DMH-80/TMH XB-130

PRO flightcase for 4 x PLB-130

With 4 Device compartments
With accessory compartment
High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
Interior with foam padding
cover with foam padding
Aluminum profile frames 25mm with rounded edges
4 hinged, chromium plated case handles
2 chrome tip-over locks
2 high-quality butterfly locks
4 castors with 2 locking brakes
Branded hardware
Made in Europe
For further information about this product, please refer to the Data Sheet under "Downloads"

Technical specifications

Weight:	69,40 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
FUTURELIGHT PLB-130 Moving Head
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	190 W
IP classification:	IP20
Power connection:	Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x PowerCON (gray), mounting version
Fuse:	T 3,15 A Fuse replaceable
Lamp type:	Discharge lamp
Max. TILT movement:	265° Positioning
Max. PAN movement:	630° Positioning
Flash rate:	1 - 20 Hz
Equipment:	Gobos
Color generation:	Color wheel with 14 dichroic filters plus open Rainbow effect with adjustable speed in both directions
Gobos:	Gobo wheel with static gobos, 17 gobos and open Shake effect
DMX channels:	10; 12; 13; 16
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan
Control:	RDM; DMX; stand-alone; Sound to light via Microphone
Preprogrammed in:	LED PC-Control 512; Light Captain; Light´J
Beam angle:	2°
Beam angle (1/2 peak):	2°
Housing color:	Black
Dimensions:	Width: 25 cm Depth: 30 cm Height: 40 cm
Weight:	11,70 kg
Noise classification:	Class 3 (clearly perceptible sounds)
Legal specifications
Energy efficiency class (A++ - E):	G
ROADINGER Flightcase 4x PLB-130/DMH-80/TMH XB-130
Maximum load:	100 kg
Aluminum profile frames:	25 mm
Case handle:	4 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Transport aid:	4 x castors with 2 locking brakes
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Accessory compartment:	10 cm x 45 cm x 38,5 cm
Inside dimensions:	77 cm x 45 cm x 40,5 cm
Device compartment:	31,5 cm x 21,5 cm x 38,5 cm
Dimensions:	Width: 81 cm Depth: 50 cm Height: 43 cm
Weight:	22,60 kg
