EUROLITE Set EUROLITE LED SLS-5 QCL Floor + Case

svg
svg
7 mm
EUROLITE

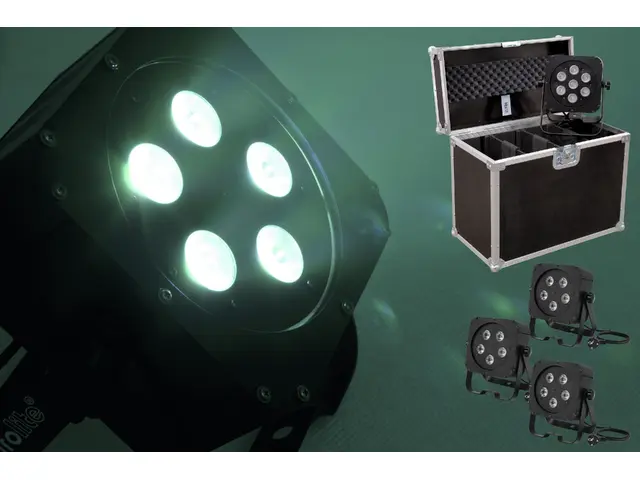

EUROLITE Set EUROLITE LED SLS-5 QCL Floor + Case

Item no. 09000227

51915380 EUROLITE LED SLS-5 QCL 5x5W Floor

It is the popular KLS which has paved the path for Slim Line Spots. The KLS was the first successful attempt to replace bulky PAR spots by compact and flat ones - on a bar with 4 spots next to another. As is well known, the concept has been a raving success. As a logic consequence we also transformed the form of single spots - the SLS were born.

Obvious advantages of the SLS: they are slim. Compared to common PAR spots they considerably save space. For this reason they are much more flexible and handy. This is also true for installation, stock ground and transport - for most SLS we sell special cases which are smaller and cheaper than those for PAR spots. In the end, the design can save money.

Meanwhile Eurolite has built up a very rich assortment full of different spots. An assortment which is continuously enlarged. Every delivery finally includes a double bracket enabling an additional use as floor spot. Beside the different sizes of the spots the main differences can be seen in the illuminants. A choice of single LEDs, bicolor, tricolor and quadcolor LEDs is offered.

QCL-Slimline-Spot
The devices of the Eurolite SLS family unite the sought-after slim housing shape with the powerful quadcolor LEDs.
The great advantage of the Slim Line Spots (SLS), compared to common parcans, lies in its space-saving character. With a height of 31 cm, a width of 28 cm and a depth of 11 cm not only transport is simplified. Flexibility of installation variations increases as well. One reason for this is the double bracket which enables a additional mounting as floor spot.
As the name already implies, the SLS is equipped with 5 quadcolor LEDs. Offering a power of 5 watts each, they light up every stage more than sufficiently.
Features

51915380 EUROLITE LED SLS-5 QCL 5x5W Floor

Slimline LED spot with 5 x 5 W QCL

  • Equipped with 4in1 quadcolor LEDs for homogeneous light output in the colors red, green, blue and white
  • Flat housing form requires minimal space when rigging
  • Second mounting bracket for safe standing installation
  • Comfortable addressing and setting via control panel with LED display
  • Functions: Static colors, RGBW color blend, internal programs, dimmer, strobe, sound-control, sensitivity
  • Further display settings: display on or off, display inverted, default settings
  • Operable in stand-alone mode or via DMX
  • Master/Slave for parallel operation of several devices
  • DMX512 control via regular DMX-controller
  • Number of DMX channels selectable for numerous applications
  • Sound-control via built-in microphone
  • Ready for connection with power cord and safety plug
  • Feed-through output allows to power up to 8 devices
  • Switch-mode power supply for operation between 100 and 240 volts
  • Control: Sound to light via Microphone

31000900 ROADINGER Flightcase 4x SLS Size M

PRO flightcase for 4 SLS spots

  • Compartments for four SLS spots
  • Suitable for 51915360 EUROLITE LED SLS-7 TCL 7x3W Floor, 51915380 EUROLITE LED SLS-5 QCL 5x5W Floor, 51915382 EUROLITE LED SLS-5 QCL 5x5W Floor NSP, 51915390 EUROLITE LED SLS-5 BCL 5x5W Floor
  • Individually adjustable and removable dividers for universal use
  • High-quality workmanship with multiplex birch wood, dark brown laminated
  • Aluminum profile frames (30 mm) with rounded edges
  • Interior upholstered with foam
  • Three-leg, medium-sized steel ball corners
  • 2 hinges
  • 1 butterfly lock
  • 1 case handle
  • additional dimensions: Compartment dimensions 11,5x25x39 cm
  • additional dimensions: Inside dimensions 49x25x39 cm
  • Made in Europe
Technical specifications
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
51915380 EUROLITE LED SLS-5 QCL 5x5W Floor
Power supply:100-240 V AC, 50/60 Hz
Power consumption:24 W
IP classification:IP20
Beam angle:40°
DMX channels:4
Control:Sound to light via Microphone
Length:230 mm
Width:23 cm
Height:27 cm
Depth:11 cm
Weight:2,95 kg
DMX channels:4/6/7
DMX connection: 3-pin XLR
Sound-control:via built-in microphone
LED type:5 W QCL
LED number:5
Beam angle:40°
Ventilation fan:No
Dimensions (W x D x H):230 x 110 x 270 mm
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
31000900 ROADINGER Flightcase 4x SLS Size M
Maximum load:25 kg
Color:Dark brown laminated
Material:Birch multiplex 7 mm
additional dimensions:Compartment dimensions 11,5x25x39 cm
Inside dimensions 49x25x39 cm
Strength:7 mm
Width:52,5 cm
Height:44,5 cm
Depth:28,5 cm
Weight:8,10 kg
