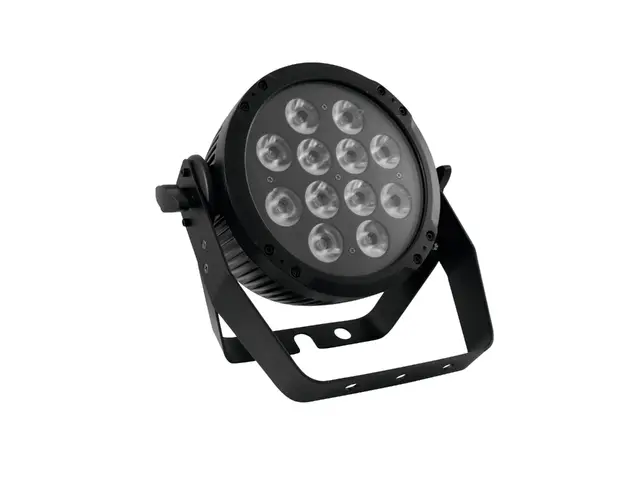

FUTURELIGHT Set FUTURELIGHT Pixel Slim Par-12 + Case

FUTURELIGHT



FUTURELIGHT Set FUTURELIGHT Pixel Slim Par-12 + Case

Item no. 09000033

Features

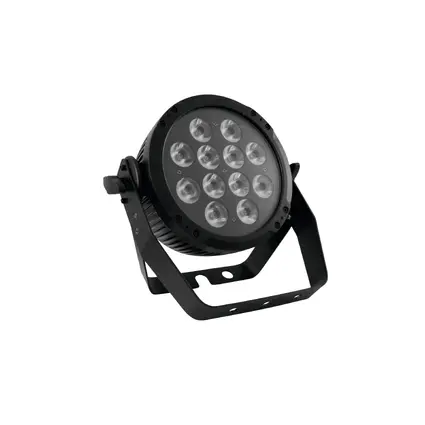

51842600 FUTURELIGHT PRO Pixel Slim PAR-12 TCL

Professional slimline LED spot with 3 W TCLs

  • Equipped with 12 x 3in1 tricolor LEDs in the colors red, green and blue
  • Each LED can be controlled individually
  • 3, 5, 9, 12 or 36 DMX channels selectable for various applications
  • Flat housing form requires minimal space when rigging
  • Extremely compact housing in a beautiful design
  • Second mounting bracket for safe standing installation
  • Locking possibility at the brackets with large metal butterfly screws
  • Convection cooling entirely via cooling ribs, no fans
  • Functions: static colors, RGB color mixture, preset color temperatures, automatic color change, built-in programs, dimmer, strobe effect, sound-control, Master/Slave operation
  • Dimmer speed (step response) adjustable
  • Sound-controlled via built-in microphone
  • Microphone-sensitivity adjustable via rotary-control
  • Comfortable addressing and setting via Control Board with four operating buttons and LED display with four-digit 14-segment display
  • Operable in stand-alone mode or via DMX
  • Master/Slave for parallel operation of several devices
  • Power connection via Neutrik PowerCon jack and included power cable
  • Feed-through output allows to power another device
  • After every 8 devices the fixtures must have a renewed connection with the power mains
  • DMX512 control via regular DMX-controller

51836702 ROADINGER Flightcase 4x PRO Slim Size M

PRO flightcase for 4 PRO Slim spots

  • Interior devided for four PRO Slim spot lights
  • Developed for 51842500 FUTURELIGHT PRO Slim PAR-18 TCL, 51842550 FUTURELIGHT PRO Slim PAR-12 QCL RGBW, 51842555 FUTURELIGHT PRO Slim PAR-12 QCL RGBA, 51842600 FUTURELIGHT PRO Pixel Slim PAR-12 TCL, 51842525 FUTURELIGHT PRO Slim PAR-36 CW/WW
  • 4 compartments for spot lights
  • 1 compartment for accessories
  • High-quality workmanship with multiplex birch wood, dark brown laminated
  • Aluminum profile frames (30 mm) with rounded edges
  • Interior upholstered with foam
  • Three-leg, medium-sized steel ball corners
  • 2 hinges
  • 2 butterfly locks
  • 2 case handles
  • Made in Europe
Technical specifications

51842600 FUTURELIGHT PRO Pixel Slim PAR-12 TCL

Power supply:230 V AC, 50 Hz
DMX channels:3/5/9/12/36
DMX connection: 3-pin XLR
Sound-control:via built-in microphone
LED type:3 W TCL
LED number:12
Beam angle:13°
Dimensions (L x W x H):95 x 265 x 270 mm
Weight:3.2 kg
Power consumption:60.00 W
Height:32,3 cm
Depths:10,7 cm
Width:29,8 cm
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting

51836702 ROADINGER Flightcase 4x PRO Slim Size M

Strength:7 mm
Outside dimensions (W x D x H):685 x 305 x 360 mm
Inside dimensions (W x D x H):650 x 270 x 305 mm
Weight:10 kg
Color:Black
Maximum load:50 kg
Width:68,5 cm
Depths:30,5 cm
Height:36 cm
