EUROLITE Set EUROLITE LED DFE-50 + Softbag

svg
EUROLITE



EUROLITE Set EUROLITE LED DFE-50 + Softbag

No. 09000025
Set consisting of:
mpn51918527
1 x EUROLITE LED DFE-50 Beam flower effect
mpn30130500
1 x EUROLITE SB-10 Soft Bag
Features

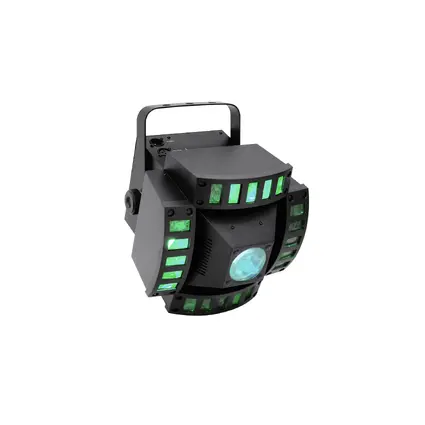

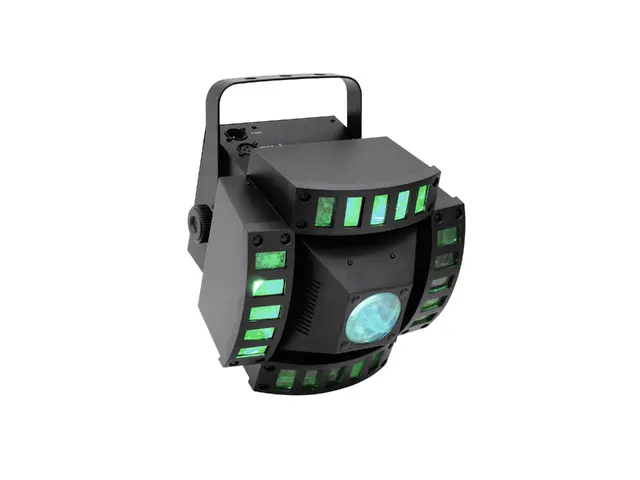

EUROLITE LED DFE-50 Beam flower effect

LED flower and matrix effect

  • DMX-controlled operation or stand-alone operation possible
  • DMX512 control via any standard DMX controller (occupies 6 channels)
  • Equipped with 2 x 9W TCL LEDs for the flower effect and 64 x 5mm LEDs in a Matrix
  • The Matrix consists of 40 patterns in RGBAW (16 red, 20 green, 12 blue, 12 amber and 4 white)
  • The centrally-mounted LEDs produce multicolored patterns and projections whereas the rotating four-sided beam-effect fills the room with colorful light rays
  • Each effect can be individually controlled via DMX
  • Sound control via built-in microphone
  • Microphone-sensitivity adjustable via rotary-control
  • Auto mode
  • Manual mode
  • Master/Slave function
  • Addressing and setting via DIP switches
  • Rugged housing in an eye-catching design
  • Ready for connection via enclosed IEC power cord with safety-plug
  • Feed-through output allows to power another device
  • After every 8 devices the fixtures must have a renewed connection with the power mains
  • Switch-mode power supply allows for automatic power supply adaption between 100 and 240 volts without power selector
  • Mounting bracket for installation on a truss system included
  • Preprogrammed in LED PC-Control 512

EUROLITE SB-10 Soft Bag

Black soft bag with divider, 330 x 330 x 355 mm

  • Practical transport bag offers enough space for several lighting effects and accessories
  • With divider
  • With Outside pocket
  • High-quality workmanship with nylon , black, water repellent
  • Interior with foam padding
  • 2 Rugged carrying handles

Package contents

  • 1 x bag
Technical specifications
Weight:4,12 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
EUROLITE LED DFE-50 Beam flower effect
Power supply:100-240 V AC, 50/60 Hz
Power consumption:35,00 W
Preprogrammed in:LED PC-Control 512
Dimensions:Width: 26 cm
Depth: 25,5 cm
Height: 28 cm
Weight:3,65 kg
DMX channels:6
DMX connection:3-pin XLR
Sound-control:via built-in microphone
LED type:9W TCL and 5 mm
LED number:2 x TCL; 64 x 5 mm (16R, 20G, 12B, 12A, 4W)
Dimensions (L x W x H):260 x 255 x 280 mm
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
EUROLITE SB-10 Soft Bag
Maximum load:25 kg
Carrying handle:2 pc/pcs
Material:Nylon
Color:Black, water repellent
Dimensions:Width: 33 cm
Depth: 37 cm
Height: 33 cm
Weight:0,47 kg
