FUTURELIGHT Set DMH-150 + Case

svg
svg
7 mm
FUTURELIGHT



FUTURELIGHT Set DMH-150 + Case

Item no. 09000010

Features

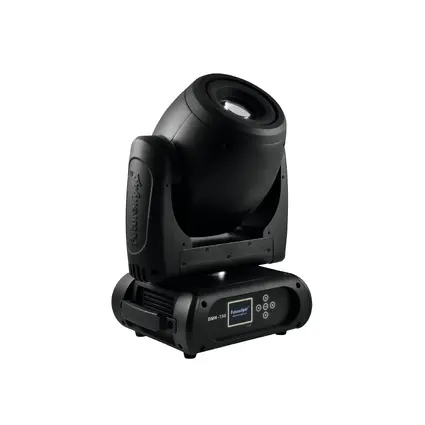

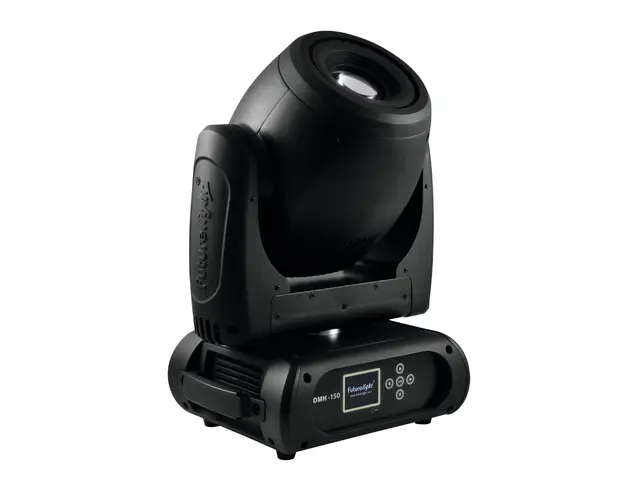

51841970 FUTURELIGHT DMH-150 LED Moving Head

High performance LED Moving Head with a 150 W COB LED

  • Equipped with a 150 W COB LED - comparable to a 575 W discharge lamp
  • With integrated wireless receiver for WDMX operation (Wireless Solution - made in Sweden)
  • Supports RDM (Remote Device Management)
  • 21, 23 or 24 DMX channels selectable (up to software version 1.1.00)
  • 14, 16, 21 or 24 DMX channels selectable (from software version 1.1.01)
  • Effect wheel with rotating 3-facet prism and 8-facet prism and frost filter
  • Color wheel with 8 different dichroic color filters plus white
  • Rainbow effect with adjustable speed in both directions
  • Gobo wheel with 7 rotating gobos plus open
  • All gobos can be interchanged
  • Slot-in gobo system for exchanging gobos without tools
  • With gobo shake function
  • Gobo wheel 2 with 7 static gobos plus open
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Motorized focus
  • Autofocus
  • Steplessly adjustable iris
  • Dimmer
  • Strobe effect with adjustable speed
  • Random strobe effect
  • Automatic position correction
  • PAN angle switchable between 540° and 630°
  • Sound-controlled via built-in microphone
  • Switch-mode power supply
  • Automatic power supply adaption between 100 and 240 Volts without power selector
  • Control board with graphic LCD display and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • The scenes can be modified via the Control Board or via an external controller and loaded into the memory
  • Number of scenes can be changed individually
  • Software upload by optional accessories via DMX link
  • Power connection via Neutrik PowerCon jack and included power cable
  • Feed-through output allows to power another device
  • After every 8 device the fixtures must have a renewed connection with the power mains
  • DMX control via every standard DMX controller
  • Control: Sound to light via Microphone

51836894 ROADINGER Flightcase 4x DMH-90/150/DMB-160/PLB-230

PRO flightcase for 4 x FUTURELIGHT DMH-90/DMH-150/DMB-60/DMB-160/PLB-230/EYE-15

  • Suitable for 4 units
  • Interior and cover upholstered with foam
  • High-quality workmanship with multiplex birch wood, dark brown laminated
  • Aluminum profile frames (30 mm) with rounded edges
  • Three-leg, medium-sized steel ball corners (chromium plated)
  • 4 castors, 2 of which with locking brakes
  • 2 high-quality butterfly locks
  • 8 high-quality plated case handles
  • For perfect protection
  • Transport aid: With wheels
  • Made in Europe
Technical specifications
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
51841970 FUTURELIGHT DMH-150 LED Moving Head
Power supply:100-240 V AC, 50/60 Hz
Power consumption:210 W
Beam angle:14°
Gobos:outside diameter 27mm
image diameter 22mm
DMX channels:21
Control:Sound to light via Microphone
Color:Black
Length:343 mm
Width:34,3 cm
Height:42,8 cm
Depth:25 cm
Weight:14,10 kg
DMX channels:21/23/24 (up to software version 1.1.00)
DMX channels:14/16/21/24 (from software version 1.1.01)
DMX connection:3-pin XLR
Sound-control:via built-in microphone
Wireless signal transmission:2.4 GHz (ISM)
LED type:Array 150 W
LED number:1
Beam angle:14°
Color-wheel:8 dichroic filters plus open
Static gobo-wheel:7 gobos and open
Rotating gobo-wheel:7 gobos and open
Outside diameter of the gobos:27 mm
Image diameter of the gobos:22 mm
Maximum PAN-movement:630°
Maximum TILT-movement:270°
Dimensions (L x W x H):343 x 250 x 428 mm
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
51836894 ROADINGER Flightcase 4x DMH-90/150/DMB-160/PLB-230
Maximum load:100 kg
Color:Dark brown laminated
Material:Birch multiplex 7 mm
Strength:7 mm
Width:102,5 cm
Height:72 cm
Depth:60,5 cm
Weight:41,90 kg
